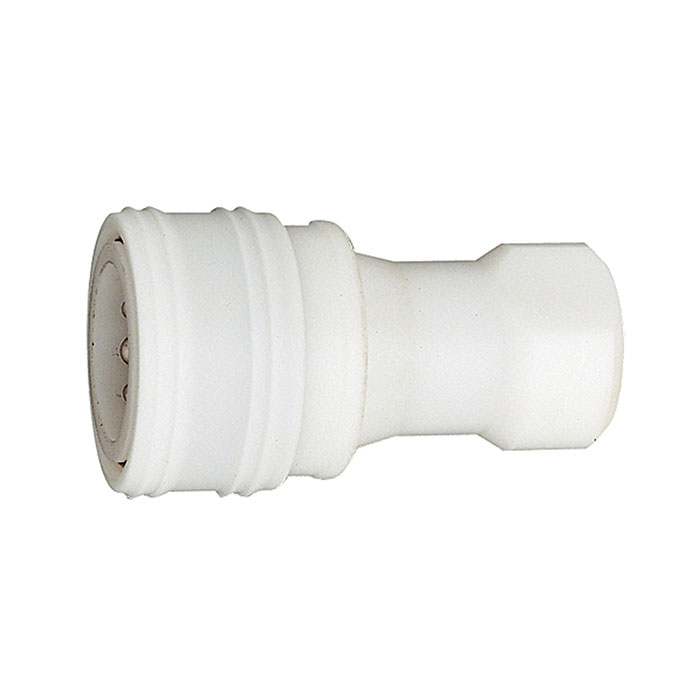

RIEGLER Hydraulic coupling locking on both sides, POM, G 1/2 IT, I.D. 11
Type number: 246.34
EAN: 4047322061407
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Hydraulic coupling, shut-off on both sides, POM, G 1/2 female thread, NW 11, max. operating pressure 10 bar, medium/ambient temp. -20 °C to 90 °C
| Housing | POM (Delrin), white |
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Max. operating pressure | 10 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 90 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 90 °C |
| Ball | stainless steel |
| Spring | stainless steel |
| Sleeve | POM (Delrin), white |
| Snap ring | stainless steel |
| Valve | Stainless steel 1.4305 |
| Operating pressure | Based on 50 °C medium temperature (static operating pressure) |
| Flow rate (air) | 1950 l/min |
| SW | 27 mm |
| NW | 11 |
| Length | 76 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/2 IG |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | FLEX |
