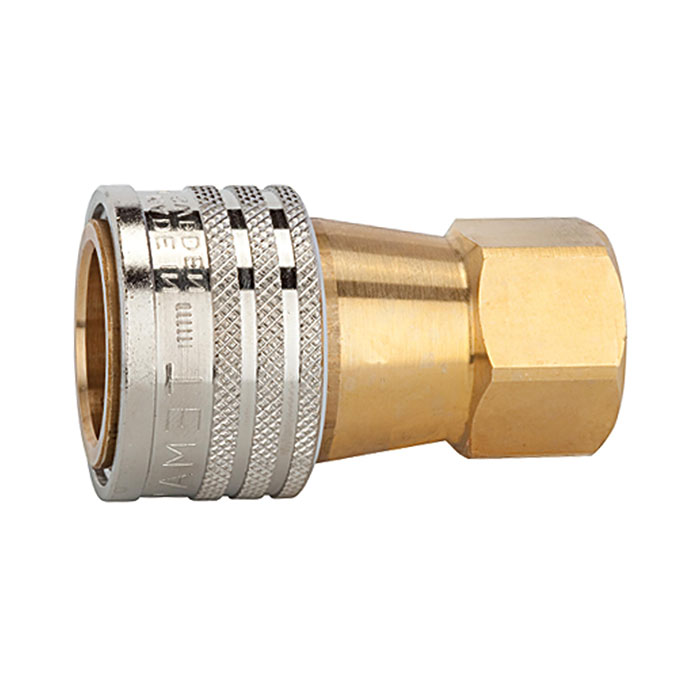

RIEGLER Hydraulic coupling, Series A, I.D. 13, Brass, G 1/2 IT
Type number: 242.01 A
EAN: 4047322056656
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Hydraulic coupling, Series A, NW 13, brass, G 1/2 female thread, operating pressure max. 250 bar, operating temp. -30 °C to 100 °C
| Housing | Brass |
| Sealing material | NBR |
| Max. operating pressure | 250 bar |
| Ball | stainless steel |
| Operating temperature min. | -30 °C |
| Operating temperature max. | 100 °C |
| Spring | stainless steel |
| Unlocking sleeve | Nickel-plated brass |
| Valve | Hard-drawn brass |
| SW | 27 mm |
| Length | 63 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/2 IG |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Flow rate (oil) | 30 l/min |
| Class name | FLEX |
