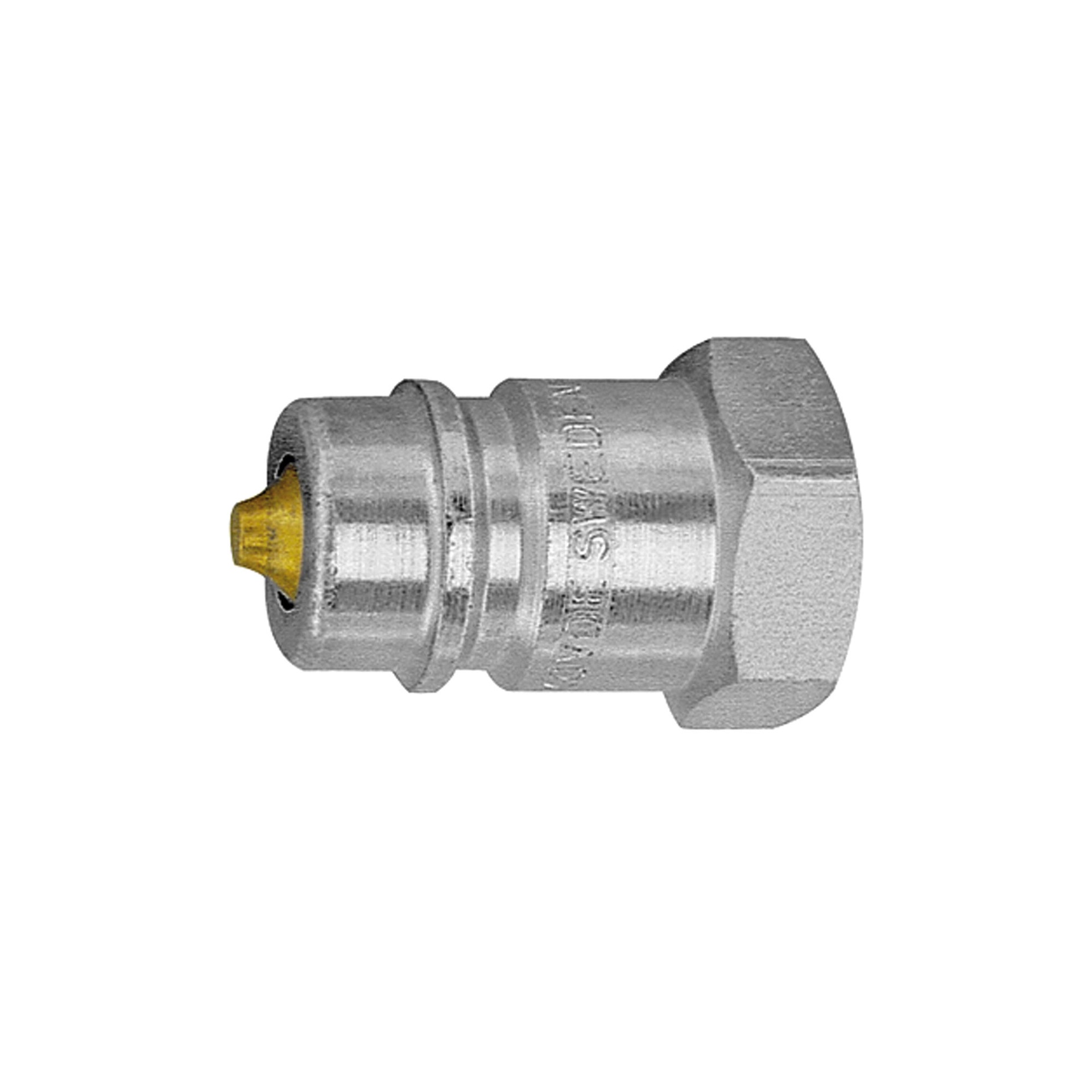

RIEGLER Plug nipple without pressure eliminator, Series A, I.D. 13
Type number: 242.51 A
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Barbed fitting without pressure eliminator made of brass, for compressed air supply, max. 250 bar - Type 242.51 A
The RIEGLER plug-in nipple without pressure eliminator, Series A, NW 13, G 1/2 female thread connects and disconnects compressed air hoses quickly and safely. The housing is made of brass with NBR seals. Designed for a maximum operating pressure of 250 bar. The operating temperature is between -30 °C and 100 °C. Connection thread G 1/2 IG - suitable for common industry standards. Quick coupling and uncoupling without tools.
Field of application
Typical areas of application: Workshop, production and mobile compressed air supply.
| Housing | Brass |
| Sealing material | NBR |
| Max. operating pressure | 250 bar |
| Ball | stainless steel |
| Operating temperature min. | -30 °C |
| Operating temperature max. | 100 °C |
| Spring | stainless steel |
| Unlocking sleeve | Nickel-plated brass |
| Valve | Hard-drawn brass |
| SW | 27 mm |
| Length | 41 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/2 IG |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
