RIEGLER GEKA threaded piece, rigid, Stainless steel, G 1 1/4 exterior
Type number: K 114 A-ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER GEKA threaded piece for compressed air supply, max. 40 bar, G 1 1/4 AG - type K 114 A-ES
The RIEGLER GEKA threaded fitting, rigid, stainless steel, G 1 1/4 external connects water and compressed air hoses according to the GEKA system. with FKM seals. Designed for a maximum operating pressure of 40 bar. The permissible medium temperature is between -10 °C and 150 °C. Connection thread G 1 1/4 AG - suitable for common industry standards. Proven system with universal compatibility.
Field of application
Typical areas of application: Garden, construction site, agriculture and industry.
| Sealing material | FKM |
| Max. operating pressure | 40 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 150 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 150 °C |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| Connection | G 1 1/4 AG |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[107830] RIEGLER GEKA threaded piece, rigid, Stainless steel, G 1/2 exterior](/web/image/product.template/191731/image_128/%5B107830%5D%20RIEGLER%20GEKA%20threaded%20piece%2C%20rigid%2C%20Stainless%20steel%2C%20G%201-2%20exterior?unique=f2fe377)
|
Type number: K 110 A-ES |
21.04 € | |
![[107832] RIEGLER GEKA threaded piece, rigid, Stainless steel, G 1 exterior](/web/image/product.template/191733/image_128/%5B107832%5D%20RIEGLER%20GEKA%20threaded%20piece%2C%20rigid%2C%20Stainless%20steel%2C%20G%201%20exterior?unique=8f3f921)
|
Type number: K 113 A-ES |
21.84 € | |

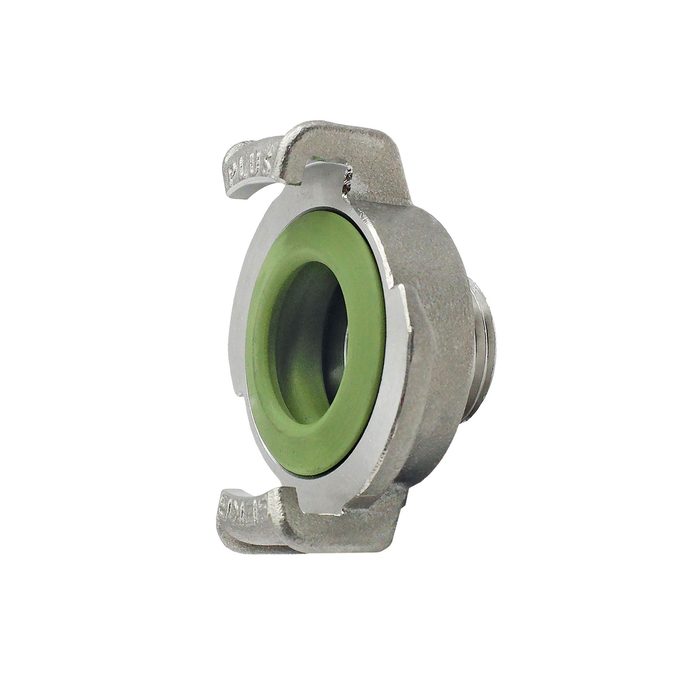

![[107831] RIEGLER GEKA threaded piece, rigid, Stainless steel, G 3/4 exterior](/web/image/product.template/191732/image_128/%5B107831%5D%20RIEGLER%20GEKA%20threaded%20piece%2C%20rigid%2C%20Stainless%20steel%2C%20G%203-4%20exterior?unique=e28059f)
|
