RIEGLER Jaw coupling with hose connection, I.D. 19 (3/4"), safety collar
Type number: KT 19 SB
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Claw coupling with hose connection made of malleable iron, galvanized and yellow passivated - type KT 19 SB
The RIEGLER claw coupling with hose connection, LW 19, with safety collar connects compressed air lines positively and robustly. The housing is made of galvanized malleable iron and yellow passivated with NBR seals. Designed for a maximum operating pressure of 10 bar. The operating temperature is between -40 °C and 95 °C. Form-fit connection for high loads.
Field of application
Typical areas of application: Compressor connections and stationary lines.
| Sealing material | NBR |
| Max. operating pressure | 10 bar |
| Material | Malleable iron galvanized and yellow passivated |
| Operating temperature min. | -40 °C |
| Operating temperature max. | 95 °C |
| Claw distance | 42 mm |
| DN | 15 |
| for inner hose Ø | 19 (3/4") |
| Safety collar | 45440 |
| L | 75.1 mm |
| H | 63 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[107848] RIEGLER Jaw coupling with hose connection, I.D. 13 (1/2"), safety collar](/web/image/product.template/191749/image_128/%5B107848%5D%20RIEGLER%20Jaw%20coupling%20with%20hose%20connection%2C%20I.D.%2013%20%281-2%22%29%2C%20safety%20collar?unique=f2c0924)
|
Type number: KT 13 SB |
5.70 € | |

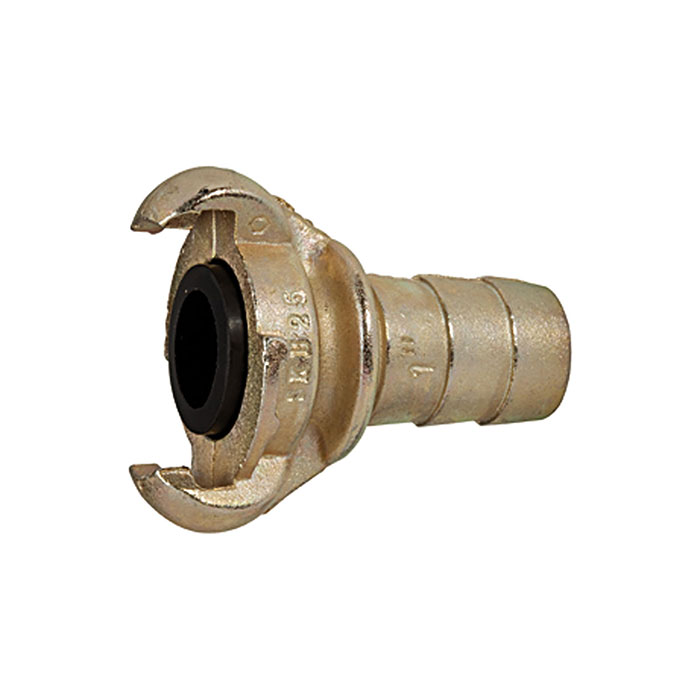

![[107850] RIEGLER Jaw coupling with hose connection, I.D. 25 (1"), safety collar](/web/image/product.template/191751/image_128/%5B107850%5D%20RIEGLER%20Jaw%20coupling%20with%20hose%20connection%2C%20I.D.%2025%20%281%22%29%2C%20safety%20collar?unique=1628096)
|
Type number: KT 25 SB |
6.89 € | |
