RIEGLER Jaw coupling with interior thread, G 3/4, DN 20
Type number: KI 34
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Claw coupling with female thread made of malleable iron, galvanized and yellow passivated - type KI 34
The RIEGLER claw coupling with female thread, G 3/4, DN 20 connects compressed air lines positively and robustly. The housing is made of galvanized malleable iron and yellow passivated with NBR seals. Designed for a maximum operating pressure of 10 bar. The operating temperature is between -40 °C and 95 °C. Connection thread G 3/4 - suitable for common industry standards. Form-fit connection for high loads.
Field of application
Typical areas of application: Compressor connections and stationary lines.
| Sealing material | NBR |
| Max. operating pressure | 10 bar |
| Material | Malleable iron galvanized and yellow passivated |
| Operating temperature min. | -40 °C |
| Operating temperature max. | 95 °C |
| Claw distance | 42 mm |
| Thread | G 3/4 |
| DN | 20 |
| SW | 32 mm |
| L | 38 mm |
| H | 63 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[107859] RIEGLER Jaw coupling with interior thread, G 1/2, DN 19](/web/image/product.template/191760/image_128/%5B107859%5D%20RIEGLER%20Jaw%20coupling%20with%20interior%20thread%2C%20G%201-2%2C%20DN%2019?unique=34eca09)
|
Type number: KI 12 |
5.99 € | |

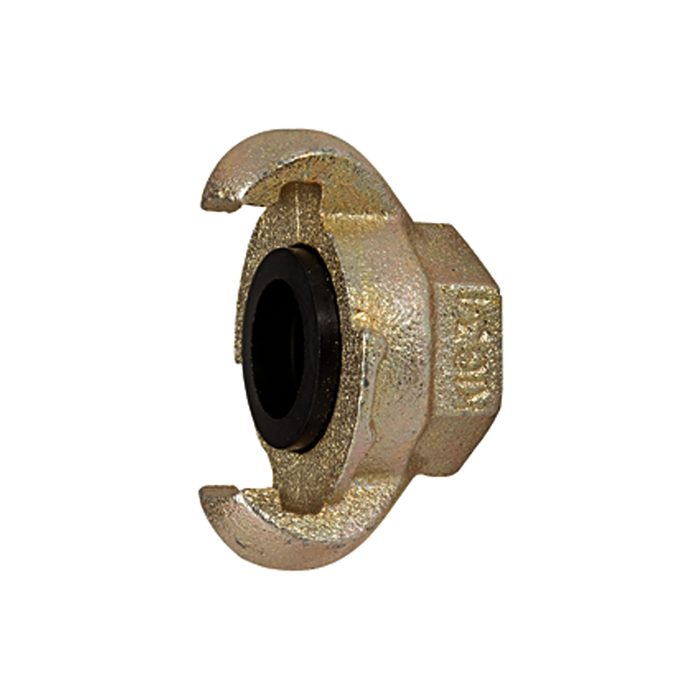

![[107861] RIEGLER Jaw coupling with interior thread, G 1, DN 20](/web/image/product.template/191762/image_128/%5B107861%5D%20RIEGLER%20Jaw%20coupling%20with%20interior%20thread%2C%20G%201%2C%20DN%2020?unique=efac3cf)
|
