RIEGLER Jaw coupling with interior thread, G 1/2, with brass seal
Type number: KI 12 M
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Claw coupling with female thread made of malleable iron, galvanized and yellow passivated - type KI 12 M
The RIEGLER claw coupling with female thread, G 1/2, with brass seal connects compressed air lines positively and robustly. The housing is made of malleable iron, zinc-plated and yellow passivated with NBR seals. Designed for a maximum operating pressure of 10 bar. The operating temperature is between -40 °C and 95 °C. Connection thread G 1/2 - suitable for common industry standards. Form-fit connection for high loads.
Field of application
Typical areas of application: Compressor connections and stationary lines.
| Sealing material | NBR |
| Max. operating pressure | 10 bar |
| Material | Malleable iron galvanized and yellow passivated |
| Operating temperature min. | -40 °C |
| Operating temperature max. | 95 °C |
| Claw distance | 42 mm |
| Thread | G 1/2 |
| DN | 17 |
| SW | 32 mm |
| L | 51.9 mm |
| H | 63 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

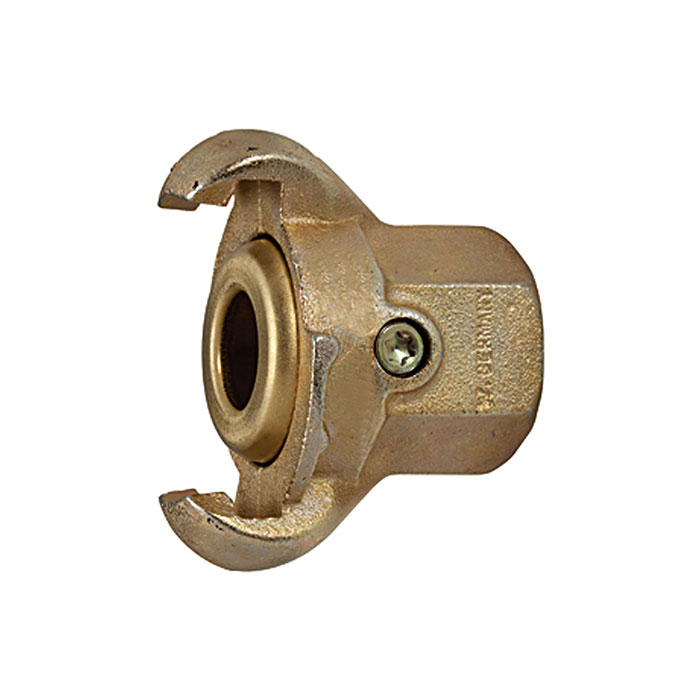

![[107864] RIEGLER Jaw coupling with interior thread, G 1, with brass seal](/web/image/product.template/191765/image_128/%5B107864%5D%20RIEGLER%20Jaw%20coupling%20with%20interior%20thread%2C%20G%201%2C%20with%20brass%20seal?unique=752fd77)
|
