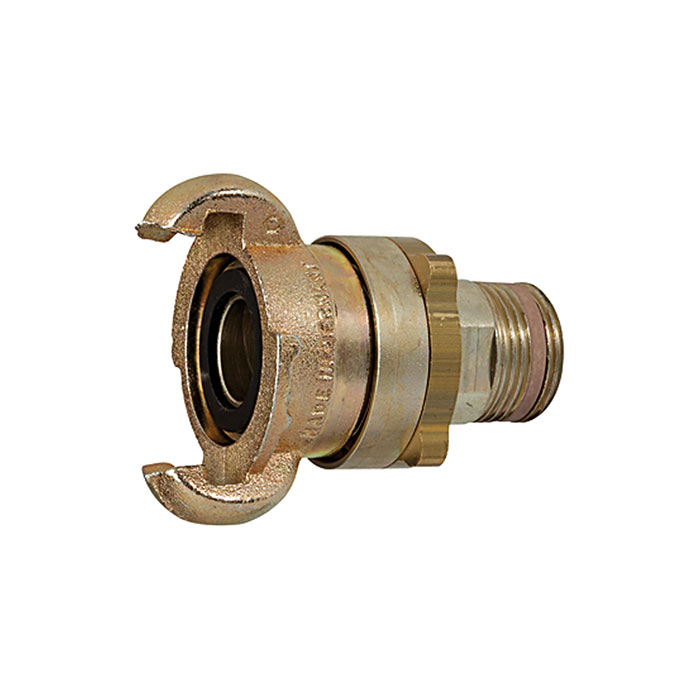

RIEGLER Safety jaw coupling with exterior thread, R 1, DN 17
Type number: KA 01 S
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Safety claw coupling with male thread made of malleable cast iron, for compressed air supply - type KA 01 S
The RIEGLER safety claw coupling with male thread, R 1, DN 17 connects compressed air lines positively and robustly. The housing is made of malleable cast iron with NBR seals. Designed for a maximum operating pressure of 16 bar. The operating temperature is between -40 °C and 95 °C. Connection thread R 1 - suitable for common industry standards. Form-fit connection for high loads.
Field of application
Typical areas of application: Compressor connections and stationary lines.
| Sealing material | NBR |
| Max. operating pressure | 16 bar |
| Material | Malleable iron |
| Operating temperature min. | -40 °C |
| Operating temperature max. | 95 °C |
| Claw distance | 42 mm |
| Thread | R 1 |
| DN | 17 |
| SW | 36 mm |
| L | 82.2 mm |
| H | 63 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Theme shop | SAFETY |
| Class name | FLEX |
