RIEGLER Safety jaw coupling, I.D. 19 (3/4"), with safety collar
Type number: KT 19 SBS
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Safety claw coupling with hose connection, LW 19 (3/4"), safety collar, malleable cast iron, PN max. 16 bar, temp. -40 °C to 95 °C
| Sealing material | NBR |
| Max. operating pressure | 16 bar |
| Material | Malleable iron |
| Operating temperature min. | -40 °C |
| Operating temperature max. | 95 °C |
| Claw distance | 42 mm |
| DN | 15 |
| for inner hose Ø | 19 (3/4") |
| Safety collar | 34 |
| L | 99.4 mm |
| H | 63 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Theme shop | SAFETY |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

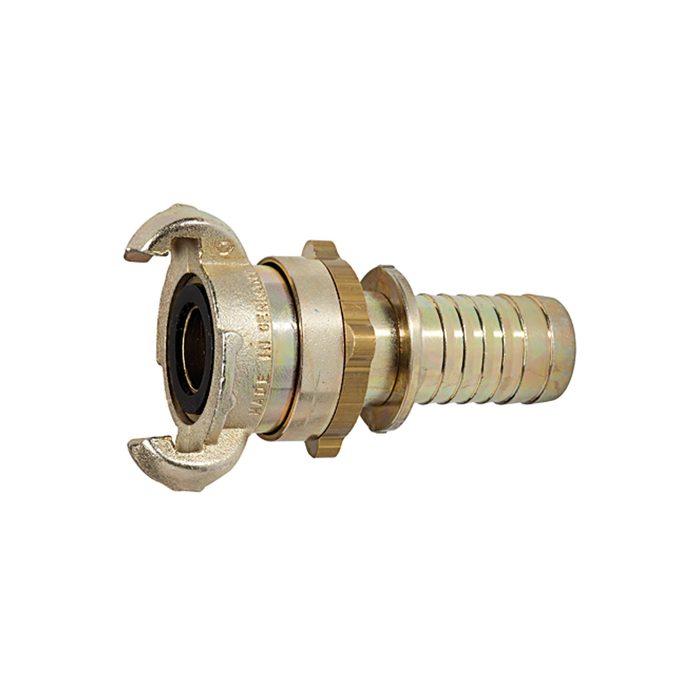

![[107886] RIEGLER Safety jaw coupling, I.D. 13 (1/2"), with safety collar](/web/image/product.template/191787/image_128/%5B107886%5D%20RIEGLER%20Safety%20jaw%20coupling%2C%20I.D.%2013%20%281-2%22%29%2C%20with%20safety%20collar?unique=56deb3a)
|
Type number: KT 13 SBS |
22.09 € | |
![[107888] RIEGLER Safety jaw coupling, I.D. 25 (1"), with safety collar](/web/image/product.template/191789/image_128/%5B107888%5D%20RIEGLER%20Safety%20jaw%20coupling%2C%20I.D.%2025%20%281%22%29%2C%20with%20safety%20collar?unique=b5c63c6)
|
Type number: KT 25 SBS |
22.09 € | |
