RIEGLER Hose clamp, 2-part, Clamping range 17 - 22 mm, I.D. 13 (1/2")
Type number: SL 22
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Hose clamp for compressed air supply - type SL 22
The RIEGLER hose clamp, 2-piece, malleable cast iron, Spannber. 17-22, LW 13 (1/2) connects compressed air lines positively and robustly. Positive connection for high loads.
Field of application
Typical areas of application: Compressor connections and stationary lines.
| Operating temperature max. | 0 °C |
| for inner hose Ø | 13 (1/2") |
| Clamping range min. | 17 mm |
| Clamping range max. | 22 mm |
| L | 60 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[107897] RIEGLER Hose clamp, 2-part, Clamping range 22 - 29 mm, I.D. 13 (1/2")](/web/image/product.template/191798/image_128/%5B107897%5D%20RIEGLER%20Hose%20clamp%2C%202-part%2C%20Clamping%20range%2022%20-%2029%20mm%2C%20I.D.%2013%20%281-2%22%29?unique=ec75fb7)
|
Type number: SL 29 |
2.73 € | |
![[107898] RIEGLER Hose clamp, 2-part, Clamping range 28 - 34 mm, I.D. 19 (3/4")](/web/image/product.template/191799/image_128/%5B107898%5D%20RIEGLER%20Hose%20clamp%2C%202-part%2C%20Clamping%20range%2028%20-%2034%20mm%2C%20I.D.%2019%20%283-4%22%29?unique=ccaf90d)
|
Type number: SL 34 |
2.73 € | |
![[107899] RIEGLER Hose clamp, 2-part, Clamping range 32 - 40 mm, I.D. 25 (1")](/web/image/product.template/191800/image_128/%5B107899%5D%20RIEGLER%20Hose%20clamp%2C%202-part%2C%20Clamping%20range%2032%20-%2040%20mm%2C%20I.D.%2025%20%281%22%29?unique=eaeb884)
|
Type number: SL 40 |
3.70 € | |
![[107900] RIEGLER Hose clamp, 2-part, Clamping range 39 - 49 mm, I.D. 32 (1 1/4")](/web/image/product.template/191801/image_128/%5B107900%5D%20RIEGLER%20Hose%20clamp%2C%202-part%2C%20Clamping%20range%2039%20-%2049%20mm%2C%20I.D.%2032%20%281%201-4%22%29?unique=d9dbcad)
|
Type number: SL 49 |
4.82 € | |
![[107901] RIEGLER Hose clamp, 2-part, Clamping range 48 - 60 mm, I.D. 38 (1 1/2")](/web/image/product.template/191802/image_128/%5B107901%5D%20RIEGLER%20Hose%20clamp%2C%202-part%2C%20Clamping%20range%2048%20-%2060%20mm%2C%20I.D.%2038%20%281%201-2%22%29?unique=ae63822)
|
Type number: SL 60 |
5.66 € | |

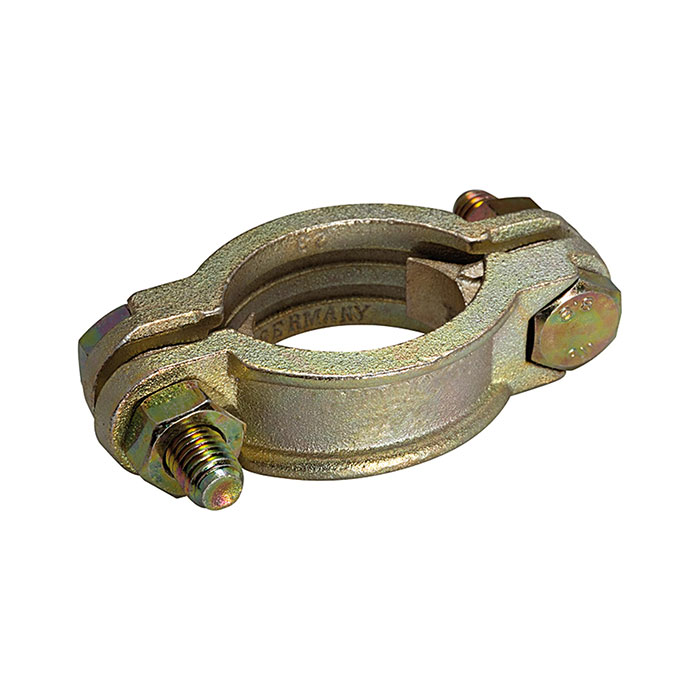

![[107902] RIEGLER Hose clamp, 2-part, Clamping range 56 - 72 mm, I.D. 50 (2")](/web/image/product.template/191803/image_128/%5B107902%5D%20RIEGLER%20Hose%20clamp%2C%202-part%2C%20Clamping%20range%2056%20-%2072%20mm%2C%20I.D.%2050%20%282%22%29?unique=541a8ac)
|
