RIEGLER Tempered plug-in nipple DN 6, Exterior thread, M8x0.75, AF 11
Type number: 270.610
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Temperature control plug-in nipple made of brass 2.0401, for compressed air supply, max. 15 bar - Type 270.610
The RIEGLER temperature control plug-in nipple DN 6 with external thread, M8x0.75, SW 11 connects temperature control circuits quickly and drip-free. The housing is made of brass 2.0401 with seals made of FKM (PTFE-coated). Designed for a maximum operating pressure of 15 bar. The permissible medium temperature is between -20 °C and 160 °C. Connection thread M8x0.75 - suitable for common industry standards. Suitable for air, water, oil, vacuum. Drip-free separation for a clean working environment.
Field of application
Typical areas of application: Toolmaking and injection molding technology.
| Medium | Air, water, oil, vacuum |
| Sealing material | FKM (PTFE-coated) |
| Max. operating pressure | 15 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 160 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 160 °C |
| Material | Brass 2.0401 |
| Ball | Stainless steel |
| Spring | Stainless steel |
| Snap ring | Stainless steel |
| Thread | M8x0.75 |
| SW | 11 mm |
| Length | 24 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[107935] RIEGLER Tempered plug-in nipple DN 6, Exterior thread, G 1/4, AF 15](/web/image/product.template/191836/image_128/%5B107935%5D%20RIEGLER%20Tempered%20plug-in%20nipple%20DN%206%2C%20Exterior%20thread%2C%20G%201-4%2C%20AF%2015?unique=9677566)
|
Type number: 270.614 |
1.14 € | |
![[107934] RIEGLER Tempered plug-in nipple DN 6, Exterior thread, G 1/8, AF 11](/web/image/product.template/191835/image_128/%5B107934%5D%20RIEGLER%20Tempered%20plug-in%20nipple%20DN%206%2C%20Exterior%20thread%2C%20G%201-8%2C%20AF%2011?unique=001301b)
|
Type number: 270.613 |
1.00 € | |
![[107932] RIEGLER Tempered plug-in nipple DN 6, Exterior thread, M10x1, AF 11](/web/image/product.template/191833/image_128/%5B107932%5D%20RIEGLER%20Tempered%20plug-in%20nipple%20DN%206%2C%20Exterior%20thread%2C%20M10x1%2C%20AF%2011?unique=b281bd5)
|
Type number: 270.611 |
1.00 € | |

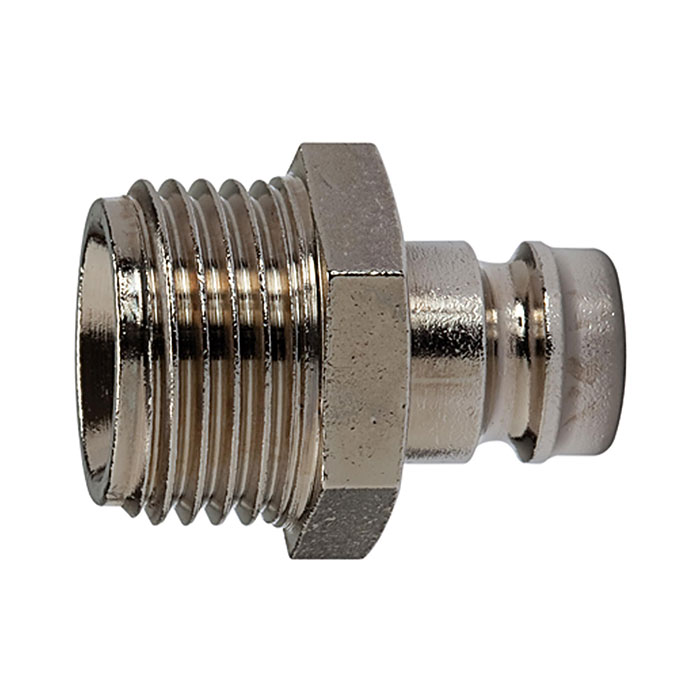

![[107933] RIEGLER Tempered plug-in nipple DN 6, Exterior thread, M14x1.5, AF 15](/web/image/product.template/191834/image_128/%5B107933%5D%20RIEGLER%20Tempered%20plug-in%20nipple%20DN%206%2C%20Exterior%20thread%2C%20M14x1.5%2C%20AF%2015?unique=0b78869)
|
