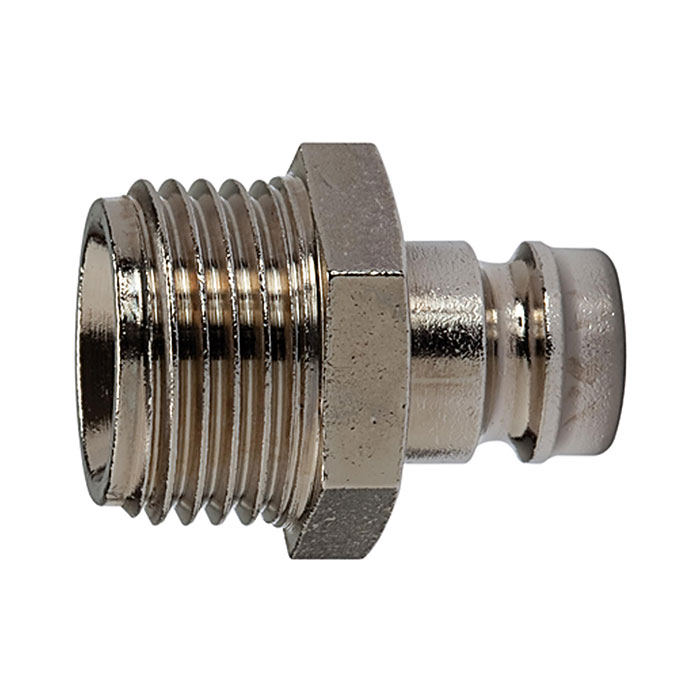

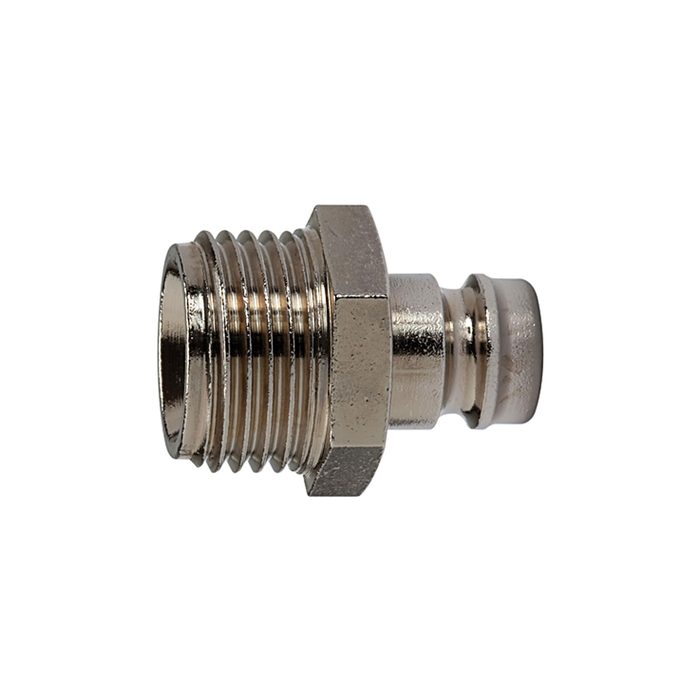

RIEGLER Tempered plug-in nipple DN 6, with blocking valve, ET, M14x1.5
RIEGLER Tempered plug-in nipple DN 6, with blocking valve, ET, M14x1.5
4.91 € 4.91 €

RIEGLER Tempered plug-in nipple DN 6, with blocking valve, ET, G 1/4

https://www.filcom-technik.de/web/image/product.template/191838/image_1920?unique=f7c5d49

Type number: 270.624

EAN: 4047322258302

5.25 € 5.25 EUR 5.25 € VAT Included

8.17 € VAT Included


  • Brand

This combination does not exist.

from 110 € free shipping Details shipping costs

Riegler

Riegler

RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.


Product no. :

107937

EAN :

4047322258302

Weight :

0.01 kg

Temperature control plug-in nipple DN 6, with shut-off valve, male, MS nickel-plated, G 1/4, PN max. 15 bar, medium/ambient temp. -20 °C to 160 °C

Medium Air, water, oil, vacuum
Sealing material FKM (PTFE-coated)
Max. operating pressure 15 bar
Medium temperature min. -20 °C
Medium temperature max. 160 °C
Ambient temperature min. -20 °C
Ambient temperature max. 160 °C
Material Nickel-plated brass
Ball Stainless steel
Spring Stainless steel
Snap ring Stainless steel
Thread G 1/4
SW 15 mm
Length 29 mm
REACH SVHC1 Substance Name Lead
CAS No. SVHC 1 7439-92-1
RoHS material information RoHS compliant
RoHS Directive 2011/65/EU, 2015/863/EU, 2018/741/EU
RoHS Article of the Directive Article 4, paragraph 1, Annex 3
Share of SVHC substance in % for RoHS 0.04
Exception 6c
REACH Info contains SVHC substance
Share of SVHC SCIP >= 1.0% w/w and < 10.0% w/w
Proportion of SVHC substance in SCIP >= 0.1 % in w/w
Material identification CW617N
Class name FLEX
