RIEGLER Plug nipple pipe DN 6, Brass 2.0401, Pipe exterior Ø 10 mm, AF 11
Type number: 270.706
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Plug-in nipple pipe made of brass 2.0401, for compressed air supply, max. 15 bar - Type 270.706
The RIEGLER plug-in nipple pipe DN 6, outer pipe Ø 10 mm, SW 11, length 240 mm connects temperature control circuits quickly and drip-free. The housing is made of brass 2.0401 with FKM seals (PTFE-coated). Designed for a maximum operating pressure of 15 bar. The permissible medium temperature is between -20 °C and 160 °C. Suitable for air, water, oil, vacuum. Drip-free separation for a clean working environment.
Field of application
Typical areas of application: Toolmaking and injection molding technology.
| Medium | Air, water, oil, vacuum |
| Sealing material | FKM (PTFE-coated) |
| Max. operating pressure | 15 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 160 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 160 °C |
| Material | Brass 2.0401 |
| Ball | Stainless steel |
| Spring | Stainless steel |
| Snap ring | Stainless steel |
| SW | 11 mm |
| Tube outer Ø | 10 mm |
| Length | 240 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

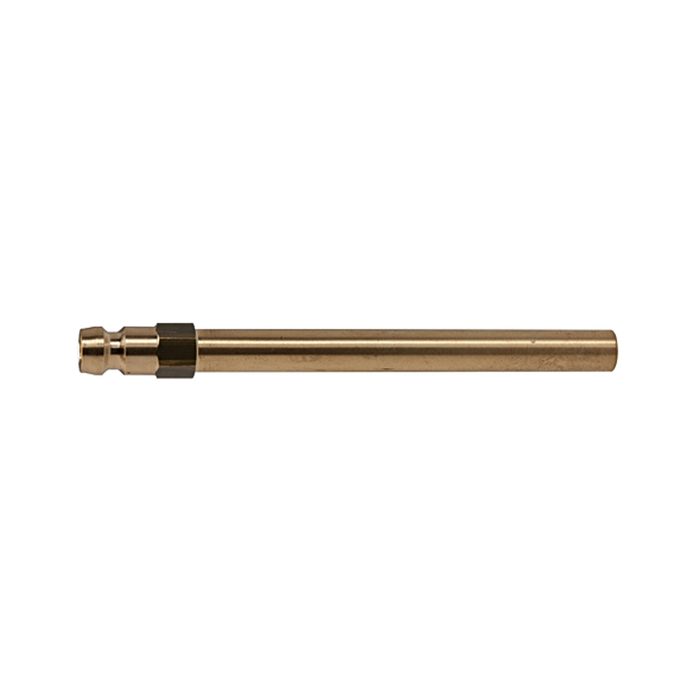

![[107938] RIEGLER Plug nipple pipe DN 5, Brass 2.0401, Pipe exterior Ø 8 mm, AF 9](/web/image/product.template/191839/image_128/%5B107938%5D%20RIEGLER%20Plug%20nipple%20pipe%20DN%205%2C%20Brass%202.0401%2C%20Pipe%20exterior%20%C3%98%208%20mm%2C%20AF%209?unique=7e8263f)
|
