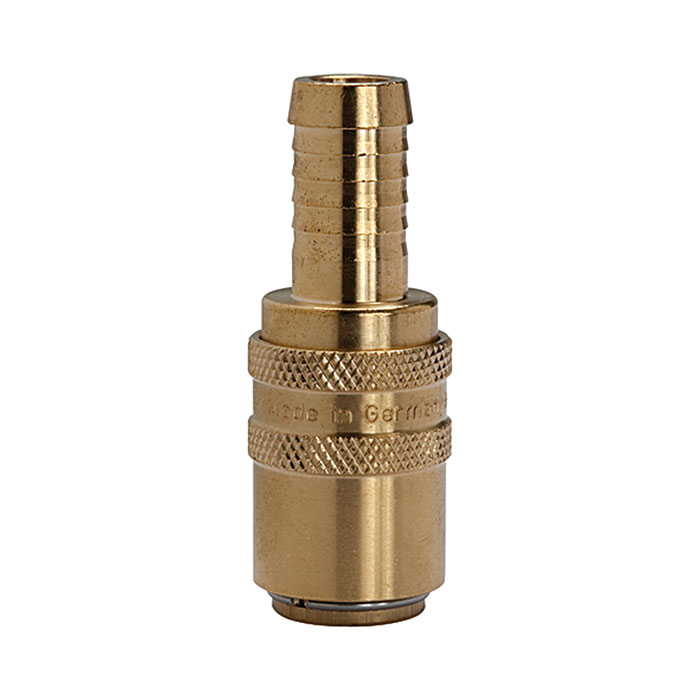

RIEGLER Tempered coupl. DN 9, Taps 13 mm, Blocking valve, Sleeve straight
Type number: 280.01
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Temperature control coupling made of brass 2.0401, for compressed air supply, max. 15 bar - Type 280.01
The RIEGLER temperature control coupling DN 9, spigot 13 mm, shut-off valve, straight spout connects temperature control circuits quickly and drip-free. The housing is made of brass 2.0401 with seals made of FKM (PTFE-coated). Designed for a maximum operating pressure of 15 bar. The permissible medium temperature is between -20 °C and 160 °C. Suitable for air, water, oil, vacuum. Hose connection 13 mm. Drip-free separation for a clean working environment.
Field of application
Typical areas of application: Toolmaking and injection molding technology.
| Medium | Air, water, oil, vacuum |
| Sealing material | FKM (PTFE-coated) |
| Max. operating pressure | 15 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 160 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 160 °C |
| Material | Brass 2.0401 |
| Ball | Stainless steel |
| Spring | Stainless steel |
| Snap ring | Stainless steel |
| Length | 61.5 mm |
| Hose nozzle version | straight |
| Hose connection | 13 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[107954] RIEGLER Tempered coupling DN 9, Taps 13 mm, Blocking valve, Sleeve 45°](/web/image/product.template/191855/image_128/%5B107954%5D%20RIEGLER%20Tempered%20coupling%20DN%209%2C%20Taps%2013%20mm%2C%20Blocking%20valve%2C%20Sleeve%2045%C2%B0?unique=e9bf570)
|
Type number: 280.02 |
16.91 € | |

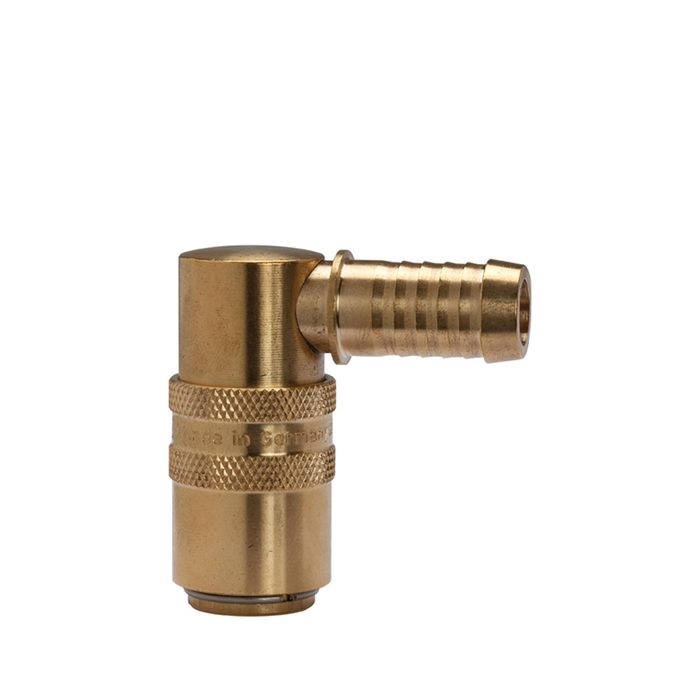

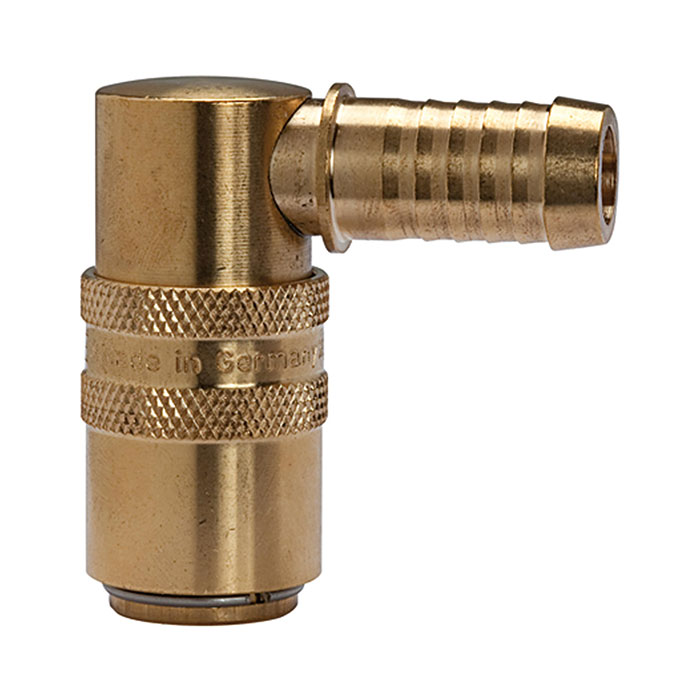

![[107955] RIEGLER Tempered coupling DN 9, Taps 13 mm, Blocking valve, Sleeve 90°](/web/image/product.template/191856/image_128/%5B107955%5D%20RIEGLER%20Tempered%20coupling%20DN%209%2C%20Taps%2013%20mm%2C%20Blocking%20valve%2C%20Sleeve%2090%C2%B0?unique=767a186)
|
Type number: 280.03 |
16.91 € | |
