RIEGLER Tempered coupling DN 9, Exterior thread, Brass, M16x1.5 straight
Type number: 280.31
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Temperature control coupling made of brass 2.0401, for compressed air supply, max. 15 bar - Type 280.31
The RIEGLER temperature control coupling DN 9 with male thread connection, M16x1.5 straight connects temperature control circuits quickly and drip-free. The housing is made of brass 2.0401 with seals made of FKM (PTFE-coated). Designed for a maximum operating pressure of 15 bar. The permissible medium temperature is between -20 °C and 160 °C. Suitable for air, water, oil, vacuum. Drip-free separation for a clean working environment.
Field of application
Typical areas of application: Toolmaking and injection molding technology.
| Medium | Air, water, oil, vacuum |
| Connection thread | M16x1.5 straight |
| Sealing material | FKM (PTFE-coated) |
| Max. operating pressure | 15 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 160 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 160 °C |
| Material | Brass 2.0401 |
| Ball | Stainless steel |
| Spring | Stainless steel |
| Snap ring | Stainless steel |
| SW | 22 mm |
| Length | 52 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

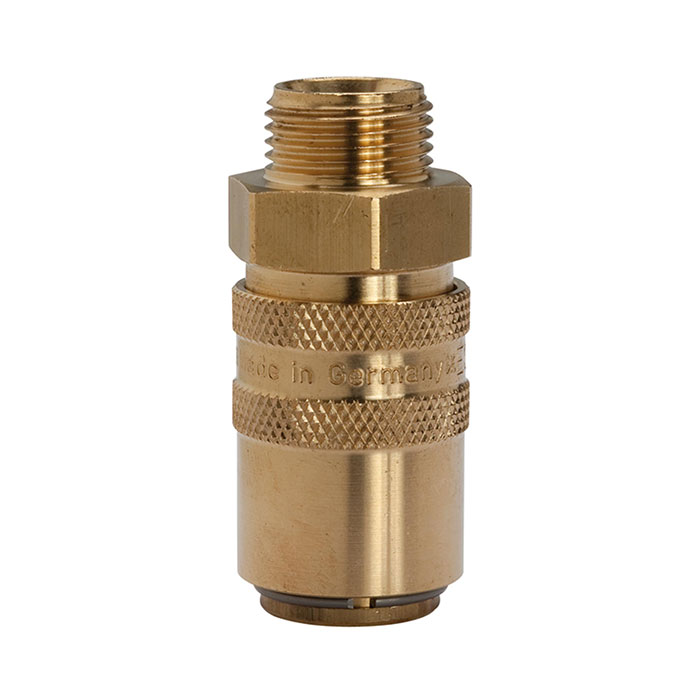

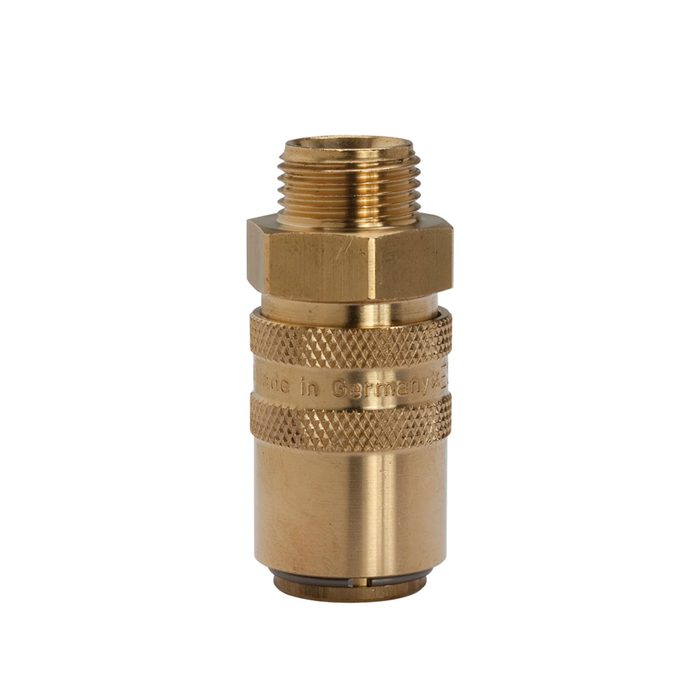

![[107968] RIEGLER Tempered coupling DN 9, Exterior thread, Brass, G 1/2 straight](/web/image/product.template/191869/image_128/%5B107968%5D%20RIEGLER%20Tempered%20coupling%20DN%209%2C%20Exterior%20thread%2C%20Brass%2C%20G%201-2%20straight?unique=4fed49c)
|
Type number: 280.33 |
15.42 € | |

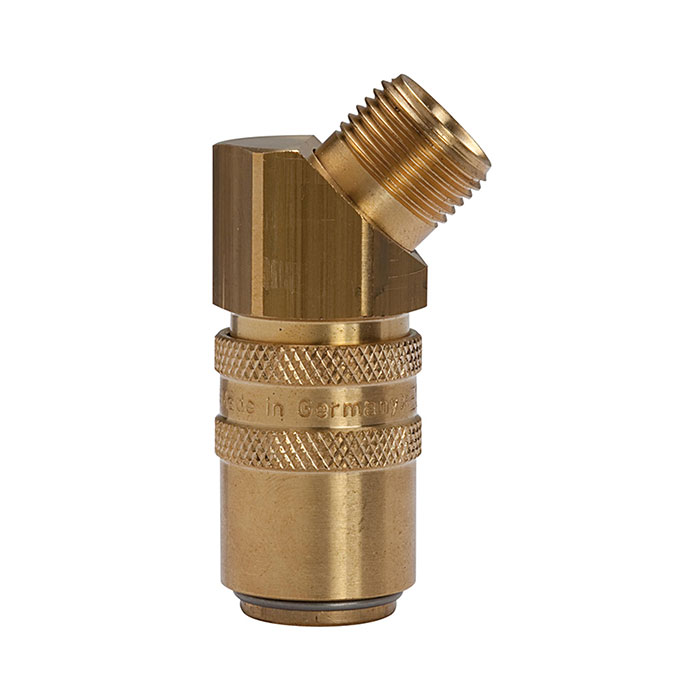

![[107969] RIEGLER Tempered coupling DN 9, Exterior thread, Brass, G 3/8 45°](/web/image/product.template/191870/image_128/%5B107969%5D%20RIEGLER%20Tempered%20coupling%20DN%209%2C%20Exterior%20thread%2C%20Brass%2C%20G%203-8%2045%C2%B0?unique=d4d948c)
|
Type number: 280.34 |
18.72 € | |
![[107971] RIEGLER Tempered coupling DN 9, Exterior thread, Brass, G 3/8 90°](/web/image/product.template/191872/image_128/%5B107971%5D%20RIEGLER%20Tempered%20coupling%20DN%209%2C%20Exterior%20thread%2C%20Brass%2C%20G%203-8%2090%C2%B0?unique=960266e)
|
Type number: 280.36 |
18.72 € | |
![[107967] RIEGLER Tempered coupling DN 9, Exterior thread, Brass, G 3/8 straight](/web/image/product.template/191868/image_128/%5B107967%5D%20RIEGLER%20Tempered%20coupling%20DN%209%2C%20Exterior%20thread%2C%20Brass%2C%20G%203-8%20straight?unique=b5b6fd7)
|
Type number: 280.32 |
13.84 € | |
![[107970] RIEGLER Tempered coupling DN 9, Exterior thread, Brass, M16x1.5 45°](/web/image/product.template/191871/image_128/%5B107970%5D%20RIEGLER%20Tempered%20coupling%20DN%209%2C%20Exterior%20thread%2C%20Brass%2C%20M16x1.5%2045%C2%B0?unique=a614440)
|
Type number: 280.35 |
18.72 € | |

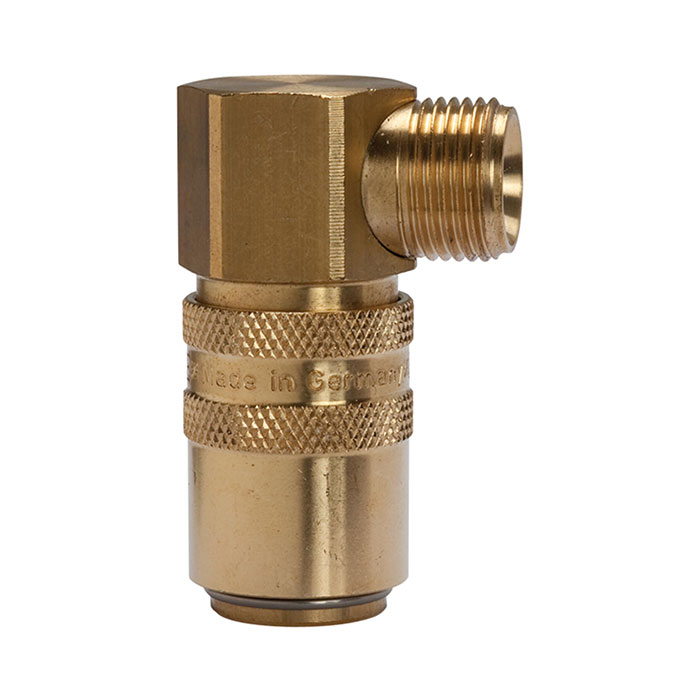

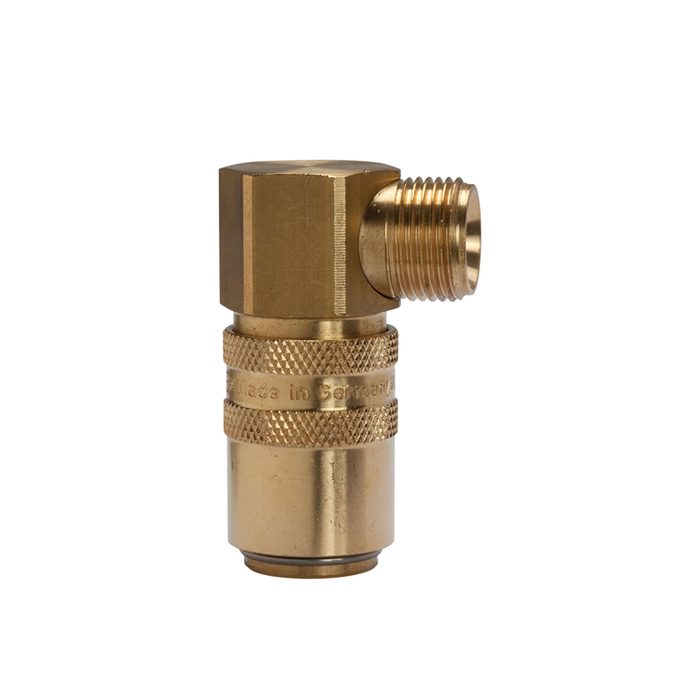

![[107972] RIEGLER Tempered coupling DN 9, Exterior thread, Brass, M16x1.5 90°](/web/image/product.template/191873/image_128/%5B107972%5D%20RIEGLER%20Tempered%20coupling%20DN%209%2C%20Exterior%20thread%2C%20Brass%2C%20M16x1.5%2090%C2%B0?unique=6761d1b)
|
Type number: 280.37 |
18.72 € | |
