RIEGLER Plug nipple pipe DN 9, Brass 2.0401, Pipe exterior Ø 14 mm, AF 15

Price:

5.02 €

RIEGLER Plug nipple pipe DN 6, Brass 2.0401, Pipe exterior Ø 10 mm, AF 11
RIEGLER Plug nipple pipe DN 6, Brass 2.0401, Pipe exterior Ø 10 mm, AF 11
3.17 € 3.17 €
RIEGLER Plug nipple pipe DN 9, Brass 2.0401, Pipe exterior Ø 14 mm, AF 15
RIEGLER Plug nipple pipe DN 9, Brass 2.0401, Pipe exterior Ø 14 mm, AF 15
16.29 € 16.29 €

RIEGLER Plug nipple pipe DN 9, Brass 2.0401, Pipe exterior Ø 14 mm, AF 15

https://www.filcom-technik.de/web/image/product.template/191887/image_1920?unique=e6bc9d3

Type number: 280.701

EAN: 4047322259293

5.02 € 5.0200000000000005 EUR 5.02 € VAT Included

7.81 € VAT Included


  • Brand

This combination does not exist.

from 110 € free shipping Details shipping costs

Riegler

Riegler

RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.


Product no. :

107986

EAN :

4047322259293

Weight :

0.11 kg

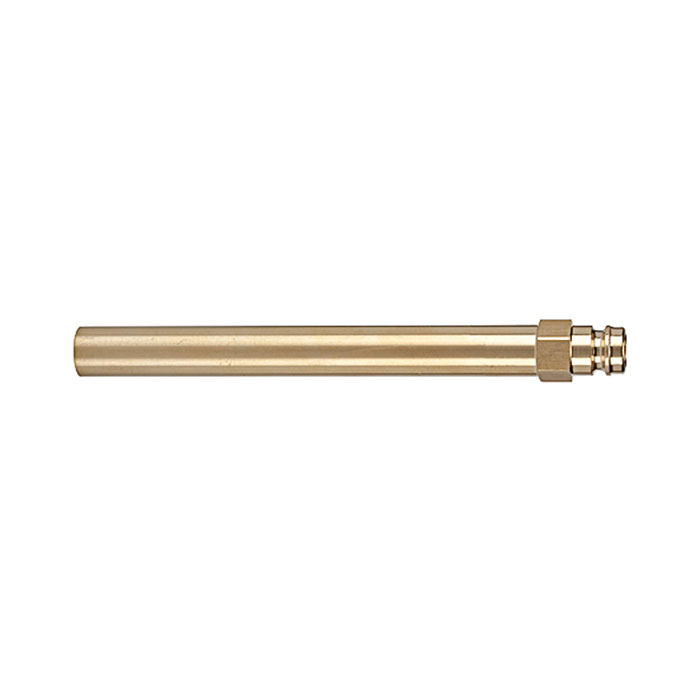

Push-in nipple pipe DN 9, brass 2.0401, outer pipe Ø 14 mm, L=150 mm, SW15, PN max. 15 bar, medium/ambient temp. -20°C to 160°C

Medium Air, water, oil, vacuum
Sealing material FKM (PTFE-coated)
Max. operating pressure 15 bar
Medium temperature min. -20 °C
Medium temperature max. 160 °C
Ambient temperature min. -20 °C
Ambient temperature max. 160 °C
Material Brass 2.0401
Ball Stainless steel
Spring Stainless steel
Snap ring Stainless steel
SW 15 mm
Tube outer Ø 14 mm
Length 150 mm
REACH SVHC1 Substance Name Lead
CAS No. SVHC 1 7439-92-1
RoHS material information RoHS compliant
RoHS Directive 2011/65/EU, 2015/863/EU, 2018/741/EU
RoHS Article of the Directive Article 4, paragraph 1, Annex 3
Share of SVHC substance in % for RoHS 0.04
Exception 6c
REACH Info contains SVHC substance
Share of SVHC SCIP >= 1.0% w/w and < 10.0% w/w
Proportion of SVHC substance in SCIP >= 0.1 % in w/w
Material identification CW617N
Class name FLEX
