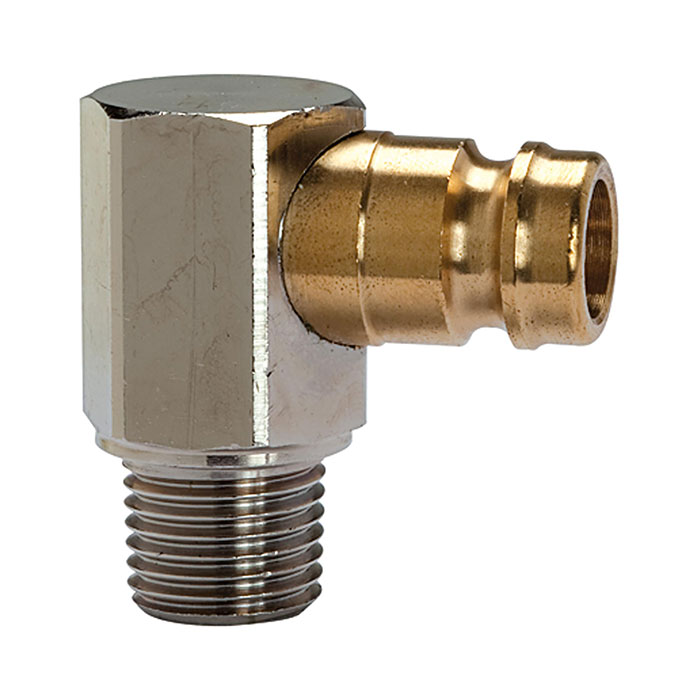

RIEGLER Tempered plug-in nipple DN 9, 90°, Exterior thread, R 3/8

Type number: 280.806

4.93 € 4.93 EUR 4.93 € VAT Included

6.90 € VAT Included

Brand

This combination does not exist.

Add to Cart

from 110 € free shipping Details shipping costs

Riegler

RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.

Product no. :

107990

EAN :

4047322259330

Category :

Temperature Control Couplings

Weight :

0.04 kg

Description
Specifications

Tempered plug-in nipple DN 9, 90°, Exterior thread, nickel-plated brass, R 3/8, Operating pressure max. 15 bar

Medium	Air, water, oil, vacuum
Sealing material	FKM (PTFE-coated)
Max. operating pressure	15 bar
Medium temperature min.	-20 °C
Medium temperature max.	160 °C
Ambient temperature min.	-20 °C
Ambient temperature max.	160 °C
Material	Nickel-plated brass
Ball	Stainless steel
Spring	Stainless steel
Snap ring	Stainless steel
Thread	R 3/8
SW	17 mm
Length	35 mm
REACH SVHC1 Substance Name	Lead
CAS No. SVHC 1	7439-92-1
RoHS material information	RoHS compliant
RoHS Directive	2011/65/EU, 2015/863/EU, 2018/741/EU
RoHS Article of the Directive	Article 4, paragraph 1, Annex 3
Share of SVHC substance in % for RoHS	0.04
Exception	6c
REACH Info	contains SVHC substance
Share of SVHC SCIP	>= 1.0% w/w and < 10.0% w/w
Proportion of SVHC substance in SCIP	>= 0.1 % in w/w
Material identification	CW617N
Class name	FLEX

Variants / Alternatives

Product		Price
	[107988] RIEGLER Tempered plug-in nipple DN 9, 90°, Exterior thread, M14x1.5 Type number: 280.803	4.30 €	Add to cart

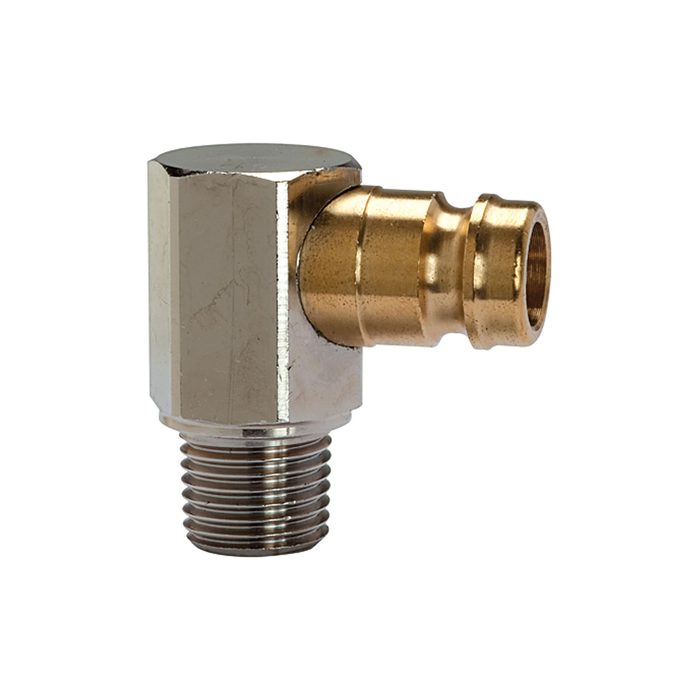

	[107989] RIEGLER Tempered plug-in nipple DN 9, 90°, Exterior thread, R 1/4 Type number: 280.805	4.51 €	Add to cart
