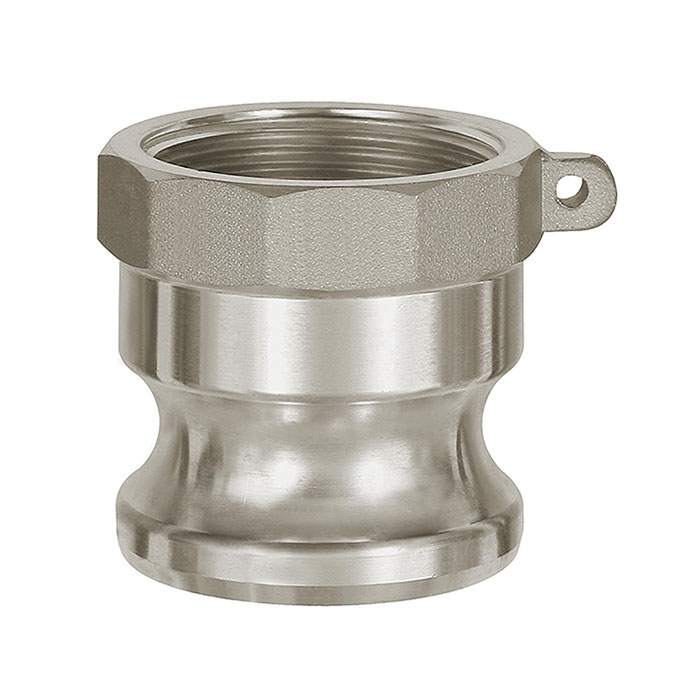

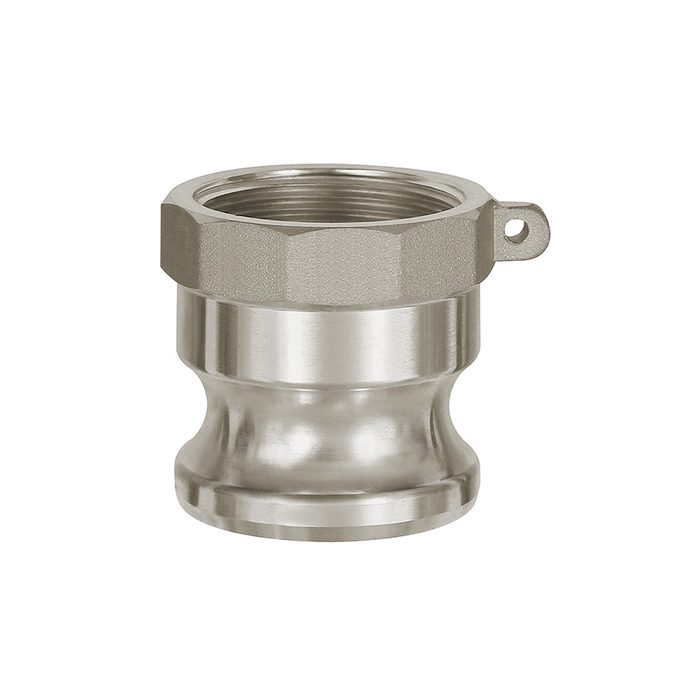

RIEGLER Kamlok quick-connect plug, Interior thread, A type, Alu, G 2 1/2
Type number: 1117.212
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
108071EAN :
4047322403597Category :
KAMLOK Hose Couplings & AccessoriesWeight :
0.26 kgRIEGLER Kamlok quick coupling plug with female thread for compressed air supply, max. 16 bar, G 2 1/2 - Type 1117.212
The RIEGLER Kamlok quick coupling plug with female thread, type A, aluminum, G 2 1/2 enables quick connection according to the Kamlock system. with NBR seals, oil and petrol resistant. Designed for a maximum operating pressure of 16 bar. The temperature range is between -20 °C and 68 °C. Connection thread G 2 1/2 - suitable for common industry standards. Quick coupling for a wide range of media.
Field of application
Typical areas of application: Chemicals, tank technology and food industry.
| Temperature range min. | -20 °C |
| Temperature range max. | 68 °C |
| Sealing material | NBR, oil and petrol resistant |
| Max. operating pressure | 16 bar |
| Thread | G 2 1/2 |
| Plug Ø | 76 mm |
| L | 79.2 mm |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[108067] RIEGLER Kamlok quick-connect plug, Interior thread, A type, Alu, G 1](/web/image/product.template/191965/image_128/%5B108067%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20Interior%20thread%2C%20A%20type%2C%20Alu%2C%20G%201?unique=b120c3e)
|
Type number: 1117.10 |
3.06 € | |
![[108069] RIEGLER Kamlok quick-connect plug, Interior thread, A type, Alu, G 1 1/2](/web/image/product.template/191967/image_128/%5B108069%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20Interior%20thread%2C%20A%20type%2C%20Alu%2C%20G%201%201-2?unique=9394b8e)
|
Type number: 1117.112 |
3.96 € | |
![[108068] RIEGLER Kamlok quick-connect plug, Interior thread, A type, Alu, G 1 1/4](/web/image/product.template/191966/image_128/%5B108068%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20Interior%20thread%2C%20A%20type%2C%20Alu%2C%20G%201%201-4?unique=3fb6b77)
|
Type number: 1117.114 |
3.20 € | |
![[108070] RIEGLER Kamlok quick-connect plug, Interior thread, A type, Alu, G 2](/web/image/product.template/191968/image_128/%5B108070%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20Interior%20thread%2C%20A%20type%2C%20Alu%2C%20G%202?unique=6eab302)
|
Type number: 1117.20 |
4.90 € | |
![[108072] RIEGLER Kamlok quick-connect plug, Interior thread, A type, Alu, G 3](/web/image/product.template/191970/image_128/%5B108072%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20Interior%20thread%2C%20A%20type%2C%20Alu%2C%20G%203?unique=0caec65)
|
Type number: 1117.30 |
8.77 € | |
![[108066] RIEGLER Kamlok quick-connect plug, Interior thread, A type, Alu, G 3/4](/web/image/product.template/191964/image_128/%5B108066%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20Interior%20thread%2C%20A%20type%2C%20Alu%2C%20G%203-4?unique=a3f00bd)
|
Type number: 1117.34 |
2.81 € | |
![[108073] RIEGLER Kamlok quick-connect plug, Interior thread, A type, Alu, G 4](/web/image/product.template/191971/image_128/%5B108073%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20Interior%20thread%2C%20A%20type%2C%20Alu%2C%20G%204?unique=adec4aa)
|
Type number: 1117.40 |
12.98 € | |
