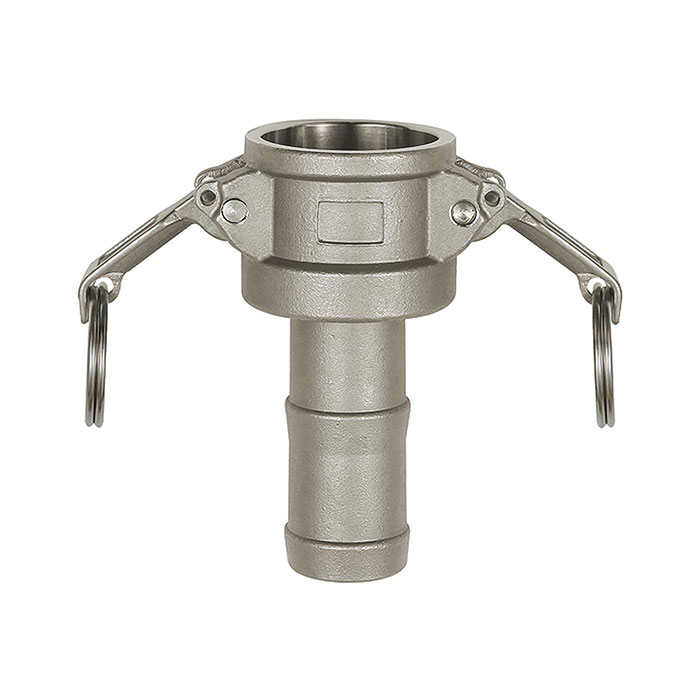

RIEGLER Kamlok quick-connect socket, C type, 1.4401, Hose I.D. 75
Type number: 1112.30-ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
108105EAN :
4047322404372Category :
KAMLOK Hose Couplings & AccessoriesWeight :
1.29 kgRIEGLER Kamlok quick coupling socket for compressed air supply, max. 16 bar - Type 1112.30-ES
The RIEGLER Kamlok quick coupling socket, type C, ES, LW 75, for plug Ø 92 enables quick connection according to the Kamlock system. with NBR seals, oil and petrol resistant. Designed for a maximum operating pressure of 16 bar. The temperature range is between -20 °C and 95 °C. Quick coupling for a wide range of media.
Field of application
Typical areas of application: Chemicals, tank technology and food industry.
| Temperature range min. | -20 °C |
| Temperature range max. | 95 °C |
| Sealing material | NBR, oil and petrol resistant |
| Max. operating pressure | 16 bar |
| for inner hose Ø | 75 |
| for plug Ø | 92 mm |
| A | 131.8 mm |
| C | 151.5 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | STAINLESS STEEL |
