RIEGLER Kamlok quick-connect plug, IT, A type, 1.4401, G 1 1/4
Type number: 1117.114-ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
108141EAN :
4047322404822Category :
KAMLOK Hose Couplings & AccessoriesWeight :
0.16 kgRIEGLER Kamlok quick coupling plug with female thread for compressed air supply, max. 16 bar, G 1 1/4 - Type 1117.114-ES
The RIEGLER Kamlok quick coupling plug with female thread, type A, ES 1.4401, G 1 1/4 enables quick connection according to the Kamlock system. with NBR seals, oil and petrol resistant. Designed for a maximum operating pressure of 16 bar. The temperature range is between -20 °C and 95 °C. G 1 1/4 connection thread - suitable for common industry standards. Quick coupling for a wide range of media.
Field of application
Typical areas of application: Chemicals, tank technology and food industry.
| Temperature range min. | -20 °C |
| Temperature range max. | 95 °C |
| Sealing material | NBR, oil and petrol resistant |
| Max. operating pressure | 16 bar |
| Thread | G 1 1/4 |
| Plug Ø | 46 mm |
| L | 49.5 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[108140] RIEGLER Kamlok quick-connect plug, Interior thread, A type, 1.4401, G 1](/web/image/product.template/192038/image_128/%5B108140%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20Interior%20thread%2C%20A%20type%2C%201.4401%2C%20G%201?unique=dce69e7)
|
Type number: 1117.10-ES |
9.58 € | |
![[108143] RIEGLER Kamlok quick-connect plug, Interior thread, A type, 1.4401, G 2](/web/image/product.template/192041/image_128/%5B108143%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20Interior%20thread%2C%20A%20type%2C%201.4401%2C%20G%202?unique=aefb4a0)
|
Type number: 1117.20-ES |
23.70 € | |
![[108145] RIEGLER Kamlok quick-connect plug, Interior thread, A type, 1.4401, G 3](/web/image/product.template/192043/image_128/%5B108145%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20Interior%20thread%2C%20A%20type%2C%201.4401%2C%20G%203?unique=7333328)
|
Type number: 1117.30-ES |
43.26 € | |
![[108139] RIEGLER Kamlok quick-connect plug, Interior thread, A type, 1.4401, G 3/4](/web/image/product.template/192037/image_128/%5B108139%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20Interior%20thread%2C%20A%20type%2C%201.4401%2C%20G%203-4?unique=8896694)
|
Type number: 1117.34-ES |
6.90 € | |

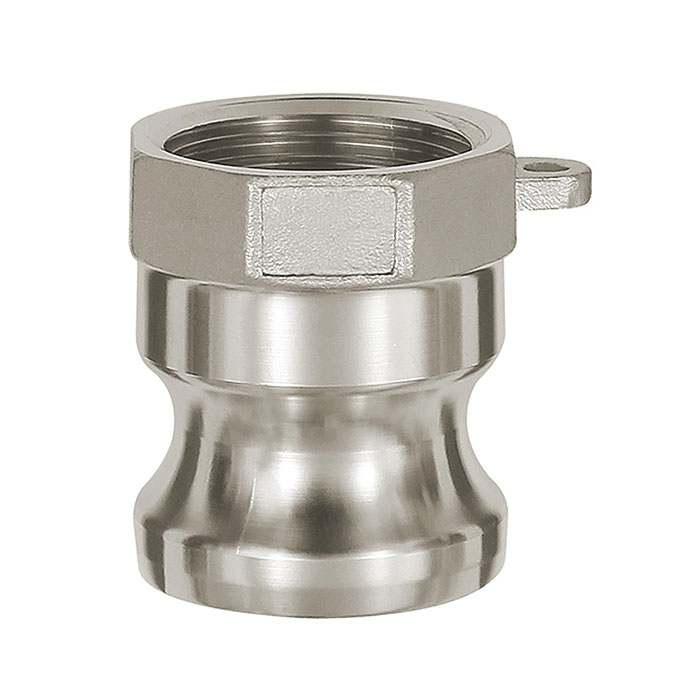

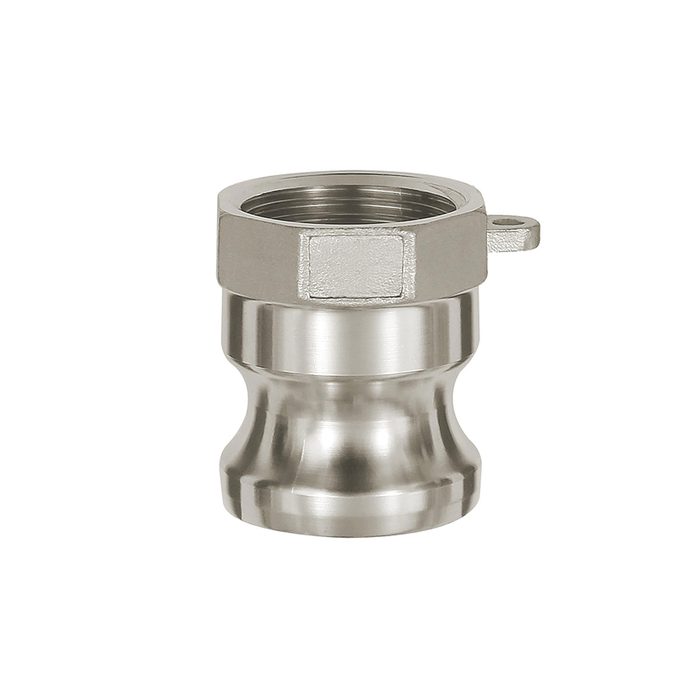

![[108146] RIEGLER Kamlok quick-connect plug, Interior thread, A type, 1.4401, G 4](/web/image/product.template/192044/image_128/%5B108146%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20Interior%20thread%2C%20A%20type%2C%201.4401%2C%20G%204?unique=81fbec4)
|
