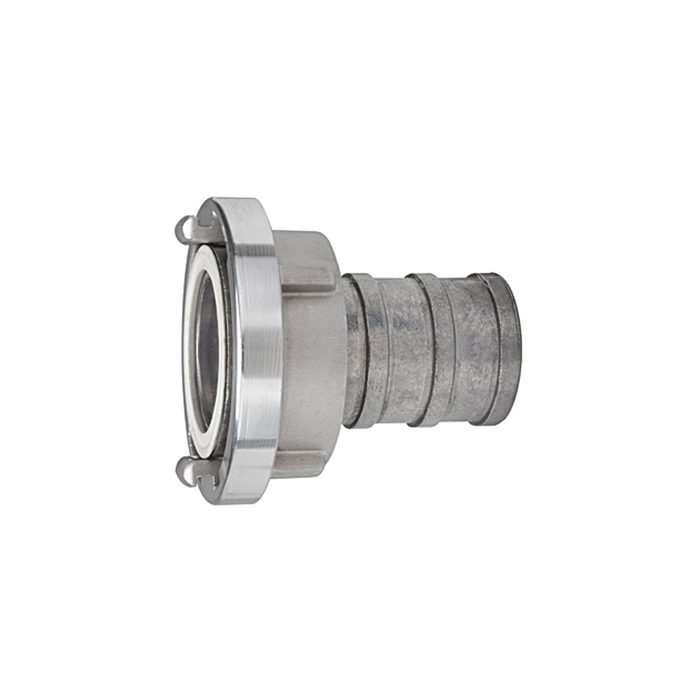

RIEGLER Storz coupling, Hose supports, rotating, Storz size 100, I.D. 100
Type number: 2401.115100
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Storz-Kupplung, Schlauchstutzen, drehbar, Alu, Storz-Größe 100, LW 100, Betriebsdruck max. 16 bar, Betriebstemp. -40 °C bis 110 °C
| Sealing material | NBR |
| Max. operating pressure | 16 bar |
| Material | Aluminum |
| Operating temperature min. | -40 °C |
| Operating temperature max. | 110 °C |
| Length | 152 mm |
| Storz size | 100 |
| Bend spacing | 115 mm |
| Hose LW | 100 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | FLEX |
