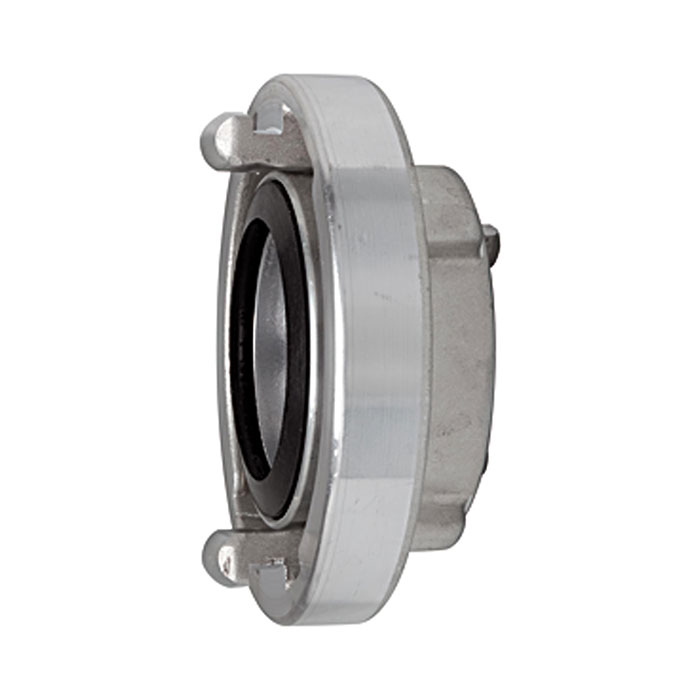

RIEGLER Storz reducer, Alu, Storz size 65/52-C, Tappet distance 81/66 mm
Type number: 2405.8166
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Storz transition piece made of aluminum, for compressed air supply, max. 16 bar - Type 2405.8166
The RIEGLER Storz adapter, aluminum, Storz size 65/52-C, KA 81/66 mm connects hoses quickly using the proven Storz system - symmetrical design. The housing is made of aluminum with NBR seals. Designed for a maximum operating pressure of 16 bar. The operating temperature is between -40 °C and 110 °C. Symmetrical coupling - each side fits on each side.
Field of application
Typical areas of application: Fire department, construction site and water technology.
| Sealing material | NBR |
| Max. operating pressure | 16 bar |
| Material | Aluminum |
| Operating temperature min. | -40 °C |
| Operating temperature max. | 110 °C |
| Storz size | 65/52-C |
| Bend spacing 2 | 66 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Bend spacing 1 | 81 mm |
| Class name | FLEX |
