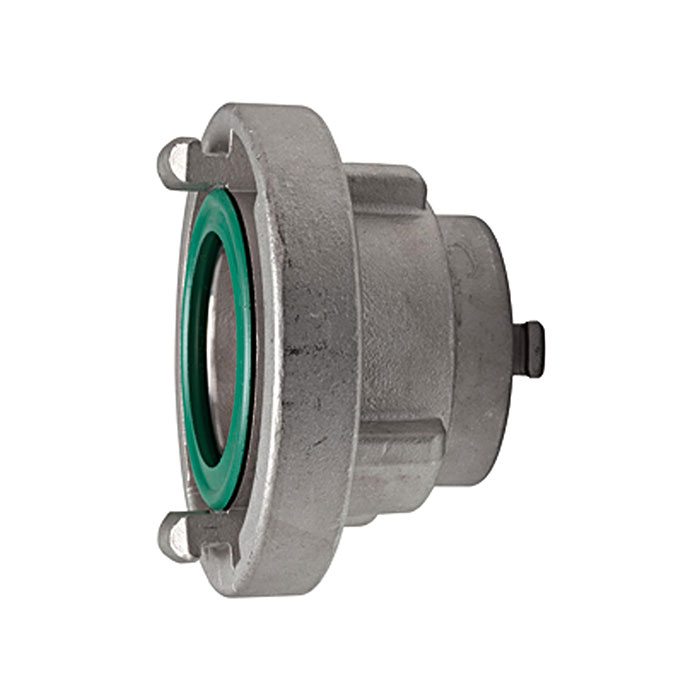

RIEGLER Storz reducer, Stainless steel V4A, Storz size 100/75-B
Type number: 3405.11589
EAN: 4047322256704
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
108345EAN :
4047322256704Category :
Storz Couplings and AccessoriesWeight :
0.10 kgStorz transition piece, stainless steel V4A, Storz size 100/75-B, cleat spacing 115/89 mm, PN max. 16 bar, operating temp. -15°C to 200°C
| Sealing material | FKM |
| Max. operating pressure | 16 bar |
| Material | Stainless steel V4A |
| Operating temperature min. | -15 °C |
| Operating temperature max. | 200 °C |
| Storz size | 100/75-B |
| Bend spacing 2 | 89 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Bend spacing 1 | 115 mm |
| Class name | STAINLESS STEEL |
