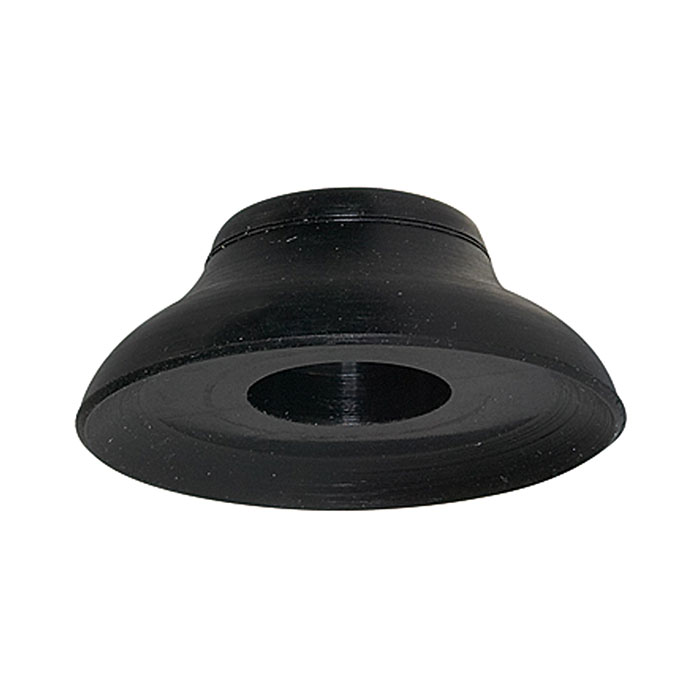

RIEGLER Flat suction cup, round, Material NBR, »PFG« ø: 15 mm
Type number: PFG 1015-1
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Round flat suction cup for vacuum technology - type PFG 1015-1
The RIEGLER flat suction cup round, PFG ø:15 mm, NBR lifts and transports workpieces safely by vacuum. Suction force 9 N. Gentle workpiece handling without mechanical clamping.
Field of application
Typical areas of application: Robotics, packaging technology and automated handling.
| Diameter | 15 mm |
| Suitable connection nipple IG | G 1/8 |
| Suitable connection nipple AG | G 1/8 |
| Overall height with nipple IG | 24.0 mm |
| Overall height with nipple AG | 13.0 mm |
| Suction power | 9 N |
| Volume | 0.4 cm³ |
| Workpiece radius convex min. | 13 mm |
| Recommended hose Ø | 4 mm |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[108462] RIEGLER Connection nipple for flat suction cup round »PFG«, G1/8 ET, Ø 15](/web/image/product.template/192359/image_128/%5B108462%5D%20RIEGLER%20Connection%20nipple%20for%20flat%20suction%20cup%20round%20%C2%BBPFG%C2%AB%2C%20G1-8%20ET%2C%20%C3%98%2015?unique=0449670)
|
Type number: 311.018-29 |
2.96 € | |

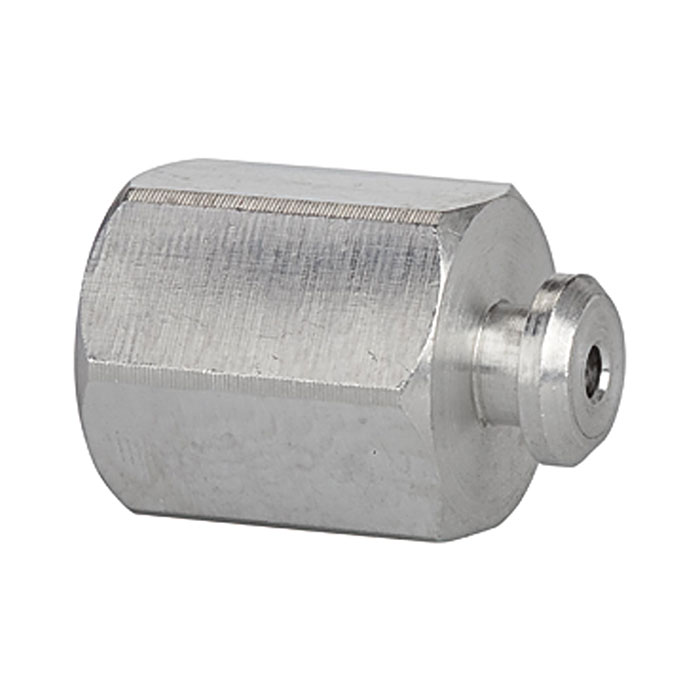

![[108469] RIEGLER Connection nipple for flat suction cup round »PFG«, G 1/8 IT Ø15](/web/image/product.template/192366/image_128/%5B108469%5D%20RIEGLER%20Connection%20nipple%20for%20flat%20suction%20cup%20round%20%C2%BBPFG%C2%AB%2C%20G%201-8%20IT%20%C3%9815?unique=2d56bca)
|
Type number: 312.018-21 |
2.95 € | |
