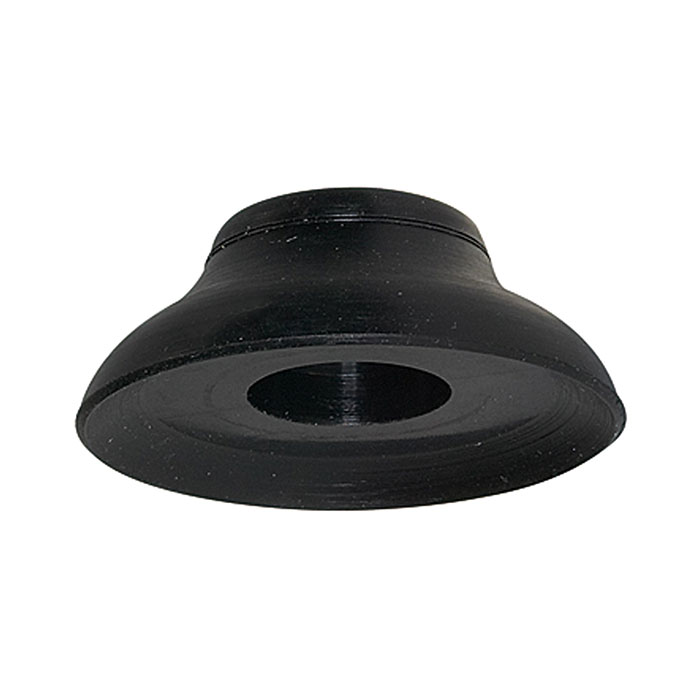

RIEGLER Flat suction cup, round, Material NBR, »PFG« ø: 25 mm
Type number: PFG 1025-1
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Round flat suction cup for vacuum technology - type PFG 1025-1
The RIEGLER flat suction cup round, PFG ø:25 mm, NBR lifts and transports workpieces safely by vacuum. Suction force 26.5 N. Gentle workpiece handling without mechanical clamping.
Field of application
Typical areas of application: Robotics, packaging technology and automated handling.
| Diameter | 25 mm |
| Suitable connection nipple IG | G 1/8 |
| Suitable connection nipple AG | G 1/8 |
| Overall height with nipple IG | 30.0 mm |
| Overall height with nipple AG | 19.0 mm |
| Suction power | 26.5 N |
| Volume | 1.3 cm³ |
| Workpiece radius convex min. | 25 mm |
| Recommended hose Ø | 4 mm |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[108464] RIEGLER Connection nipple for flat suction cup round PFG,G1/8 ET, Ø 25-40](/web/image/product.template/192361/image_128/%5B108464%5D%20RIEGLER%20Connection%20nipple%20for%20flat%20suction%20cup%20round%20PFG%2CG1-8%20ET%2C%20%C3%98%2025-40?unique=a69fb96)
|
Type number: 311.018-31 |
2.96 € | |
![[108471] RIEGLER Connection nipple for flat suction cup round »PFG«, G 1/8 IT Ø40](/web/image/product.template/192368/image_128/%5B108471%5D%20RIEGLER%20Connection%20nipple%20for%20flat%20suction%20cup%20round%20%C2%BBPFG%C2%AB%2C%20G%201-8%20IT%20%C3%9840?unique=6e72150)
|
Type number: 312.018-23 |
2.96 € | |
