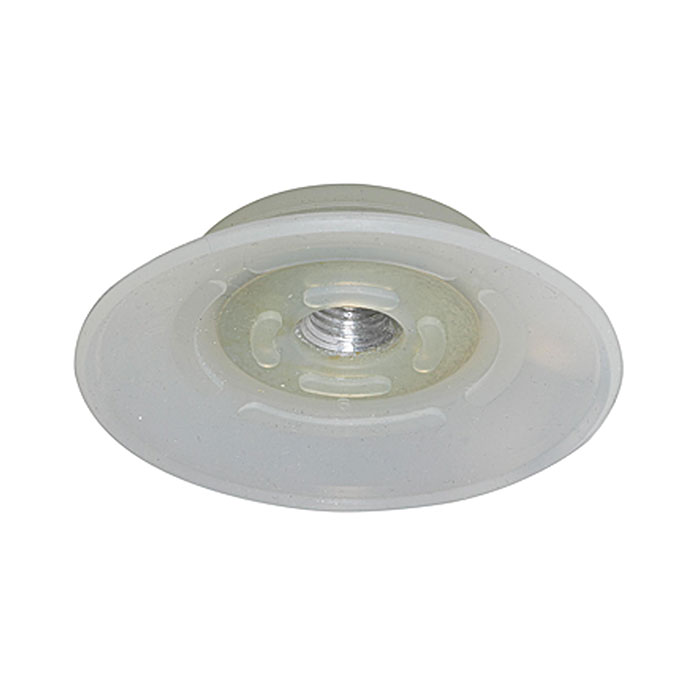

RIEGLER Flat suction cup, round, Silicone material, »PFG«
Type number: PFG 1050-2
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Round flat suction cup for vacuum technology - type PFG 1050-2
The RIEGLER flat suction cup round, PFG ø: 50 mm, silicone lifts and transports workpieces safely by vacuum. Suction force 91 N. Gentle workpiece handling without mechanical clamping.
Field of application
Typical areas of application: Robotics, packaging technology and automated handling.
| Diameter | 50 mm |
| Suitable connection nipple IG | G 1/8 |
| Suitable connection nipple AG | G 1/8 |
| Overall height with nipple IG | 31.0 mm |
| Overall height with nipple AG | 20.0 mm |
| Suction power | 91 N |
| Volume | 7 cm³ |
| Workpiece radius convex min. | 75 mm |
| Recommended hose Ø | 4 mm |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[108465] RIEGLER Connection nipple for flat suction cup round »PFG«, G1/8 ET, Ø 50](/web/image/product.template/192362/image_128/%5B108465%5D%20RIEGLER%20Connection%20nipple%20for%20flat%20suction%20cup%20round%20%C2%BBPFG%C2%AB%2C%20G1-8%20ET%2C%20%C3%98%2050?unique=b4402fd)
|
Type number: 311.018-32 |
2.96 € | |

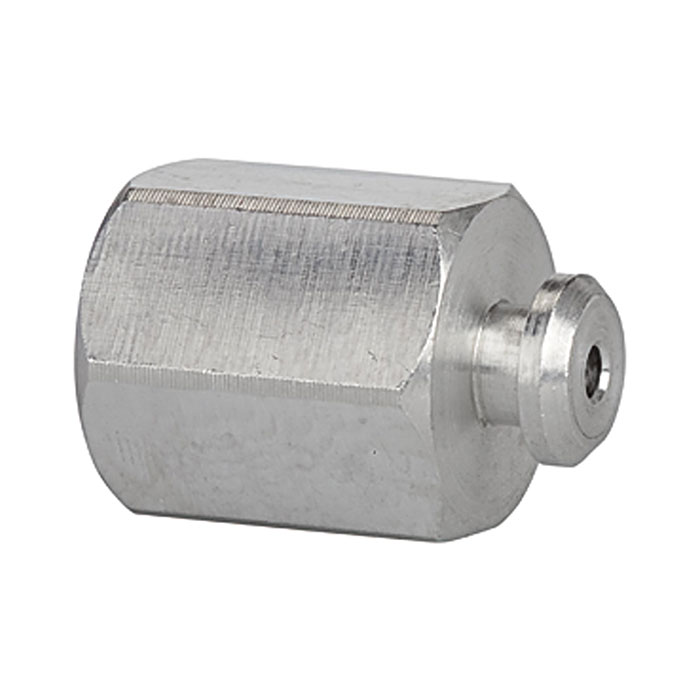

![[108472] RIEGLER Connection nipple for flat suction cup round »PFG«, G 1/8 IT Ø50](/web/image/product.template/192369/image_128/%5B108472%5D%20RIEGLER%20Connection%20nipple%20for%20flat%20suction%20cup%20round%20%C2%BBPFG%C2%AB%2C%20G%201-8%20IT%20%C3%9850?unique=08fd960)
|
Type number: 312.018-24 |
2.95 € | |
