RIEGLER Flat suction cup, oval, Material NBR, »SGO« Ø18x6
Type number: SGO 1806-1
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Oval flat suction cup for vacuum technology - type SGO 1806-1
The RIEGLER flat suction cup oval, SGO ø: 18x6, NBR lifts and transports workpieces safely by vacuum. Suction force 4.5 N. Gentle workpiece handling without mechanical clamping.
Field of application
Typical areas of application: Robotics, packaging technology and automated handling.
| Diameter | 18x6 mm |
| Suitable connection nipple IG | M5 |
| Suitable connection nipple AG | M5 |
| Overall height with nipple IG | 22.0 mm |
| Overall height with nipple AG | 17.0 mm |
| Suction power | 4.5 N |
| Volume | 0.058 cm³ |
| Workpiece radius convex min. | 4 mm |
| Recommended hose Ø | 2 mm |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

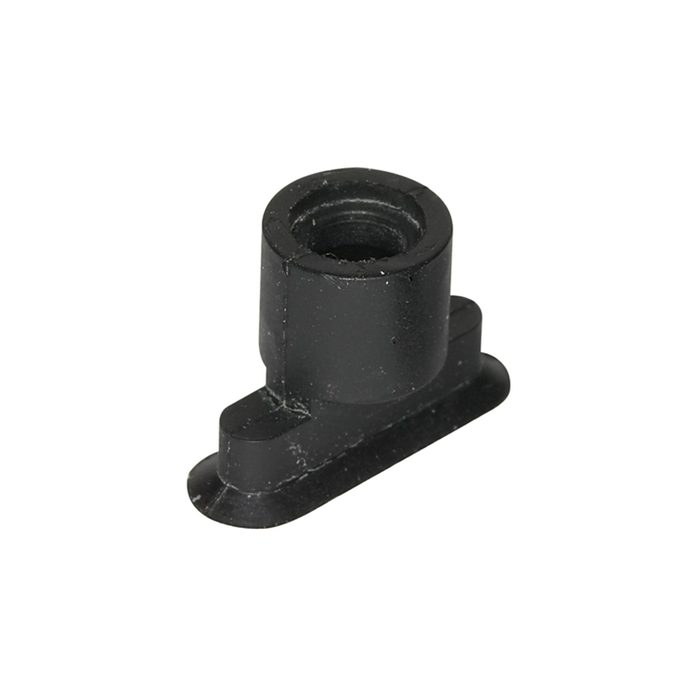

![[108475] RIEGLER Flat suction cup, oval, Material NBR, »SGO« Ø15x5](/web/image/product.template/192372/image_128/%5B108475%5D%20RIEGLER%20Flat%20suction%20cup%2C%20oval%2C%20Material%20NBR%2C%20%C2%BBSGO%C2%AB%20%C3%9815x5?unique=190814f)
|
Type number: SGO 1505-1 |
10.75 € | |
![[108477] RIEGLER Flat suction cup, oval, Material NBR, »SGO« Ø30x10](/web/image/product.template/192374/image_128/%5B108477%5D%20RIEGLER%20Flat%20suction%20cup%2C%20oval%2C%20Material%20NBR%2C%20%C2%BBSGO%C2%AB%20%C3%9830x10?unique=dc411c1)
|
Type number: SGO 3010-1 |
14.76 € | |
![[108478] RIEGLER Flat suction cup, oval, Material NBR, »SGO« Ø45x15](/web/image/product.template/192375/image_128/%5B108478%5D%20RIEGLER%20Flat%20suction%20cup%2C%20oval%2C%20Material%20NBR%2C%20%C2%BBSGO%C2%AB%20%C3%9845x15?unique=7c9db8c)
|
Type number: SGO 4515-1 |
15.22 € | |
![[108474] RIEGLER Flat suction cup, oval, Material NBR, »SGO« Ø7x3,5](/web/image/product.template/192371/image_128/%5B108474%5D%20RIEGLER%20Flat%20suction%20cup%2C%20oval%2C%20Material%20NBR%2C%20%C2%BBSGO%C2%AB%20%C3%987x3%2C5?unique=20e39d3)
|
Type number: SGO 0735-1 |
3.52 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

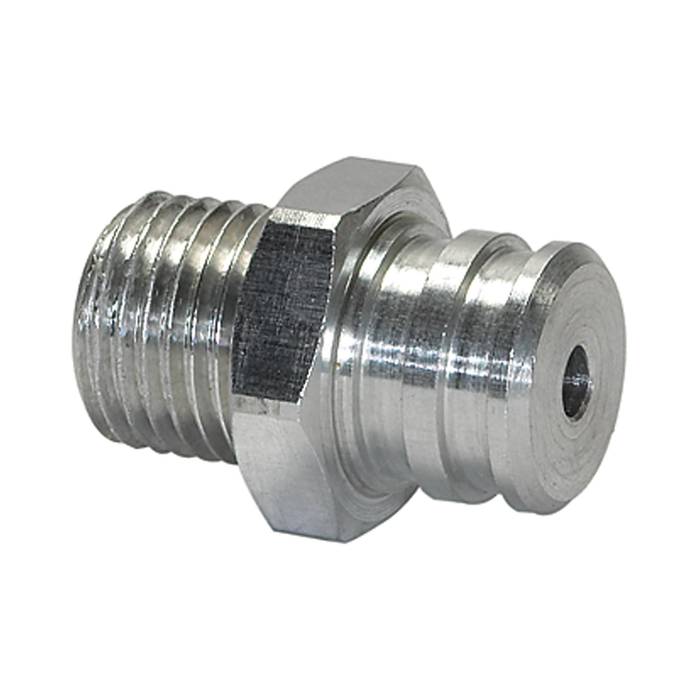

![[108484] RIEGLER Connection nipple for flat suction cup, oval SGO, M5 ETØ15,5/18x6](/web/image/product.template/192381/image_128/%5B108484%5D%20RIEGLER%20Connection%20nipple%20for%20flat%20suction%20cup%2C%20oval%20SGO%2C%20M5%20ET%C3%9815%2C5-18x6?unique=b5c3ed5)
|
Type number: 315.005 |
3.90 € | |

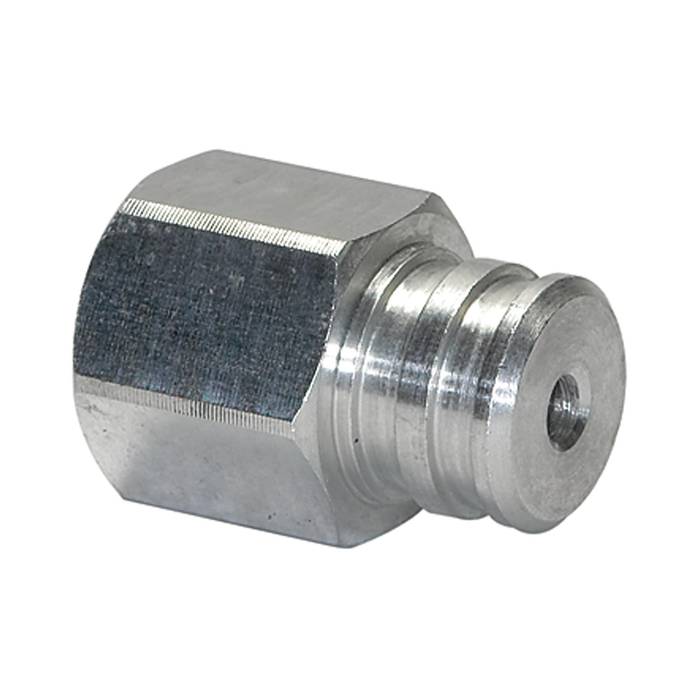

![[108487] RIEGLER Connection nipple for flat suction cup, oval, SGO M5 ITØ15,5/18x6](/web/image/product.template/192384/image_128/%5B108487%5D%20RIEGLER%20Connection%20nipple%20for%20flat%20suction%20cup%2C%20oval%2C%20SGO%20M5%20IT%C3%9815%2C5-18x6?unique=665a20c)
|
Type number: 316.005 |
3.90 € | |
