RIEGLER Flat suction cup, oval, Silicone material, »SGO« Ø7x3,5
Type number: SGO 0735-2
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Oval flat suction cup for vacuum technology - type SGO 0735-2
The RIEGLER flat suction cup oval, SGO ø: 7x3.5, silicone lifts and transports workpieces safely by vacuum. Suction force 1 N. Gentle workpiece handling without mechanical clamping.
Field of application
Typical areas of application: Robotics, packaging technology and automated handling.
| Diameter | 7x3.5 mm |
| Suitable connection nipple IG | - |
| Suitable connection nipple AG | M3 |
| Overall height with nipple AG | 8.0 mm |
| Suction power | 1 N |
| Volume | 0.019 cm³ |
| Workpiece radius convex min. | 3 mm |
| Recommended hose Ø | 2 mm |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

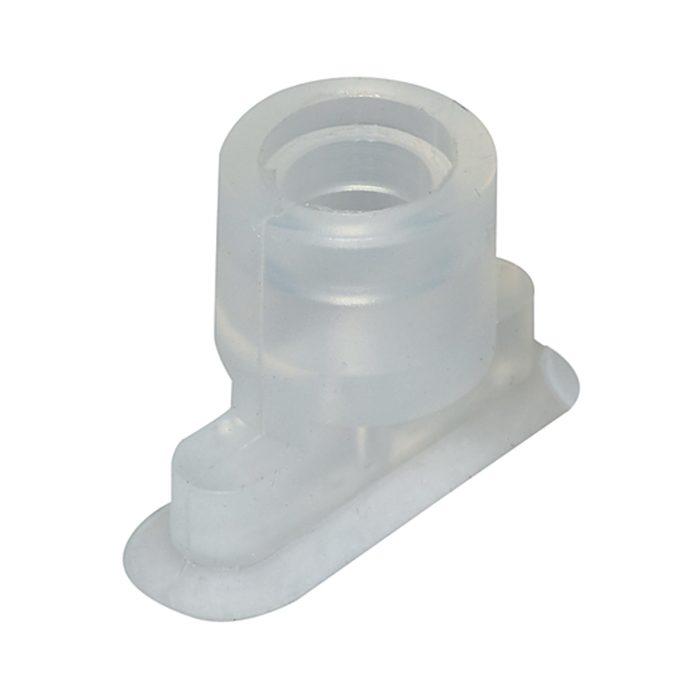

![[108481] RIEGLER Flat suction cup, oval, Silicone material, »SGO« Ø18x6](/web/image/product.template/192378/image_128/%5B108481%5D%20RIEGLER%20Flat%20suction%20cup%2C%20oval%2C%20Silicone%20material%2C%20%C2%BBSGO%C2%AB%20%C3%9818x6?unique=2eea032)
|
Type number: SGO 1806-2 |
11.20 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[108459] RIEGLER Conn. nipple for flat suction cup round/oval, M3 ET, Ø 3,5/7x3,5](/web/image/product.template/192356/image_128/%5B108459%5D%20RIEGLER%20Conn.%20nipple%20for%20flat%20suction%20cup%20round-oval%2C%20M3%20ET%2C%20%C3%98%203%2C5-7x3%2C5?unique=dfad2af)
|
Type number: 311.003 |
2.96 € | |
