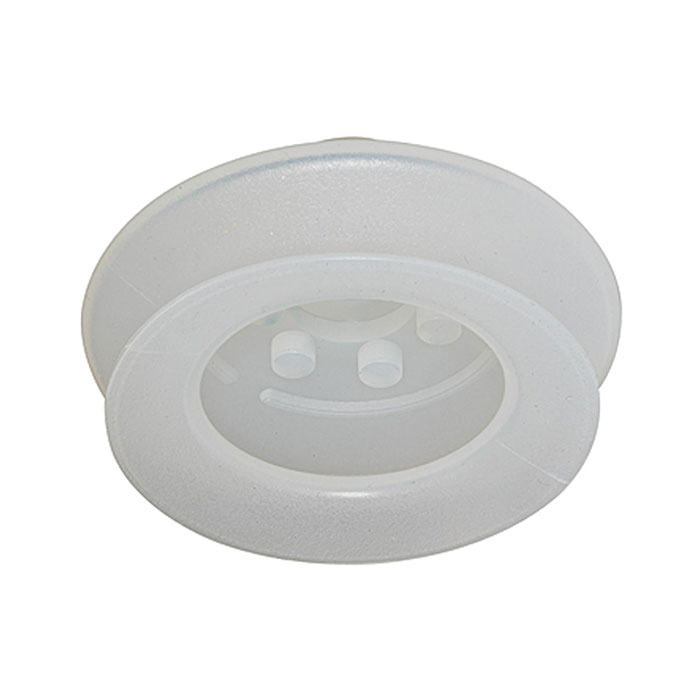

RIEGLER Bellows suction cup, Round 1.5 folds, Silicone material, FGA ø25
Type number: FGA 1525-2
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Bellows suction cup, round 1.5 folds, material silicone, type FGA, diameter 25 mm, suitable for connection nipple female G 1/8, male G 1/8
| Diameter | 25 mm |
| Suitable connection nipple IG | G 1/8 |
| Suitable connection nipple AG | G 1/8 |
| Overall height with nipple IG | 35.0 mm |
| Overall height with nipple AG | 29.0 mm |
| Suction power | 5.3 N |
| Volume | 3.15 cm³ |
| Workpiece radius convex min. | 20 mm |
| Recommended hose Ø | 4 mm |
| Tear-off force | 17.3 N |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[108498] RIEGLER Bellows suction cup, Round 1.5 folds, Silicone material, FGA ø11](/web/image/product.template/192395/image_128/%5B108498%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%201.5%20folds%2C%20Silicone%20material%2C%20FGA%20%C3%B811?unique=8960ab8)
|
Type number: FGA 1511-2 |
4.87 € | |
![[108499] RIEGLER Bellows suction cup, Round 1.5 folds, Silicone material, FGA ø14](/web/image/product.template/192396/image_128/%5B108499%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%201.5%20folds%2C%20Silicone%20material%2C%20FGA%20%C3%B814?unique=b3dfcaa)
|
Type number: FGA 1514-2 |
6.53 € | |
![[108500] RIEGLER Bellows suction cup, Round 1.5 folds, Silicone material, FGA ø16](/web/image/product.template/192397/image_128/%5B108500%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%201.5%20folds%2C%20Silicone%20material%2C%20FGA%20%C3%B816?unique=4994729)
|
Type number: FGA 1516-2 |
6.06 € | |
![[108501] RIEGLER Bellows suction cup, Round 1.5 folds, Silicone material, FGA ø20](/web/image/product.template/192398/image_128/%5B108501%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%201.5%20folds%2C%20Silicone%20material%2C%20FGA%20%C3%B820?unique=41e0ace)
|
Type number: FGA 1520-2 |
7.25 € | |
![[108503] RIEGLER Bellows suction cup, Round 1.5 folds, Silicone material, FGA ø33](/web/image/product.template/192400/image_128/%5B108503%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%201.5%20folds%2C%20Silicone%20material%2C%20FGA%20%C3%B833?unique=3e2e73e)
|
Type number: FGA 1533-2 |
7.60 € | |
![[108504] RIEGLER Bellows suction cup, Round 1.5 folds, Silicone material, FGA ø43](/web/image/product.template/192401/image_128/%5B108504%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%201.5%20folds%2C%20Silicone%20material%2C%20FGA%20%C3%B843?unique=c03389e)
|
Type number: FGA 1543-2 |
9.57 € | |
![[108505] RIEGLER Bellows suction cup, Round 1.5 folds, Silicone material, FGA ø53](/web/image/product.template/192402/image_128/%5B108505%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%201.5%20folds%2C%20Silicone%20material%2C%20FGA%20%C3%B853?unique=f38b637)
|
Type number: FGA 1553-2 |
13.96 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[108508] RIEGLER Connection nipple for bellows suction cup, round, »FGA« Ø7-25](/web/image/product.template/192405/image_128/%5B108508%5D%20RIEGLER%20Connection%20nipple%20for%20bellows%20suction%20cup%2C%20round%2C%20%C2%BBFGA%C2%AB%20%C3%987-25?unique=999c56a)
|
Type number: 313.018 |
2.95 € | |
![[108511] RIEGLER Connection nipple for bellows suction cup, round, »FGA«](/web/image/product.template/192408/image_128/%5B108511%5D%20RIEGLER%20Connection%20nipple%20for%20bellows%20suction%20cup%2C%20round%2C%20%C2%BBFGA%C2%AB?unique=1a451ac)
|
Type number: 314.018 |
2.95 € | |
