RIEGLER Straight push-in bulkhead connector »click-clock«, M8x0.75
Type number: 751.008-3
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Straight bulkhead push-in connector "click-clock" M8x0 made of nickel-plated brass - type 751.008-3
The RIEGLER straight bulkhead push-in connector "click-clock" M8x0.75, w.-A.Ø 3 connects compressed air and pneumatic lines securely and tightly. The housing is made of nickel-plated brass with NBR seals. The operating pressure range is -0.99 bar to 16 bar. The operating temperature is between -20 °C and 80 °C. Connection thread M8x0.75 - suitable for common industry standards. Suitable for compressed air. Secure, tight connection for reliable operation.
Field of application
Typical areas of application: Pneumatic installations and compressed air distribution.
| Medium | Compressed air |
| Sealing material | NBR |
| Series | click-clock |
| Working pressure min. | -0.99 bar |
| Working pressure max. | 16 bar |
| Material | Nickel-plated brass |
| Area of application | Compressed air systems, vacuum |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 80 °C |
| Solder ring | Nickel-plated brass |
| Clamping ring | Stainless steel |
| Recommended hose | PA, PU |
| Thread | M8x0.75 |
| SW | 10 mm |
| for hose outer Ø | 3 mm |
| D | 2 mm |
| L1 | 18.9 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[108737] RIEGLER Straight push-in bulkhead connector »click-clock«, M11x1](/web/image/product.template/192634/image_128/%5B108737%5D%20RIEGLER%20Straight%20push-in%20bulkhead%20connector%20%C2%BBclick-clock%C2%AB%2C%20M11x1?unique=f2f8398)
|
Type number: 751.012-4 |
2.95 € | |
![[108739] RIEGLER Straight push-in bulkhead connector »click-clock«, M13x1](/web/image/product.template/192636/image_128/%5B108739%5D%20RIEGLER%20Straight%20push-in%20bulkhead%20connector%20%C2%BBclick-clock%C2%AB%2C%20M13x1?unique=ff76184)
|
Type number: 751.014-6 |
2.95 € | |
![[108738] RIEGLER Straight push-in bulkhead connector »click-clock«, M14x1](/web/image/product.template/192635/image_128/%5B108738%5D%20RIEGLER%20Straight%20push-in%20bulkhead%20connector%20%C2%BBclick-clock%C2%AB%2C%20M14x1?unique=b5e0172)
|
Type number: 751.014-5 |
3.25 € | |
![[108740] RIEGLER Straight push-in bulkhead connector »click-clock«, M15x1](/web/image/product.template/192637/image_128/%5B108740%5D%20RIEGLER%20Straight%20push-in%20bulkhead%20connector%20%C2%BBclick-clock%C2%AB%2C%20M15x1?unique=980583d)
|
Type number: 751.016-8 |
2.95 € | |
![[108741] RIEGLER Straight push-in bulkhead connector »click-clock«, M17x1](/web/image/product.template/192638/image_128/%5B108741%5D%20RIEGLER%20Straight%20push-in%20bulkhead%20connector%20%C2%BBclick-clock%C2%AB%2C%20M17x1?unique=621e025)
|
Type number: 751.020-10 |
4.66 € | |

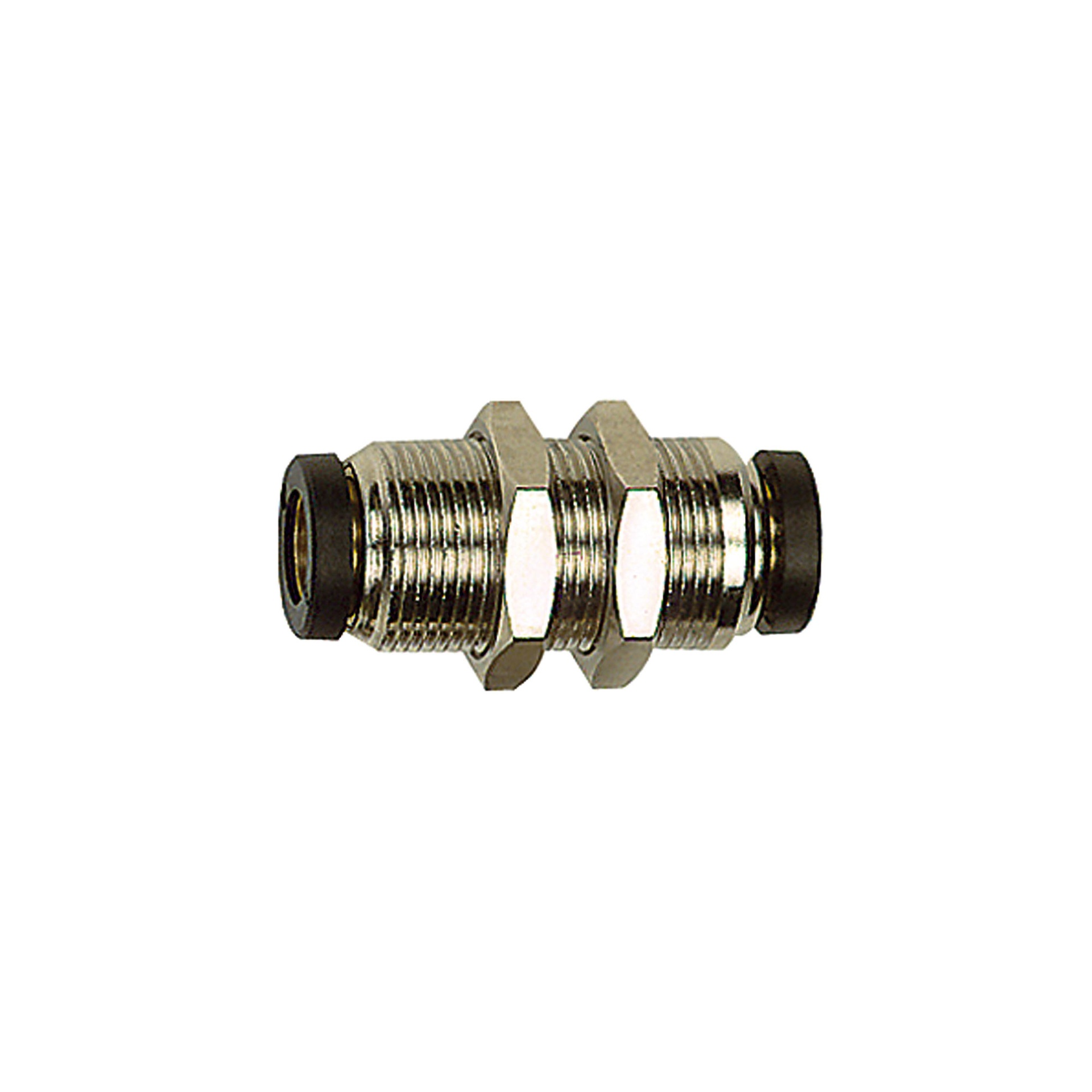

![[108742] RIEGLER Straight push-in bulkhead connector »click-clock«, M20x1](/web/image/product.template/192639/image_128/%5B108742%5D%20RIEGLER%20Straight%20push-in%20bulkhead%20connector%20%C2%BBclick-clock%C2%AB%2C%20M20x1?unique=c0f4f25)
|
Type number: 751.022-12 |
5.01 € | |
![[108743] RIEGLER Straight push-in bulkhead connector »click-clock«, M24x1](/web/image/product.template/192640/image_128/%5B108743%5D%20RIEGLER%20Straight%20push-in%20bulkhead%20connector%20%C2%BBclick-clock%C2%AB%2C%20M24x1?unique=d9c8501)
|
Type number: 751.024-14 |
6.51 € | |
