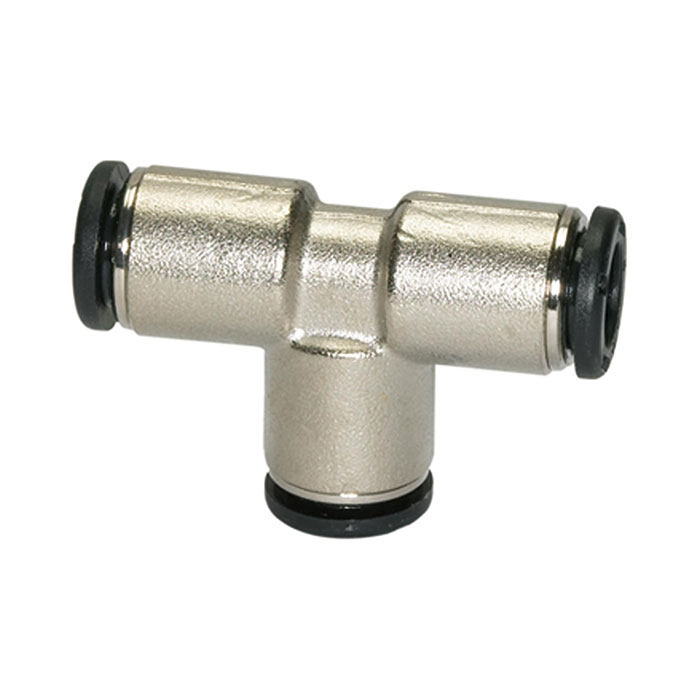

RIEGLER Push-in T-connector »click-clock« for hose exterior Ø 5 mm
Type number: 749.005
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

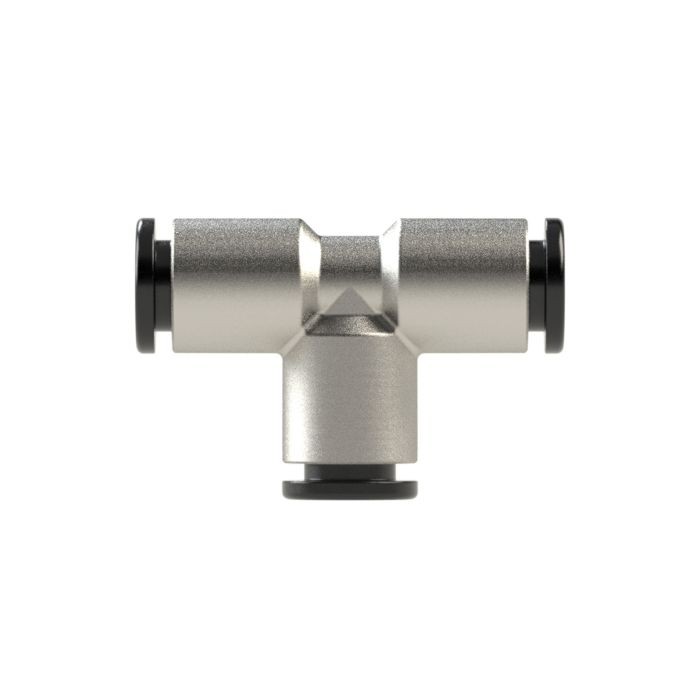

RIEGLER T-connector "click-clock" made of nickel-plated brass, for pneumatic installation - type 749.005
The RIEGLER T-connector "click-clock", hose outer Ø 5, MS nickel-plated enables the quick, tool-free connection of compressed air lines - securely sealing and immediately loadable. The housing is made of nickel-plated brass with NBR seals. The operating pressure range is -0.99 bar to 16 bar. The operating temperature is between -20 °C and 80 °C. Suitable for compressed air. Quick assembly without tools - saves time during installation and conversion.
Field of application
Typical areas of application: Pneumatic installations, machine piping and automation technology.
| Medium | Compressed air |
| Sealing material | NBR |
| Series | click-clock |
| Working pressure min. | -0.99 bar |
| Working pressure max. | 16 bar |
| Material | Nickel-plated brass |
| Area of application | Compressed air systems, vacuum |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 80 °C |
| Solder ring | Hostaform |
| Clamping ring | Stainless steel |
| Recommended hose | PA, PU |
| for hose outer Ø | 5 mm |
| D | 3 mm |

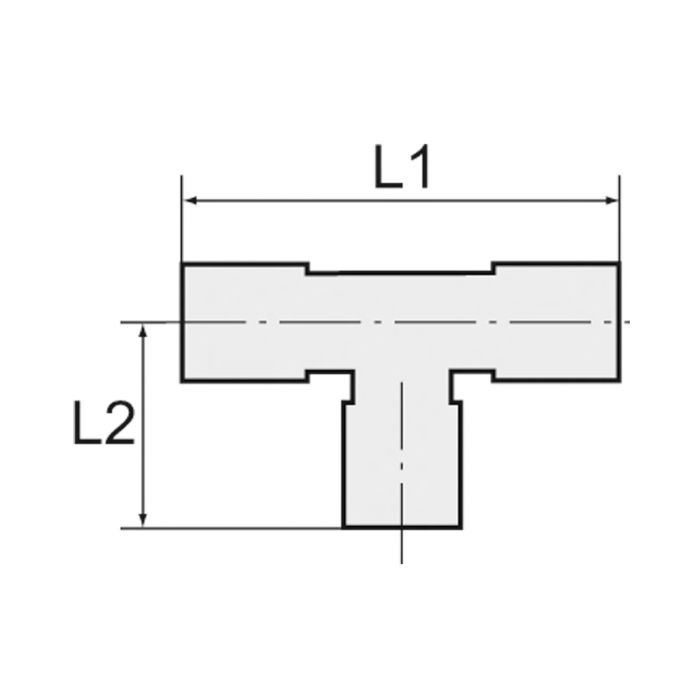

| L1 | 38.4 mm |
| L2 | 19.2 mm |
| E | 13.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[108765] RIEGLER Push-in T-connector »click-clock«, for hose exterior Ø 10 mm](/web/image/product.template/192662/image_128/%5B108765%5D%20RIEGLER%20Push-in%20T-connector%20%C2%BBclick-clock%C2%AB%2C%20for%20hose%20exterior%20%C3%98%2010%20mm?unique=d572988)
|
Type number: 749.010 |
4.62 € | |

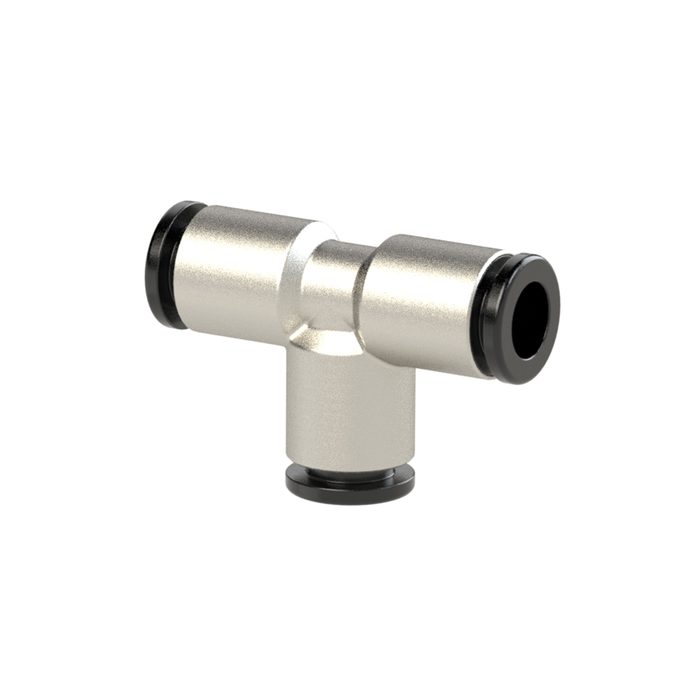

![[108766] RIEGLER Push-in T-connector »click-clock«, for hose exterior Ø 12 mm](/web/image/product.template/192663/image_128/%5B108766%5D%20RIEGLER%20Push-in%20T-connector%20%C2%BBclick-clock%C2%AB%2C%20for%20hose%20exterior%20%C3%98%2012%20mm?unique=00e59d6)
|
