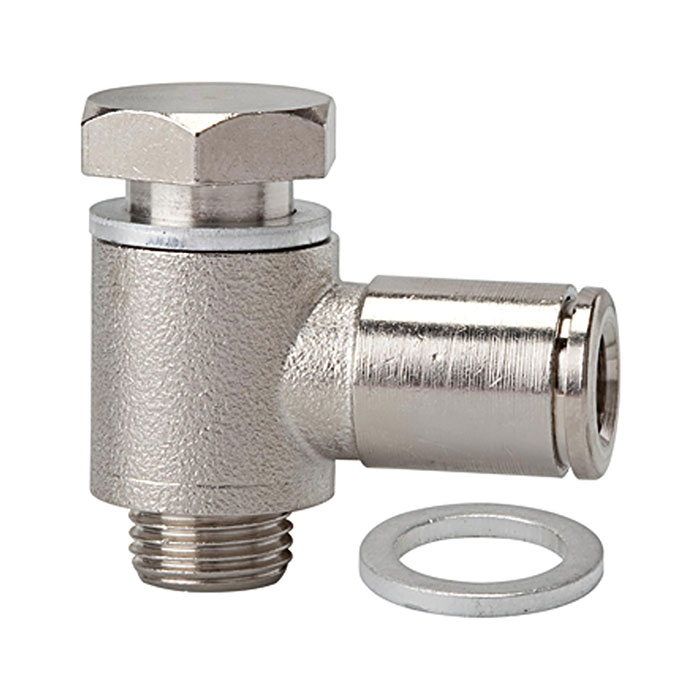

RIEGLER Push-in L-fitting »metallica«, rotating, G3/8 o.,for hose ext.Ø10
Type number: 863.038-10
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Push-in L-fitting "metallica" made of nickel-plated brass, for pneumatic installation - type 863.038-10
The RIEGLER push-in L-fitting "metallica" G 3/8 a., hose Ø 10, MS ver. enables the quick, tool-free connection of compressed air lines - securely sealing and immediately loadable. The housing is made of nickel-plated brass with FKM seals. The operating pressure range is -0.98 bar to 16 bar. The operating temperature is between -20 °C and 150 °C. Connection thread G 3/8 - suitable for common industry standards. Suitable for compressed air. Quick assembly without tools - saves time during installation and conversion.
Field of application
Typical areas of application: Pneumatic installations, machine piping and automation technology.
| Medium | Compressed air |
| Sealing material | FKM |
| Series | metallica |
| Working pressure min. | -0.98 bar |
| Working pressure max. | 16 bar |
| Material | Nickel-plated brass |
| Area of application | Compressed air systems, welding technology, vacuum |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 150 °C |
| Solder ring | Nickel-plated brass |
| Clamping ring | Stainless steel |
| Recommended hose | PA and PU |
| Thread | G 3/8 |
| SW | 19 mm |
| External hexagon | with |
| for hose outer Ø | 10 mm |
| Execution | with O-ring |

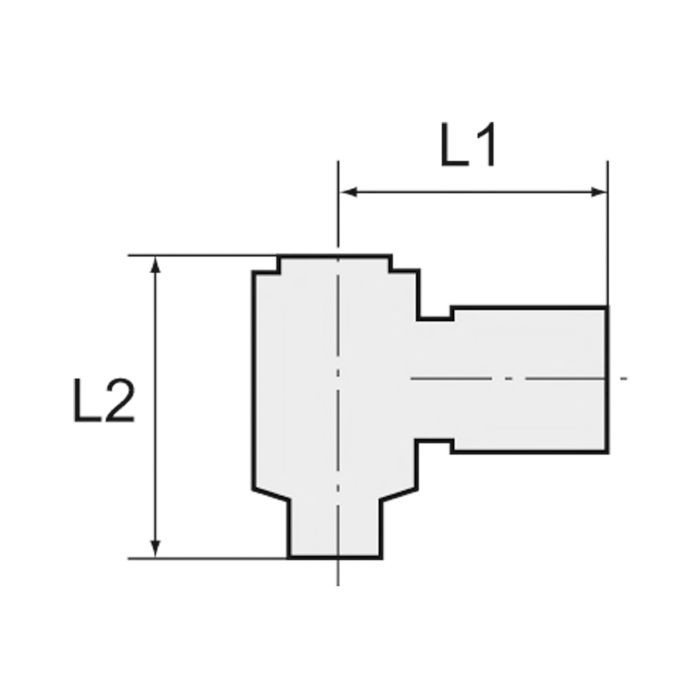

| L1 | 28 mm |
| L2 | 36 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
| Construction method | rotatable |
