RIEGLER Straight push-in bulkhead connector »metallica«, M20x1
Type number: 851.020-12
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Straight bulkhead push-in connector "metallica", M20x1.0, for hose outer Ø 12 mm, working pressure -0.98 to 16 bar, nickel-plated brass
| Medium | Compressed air |
| Sealing material | FKM |
| Series | metallica |
| Working pressure min. | -0.98 bar |
| Working pressure max. | 16 bar |
| Material | Nickel-plated brass |
| Area of application | Compressed air systems, welding technology, vacuum |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 150 °C |
| Solder ring | Nickel-plated brass |
| Clamping ring | Stainless steel |
| Recommended hose | PA and PU |
| Thread | M20x1.0 |
| SW | 24 mm |
| for hose outer Ø | 12 mm |
| L1 | 42 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

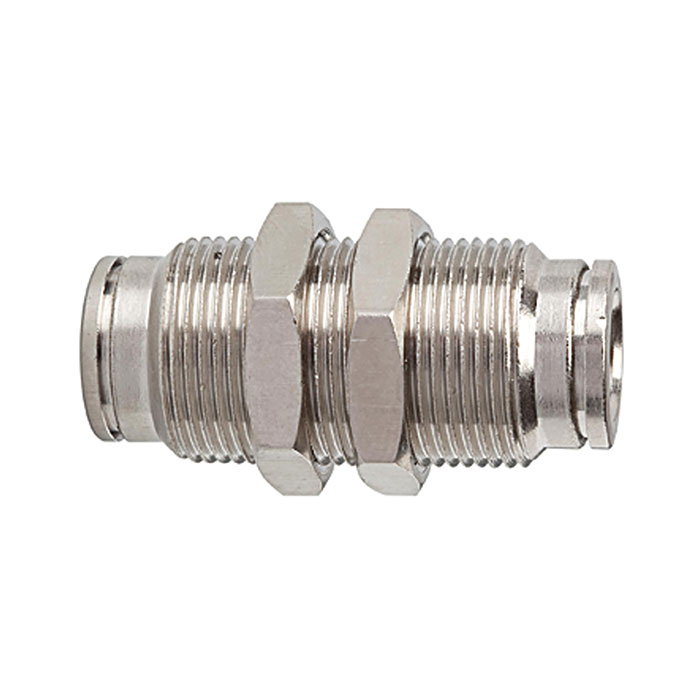

![[108976] RIEGLER Straight push-in bulkhead connector »metallica«, M10x1](/web/image/product.template/192873/image_128/%5B108976%5D%20RIEGLER%20Straight%20push-in%20bulkhead%20connector%20%C2%BBmetallica%C2%AB%2C%20M10x1?unique=4298306)
|
Type number: 851.010-4 |
3.46 € | |
![[108977] RIEGLER Straight push-in bulkhead connector »metallica«, M14x1](/web/image/product.template/192874/image_128/%5B108977%5D%20RIEGLER%20Straight%20push-in%20bulkhead%20connector%20%C2%BBmetallica%C2%AB%2C%20M14x1?unique=1894940)
|
Type number: 851.014-6 |
3.56 € | |
![[108978] RIEGLER Straight push-in bulkhead connector »metallica«, M16x1](/web/image/product.template/192875/image_128/%5B108978%5D%20RIEGLER%20Straight%20push-in%20bulkhead%20connector%20%C2%BBmetallica%C2%AB%2C%20M16x1?unique=99c5917)
|
Type number: 851.016-8 |
3.95 € | |
![[108979] RIEGLER Straight push-in bulkhead connector »metallica«, M17x1](/web/image/product.template/192876/image_128/%5B108979%5D%20RIEGLER%20Straight%20push-in%20bulkhead%20connector%20%C2%BBmetallica%C2%AB%2C%20M17x1?unique=d7b007e)
|
Type number: 851.017-10 |
5.19 € | |
![[108981] RIEGLER Straight push-in bulkhead connector »metallica«, M22x1](/web/image/product.template/192878/image_128/%5B108981%5D%20RIEGLER%20Straight%20push-in%20bulkhead%20connector%20%C2%BBmetallica%C2%AB%2C%20M22x1?unique=0a72a61)
|
Type number: 851.022-14 |
6.95 € | |
![[136780] RIEGLER Straight push-in bulkhead connector »metallica«, M28x1.5](/web/image/product.template/207757/image_128/%5B136780%5D%20RIEGLER%20Straight%20push-in%20bulkhead%20connector%20%C2%BBmetallica%C2%AB%2C%20M28x1.5?unique=7ff407e)
|
Type number: 851.028-16 |
22.05 € | |
