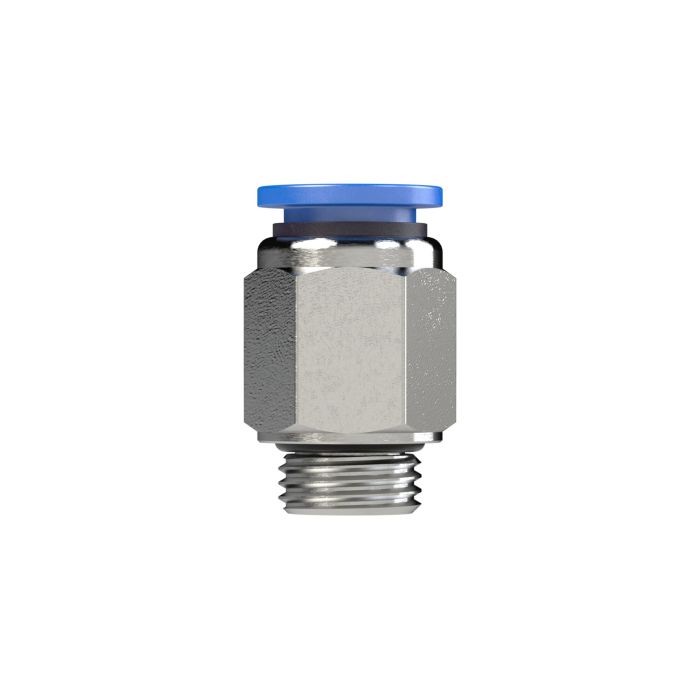

RIEGLER Straight push-in fitting »Blue Series«, G 3/8 o., hose ext. Ø 6
Type number: 122.038-6
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Straight push-in fitting "Blue series" made of plastic or nickel-plated brass - Type 122.038-6
The RIEGLER straight push-in fitting "Blue series", G 3/8 a., hose Ø 6 enables the quick, tool-free connection of compressed air lines - securely sealing and immediately loadable. The housing is made of plastic or nickel-plated brass with NBR seals. The operating pressure range is -0.95 bar to 10 bar. The temperature range is between -20 °C and 80 °C. Connection thread G 3/8 - suitable for common industry standards. Suitable for compressed air. Quick assembly without tools - saves time during installation and conversion.
Field of application
Typical areas of application: Pneumatic installations, machine piping and automation technology.
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | G 3/8 |
| SW | 12 mm |
| for hose outer Ø | 6 mm |

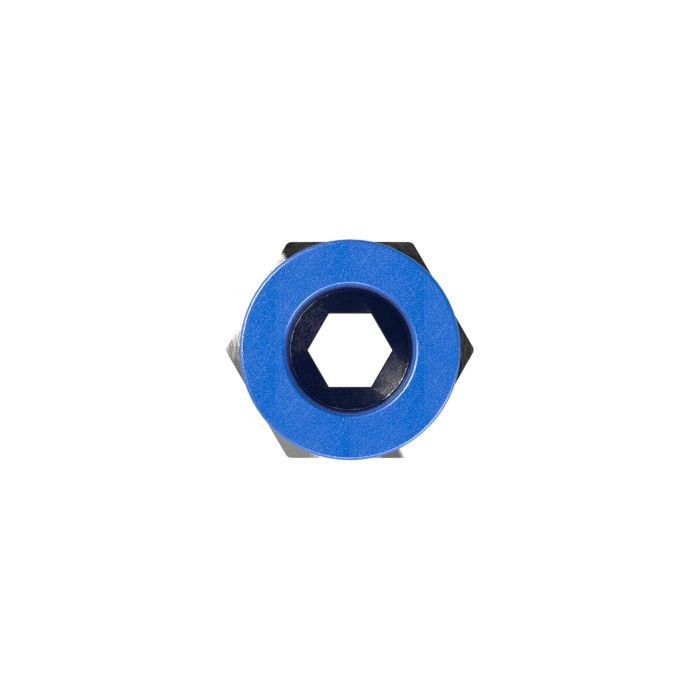

| Internal hexagon | 4 mm |
| L1 | 19.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | EASY |
| Working pressure max. short-term | 15 bar |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[109120] RIEGLER Straight push-in fitting »Blue Series«, G 1/4 o., hose ext. Ø 6](/web/image/product.template/193017/image_128/%5B109120%5D%20RIEGLER%20Straight%20push-in%20fitting%20%C2%BBBlue%20Series%C2%AB%2C%20G%201-4%20o.%2C%20hose%20ext.%20%C3%98%206?unique=de92a7a)
|
Type number: 122.014-6 |
0.86 € | |
![[109126] RIEGLER Straight push-in fitting »Blue Series«, G 3/8 o., hose ext. Ø 10](/web/image/product.template/193023/image_128/%5B109126%5D%20RIEGLER%20Straight%20push-in%20fitting%20%C2%BBBlue%20Series%C2%AB%2C%20G%203-8%20o.%2C%20hose%20ext.%20%C3%98%2010?unique=6fa06b3)
|
Type number: 122.038-10 |
1.25 € | |
![[109125] RIEGLER Straight push-in fitting »Blue Series«, G 3/8 o., hose ext. Ø 8](/web/image/product.template/193022/image_128/%5B109125%5D%20RIEGLER%20Straight%20push-in%20fitting%20%C2%BBBlue%20Series%C2%AB%2C%20G%203-8%20o.%2C%20hose%20ext.%20%C3%98%208?unique=0202ea3)
|
Type number: 122.038-8 |
1.01 € | |
![[109129] RIEGLER Straight push-in fitting »Blue Series«, G 1/2 o., hose ext. Ø 6](/web/image/product.template/193026/image_128/%5B109129%5D%20RIEGLER%20Straight%20push-in%20fitting%20%C2%BBBlue%20Series%C2%AB%2C%20G%201-2%20o.%2C%20hose%20ext.%20%C3%98%206?unique=9efb535)
|
Type number: 122.012-6 |
1.77 € | |
![[109127] RIEGLER Straight push-in fitting »Blue Series«, G 3/8 o., hose ext. Ø 12](/web/image/product.template/193024/image_128/%5B109127%5D%20RIEGLER%20Straight%20push-in%20fitting%20%C2%BBBlue%20Series%C2%AB%2C%20G%203-8%20o.%2C%20hose%20ext.%20%C3%98%2012?unique=9efb535)
|
Type number: 122.038-12 |
1.48 € | |

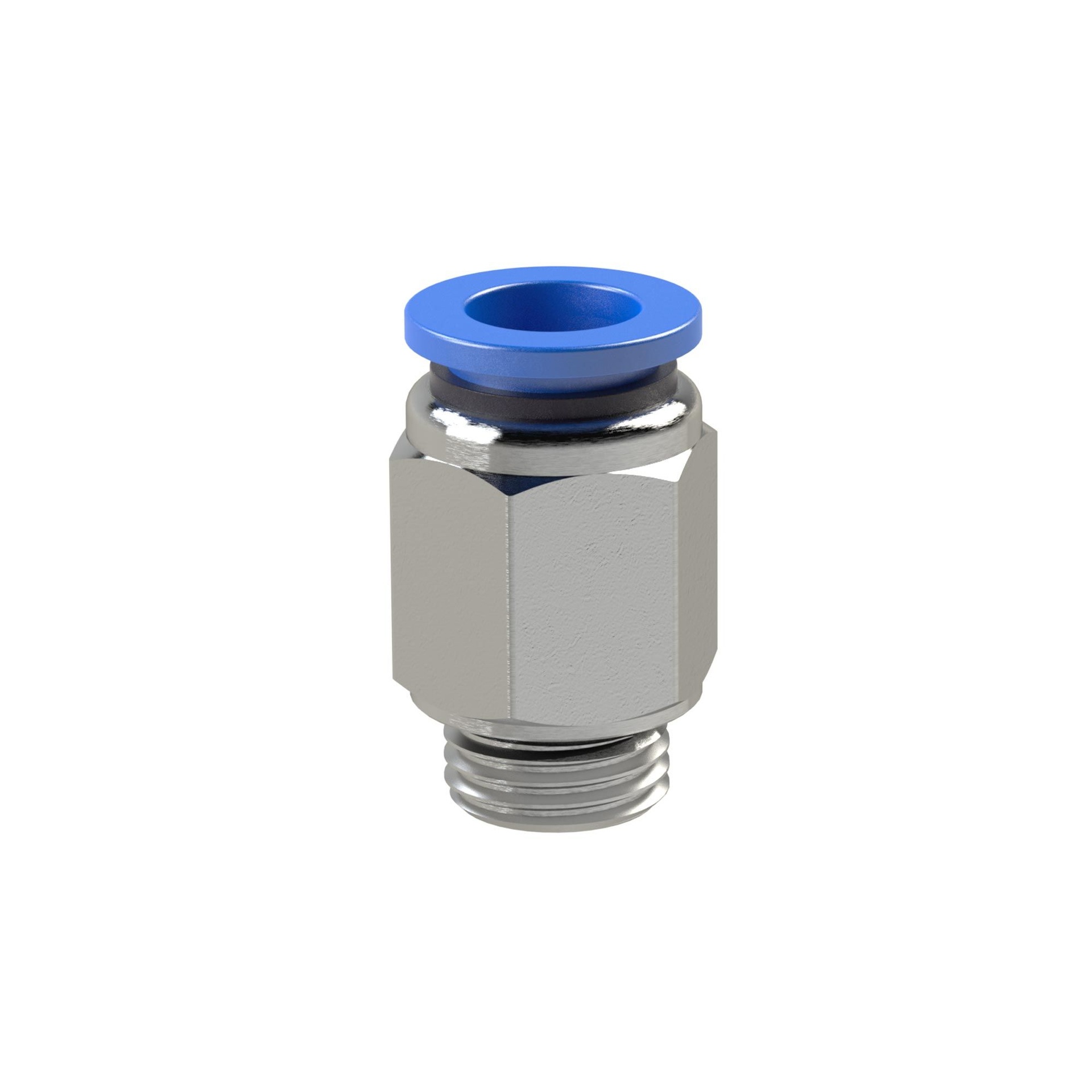

![[135627] RIEGLER Straight push-in fitting »Blue Series«, G 3/8 o., hose ext. Ø 14](/web/image/product.template/206071/image_128/%5B135627%5D%20RIEGLER%20Straight%20push-in%20fitting%20%C2%BBBlue%20Series%C2%AB%2C%20G%203-8%20o.%2C%20hose%20ext.%20%C3%98%2014?unique=9efb535)
|
