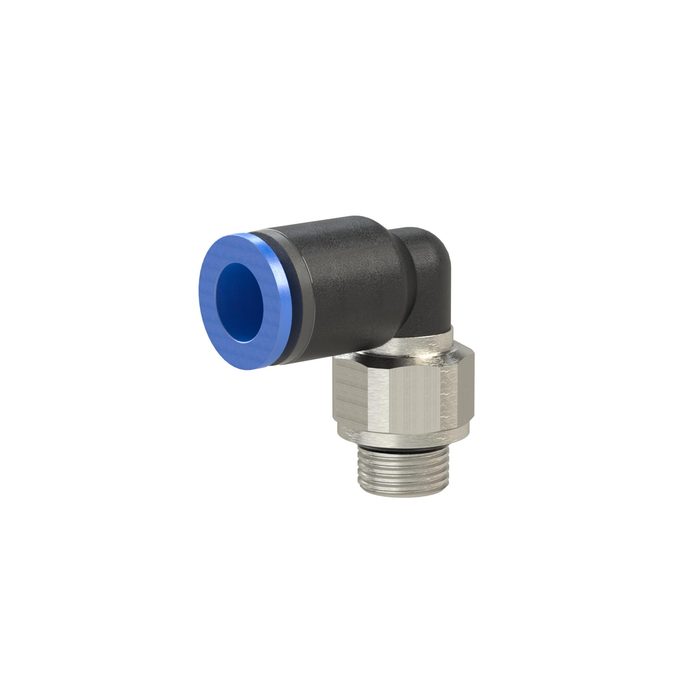

RIEGLER Push-in L-fitting »Blue Series«, rotating, G 1/8 o.
Type number: 125.018-10
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.

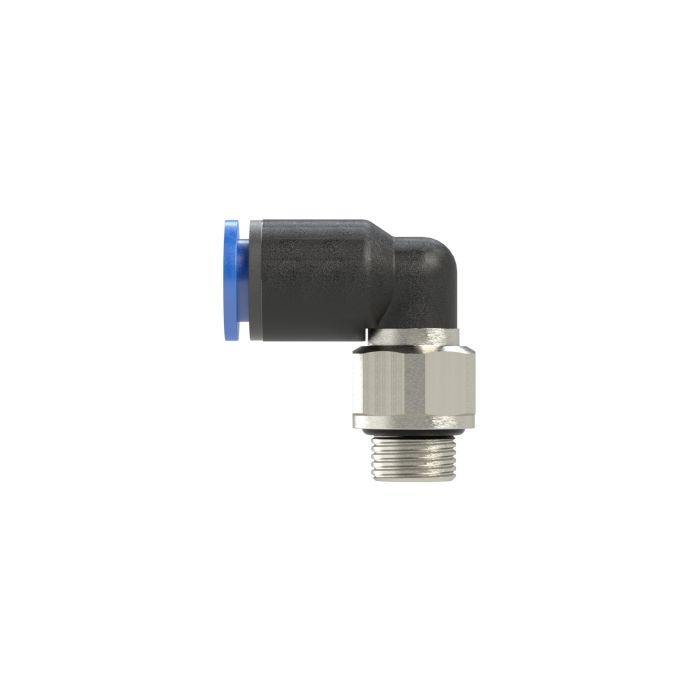

Push-in L-fitting »Blue Series«, rotating, G 1/8 o., for hose exterior Ø 10 mm, pmax short term 15 bar
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | G 1/8 |
| SW | 17 mm |
| for hose outer Ø | 10 mm |
| L1 | 26.9 mm |
| L2 | 23.3 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | EASY |
| Working pressure max. short-term | 15 bar |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[109266] RIEGLER Push-in L-fitting »Blue Series«, rotating, G 1/4 o.](/web/image/product.template/193163/image_128/%5B109266%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20rotating%2C%20G%201-4%20o.?unique=bd5d986)
|
Type number: 125.014-6 |
1.29 € | |
![[109267] RIEGLER Push-in L-fitting »Blue Series«, rotating, G 1/4 o.](/web/image/product.template/193164/image_128/%5B109267%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20rotating%2C%20G%201-4%20o.?unique=0a427f1)
|
Type number: 125.014-8 |
1.45 € | |
![[109265] RIEGLER Push-in L-fitting »Blue Series«, rotating, G 1/4 o.](/web/image/product.template/193162/image_128/%5B109265%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20rotating%2C%20G%201-4%20o.?unique=915866a)
|
Type number: 125.014-4 |
1.26 € | |
![[109261] RIEGLER Push-in L-fitting »Blue Series«, rotating, G 1/8 o.](/web/image/product.template/193158/image_128/%5B109261%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20rotating%2C%20G%201-8%20o.?unique=8964405)
|
Type number: 125.018-4 |
1.13 € | |
![[109262] RIEGLER Push-in L-fitting »Blue Series«, rotating, G 1/8 o.](/web/image/product.template/193159/image_128/%5B109262%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20rotating%2C%20G%201-8%20o.?unique=cb7a44b)
|
Type number: 125.018-6 |
1.19 € | |
![[109263] RIEGLER Push-in L-fitting »Blue Series«, rotating, G 1/8 o.](/web/image/product.template/193160/image_128/%5B109263%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20rotating%2C%20G%201-8%20o.?unique=1b00d8e)
|
Type number: 125.018-8 |
1.38 € | |
![[109271] RIEGLER Push-in L-fitting »Blue Series«, rotating, G 3/8 o.](/web/image/product.template/193168/image_128/%5B109271%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20rotating%2C%20G%203-8%20o.?unique=b84e5fe)
|
Type number: 125.038-8 |
1.65 € | |
![[109272] RIEGLER Push-in L-fitting »Blue Series«, rotating, G 3/8 o.](/web/image/product.template/193169/image_128/%5B109272%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20rotating%2C%20G%203-8%20o.?unique=f36dbcb)
|
Type number: 125.038-10 |
2.05 € | |
![[109270] RIEGLER Push-in L-fitting »Blue Series«, rotating, G 3/8 o.](/web/image/product.template/193167/image_128/%5B109270%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20rotating%2C%20G%203-8%20o.?unique=ef7d7b8)
|
Type number: 125.038-6 |
1.59 € | |
![[135639] RIEGLER Push-in L-fitting »Blue Series«, rotating, G 1/2 o.](/web/image/product.template/206083/image_128/%5B135639%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20rotating%2C%20G%201-2%20o.?unique=437399e)
|
Type number: 125.012-14 |
3.52 € | |
![[109275] RIEGLER Push-in L-fitting »Blue Series«, rotating, G 1/2 o.](/web/image/product.template/193172/image_128/%5B109275%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20rotating%2C%20G%201-2%20o.?unique=f483837)
|
Type number: 125.012-6 |
2.33 € | |
![[109276] RIEGLER Push-in L-fitting »Blue Series«, rotating, G 1/2 o.](/web/image/product.template/193173/image_128/%5B109276%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20rotating%2C%20G%201-2%20o.?unique=b7a1c15)
|
Type number: 125.012-8 |
2.51 € | |

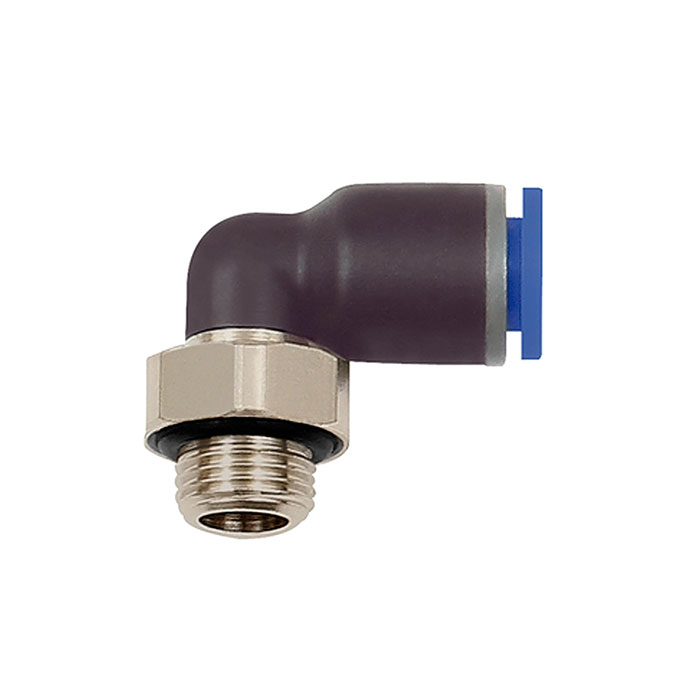

![[109277] RIEGLER Push-in L-fitting »Blue Series«, rotating, G 1/2 o.](/web/image/product.template/193174/image_128/%5B109277%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20rotating%2C%20G%201-2%20o.?unique=394badd)
|
