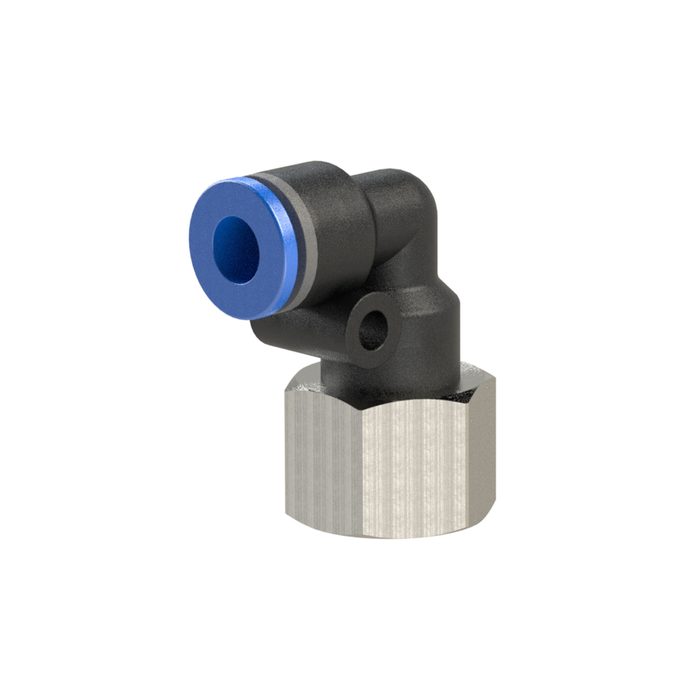

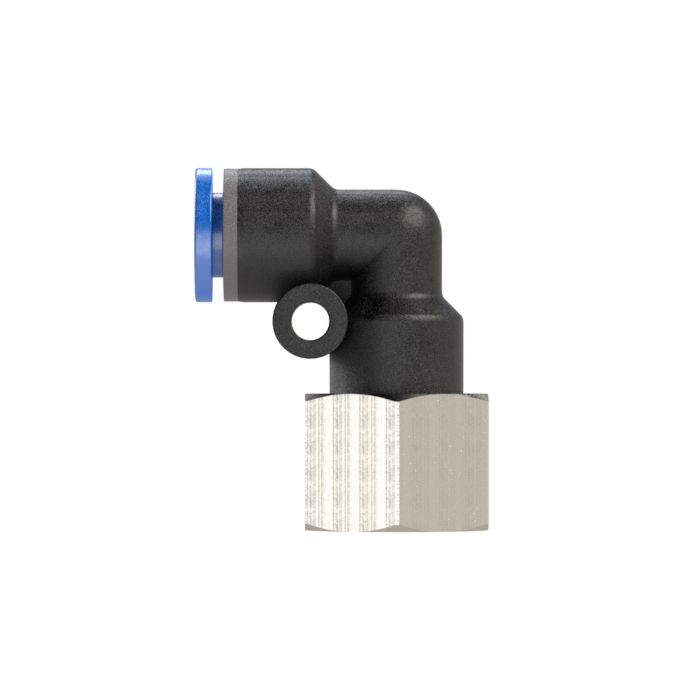

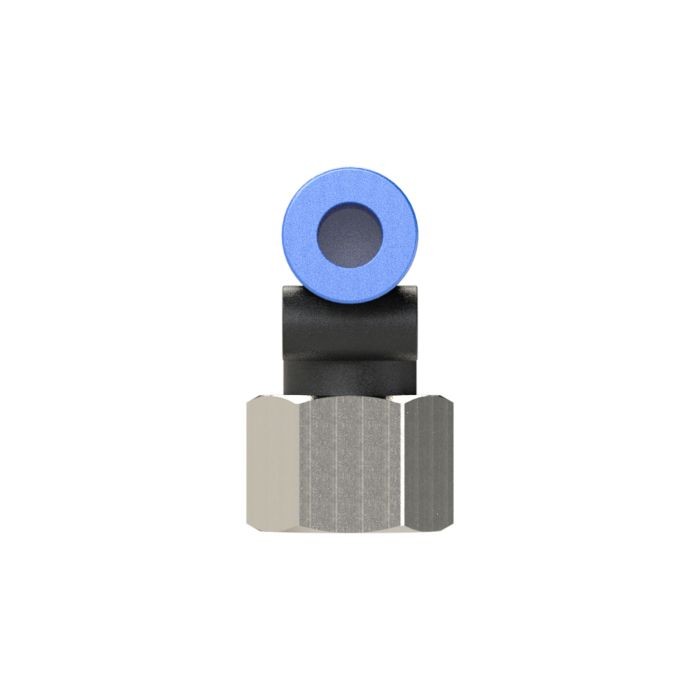

RIEGLER Push-in L-fitting »Blue Series«, rotating, G 3/8 i.
Type number: 168.038-10
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Push-in L-fitting »Blue Series«, rotating, G 3/8 i., for hose exterior Ø 10 mm, pmax short term 15 bar
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | G 3/8 |
| SW | 21 mm |
| for hose outer Ø | 10 mm |
| L1 | 27.2 mm |
| L2 | 36.3 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | EASY |
| Working pressure max. short-term | 15 bar |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[109356] RIEGLER Push-in L-fitting »Blue Series«, rotating, G 1/2 i.](/web/image/product.template/193253/image_128/%5B109356%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20rotating%2C%20G%201-2%20i.?unique=421e692)
|
Type number: 168.012-6 |
2.65 € | |
![[109360] RIEGLER Push-in L-fitting »Blue Series«, rotating, G 1/2 i.](/web/image/product.template/193257/image_128/%5B109360%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20rotating%2C%20G%201-2%20i.?unique=6b718b6)
|
Type number: 168.012-16 |
3.69 € | |
![[109359] RIEGLER Push-in L-fitting »Blue Series«, rotating, G 1/2 i.](/web/image/product.template/193256/image_128/%5B109359%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20rotating%2C%20G%201-2%20i.?unique=5321b1a)
|
Type number: 168.012-12 |
3.50 € | |
![[109358] RIEGLER Push-in L-fitting »Blue Series«, rotating, G 1/2 i.](/web/image/product.template/193255/image_128/%5B109358%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20rotating%2C%20G%201-2%20i.?unique=2b0e1a3)
|
Type number: 168.012-10 |
3.34 € | |
![[109357] RIEGLER Push-in L-fitting »Blue Series«, rotating, G 1/2 i.](/web/image/product.template/193254/image_128/%5B109357%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20rotating%2C%20G%201-2%20i.?unique=73bd1a5)
|
Type number: 168.012-8 |
2.70 € | |
![[109350] RIEGLER Push-in L-fitting »Blue Series«, rotating, G 1/4 i.](/web/image/product.template/193247/image_128/%5B109350%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20rotating%2C%20G%201-4%20i.?unique=72df9d8)
|
Type number: 168.014-12 |
3.09 € | |

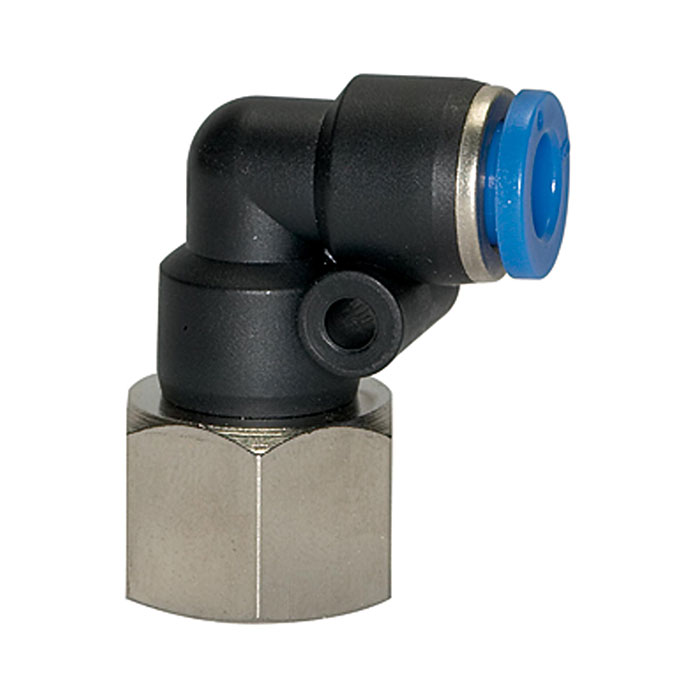

![[109346] RIEGLER Push-in L-fitting »Blue Series«, rotating, G 1/4 i.](/web/image/product.template/193243/image_128/%5B109346%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20rotating%2C%20G%201-4%20i.?unique=050546b)
|
