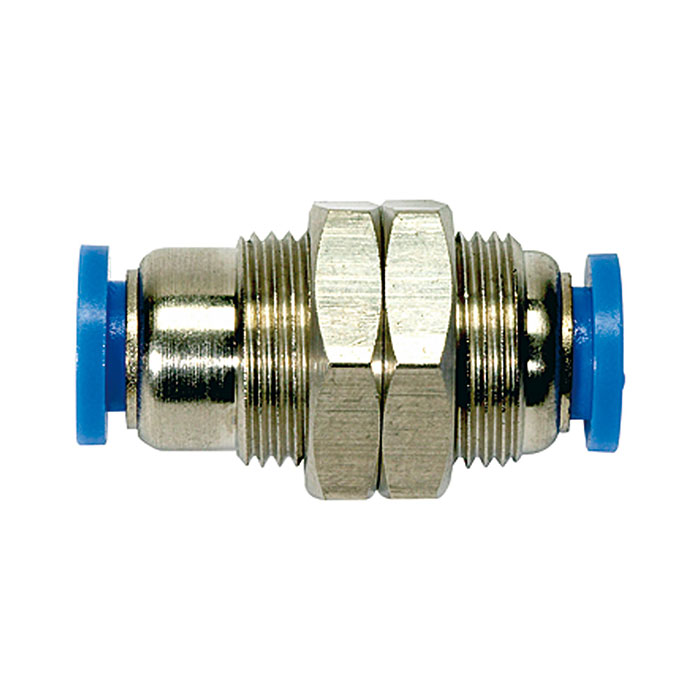

RIEGLER Straight push-in bulkhead connector »Blue Series«, M14x1
Type number: 149.006
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Straight bulkhead connector "Blue series" made of plastic or nickel-plated brass - type 149.006
The RIEGLER straight bulkhead connector "Blue series", M14x1.0, Ø 6 connects compressed air and pneumatic lines securely and tightly. The housing is made of plastic or nickel-plated brass with NBR seals. The operating pressure range is -0.95 bar to 10 bar. The temperature range is between -20 °C and 80 °C. Suitable for compressed air. Secure, tight connection for reliable operation.
Field of application
Typical areas of application: Pneumatic installations and compressed air distribution.
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| Control panel thread | M14x1.0 |
| SW | 17 mm |
| for hose outer Ø | 6 mm |
| L1 | 33.4 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | EASY |
| Working pressure max. short-term | 15 bar |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

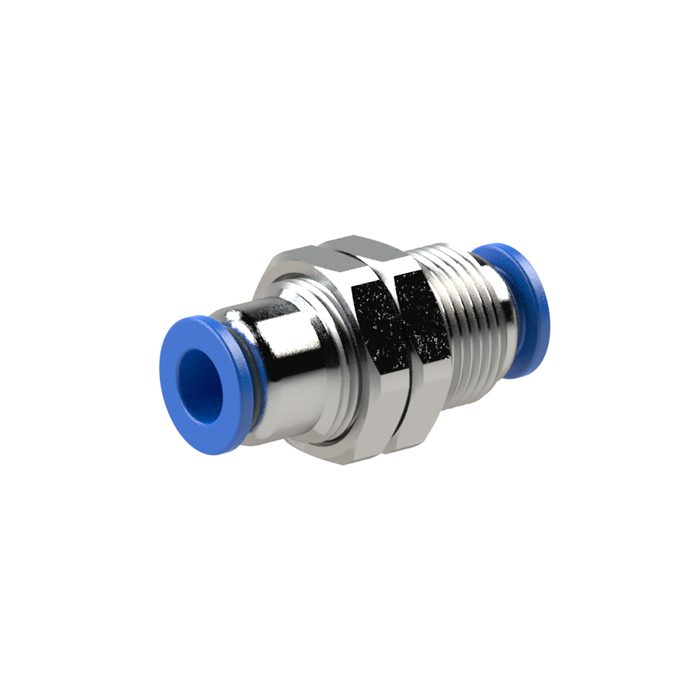

![[109808] RIEGLER Straight push-in bulkhead connector »Blue Series«, M12x1](/web/image/product.template/178734/image_128/%5B109808%5D%20RIEGLER%20Straight%20push-in%20bulkhead%20connector%20%C2%BBBlue%20Series%C2%AB%2C%20M12x1?unique=94afded)
|
Type number: 149.004 |
1.52 € | |
![[109810] RIEGLER Straight push-in bulkhead connector »Blue Series«, M16x1](/web/image/product.template/178736/image_128/%5B109810%5D%20RIEGLER%20Straight%20push-in%20bulkhead%20connector%20%C2%BBBlue%20Series%C2%AB%2C%20M16x1?unique=b12add4)
|
Type number: 149.008 |
1.76 € | |
![[109811] RIEGLER Straight push-in bulkhead connector »Blue Series«, M20x1](/web/image/product.template/178737/image_128/%5B109811%5D%20RIEGLER%20Straight%20push-in%20bulkhead%20connector%20%C2%BBBlue%20Series%C2%AB%2C%20M20x1?unique=45093b3)
|
Type number: 149.010 |
2.30 € | |
![[109812] RIEGLER Straight push-in bulkhead connector »Blue Series«, M22x1](/web/image/product.template/178738/image_128/%5B109812%5D%20RIEGLER%20Straight%20push-in%20bulkhead%20connector%20%C2%BBBlue%20Series%C2%AB%2C%20M22x1?unique=dbad49b)
|
Type number: 149.012 |
2.58 € | |
![[109813] RIEGLER Straight push-in bulkhead connector »Blue Series«, M27x1](/web/image/product.template/178739/image_128/%5B109813%5D%20RIEGLER%20Straight%20push-in%20bulkhead%20connector%20%C2%BBBlue%20Series%C2%AB%2C%20M27x1?unique=b34e37b)
|
Type number: 149.016 |
6.00 € | |
