RIEGLER Locking plug »Blue Series«, plug nipple 12 mm
Type number: 144.012
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Locking plug "Blue series" made of plastic or nickel-plated brass - type 144.012
The RIEGLER "Blue Series" plug connector, plug nipple 12 mm enables the quick, tool-free connection of compressed air lines - securely sealing and immediately loadable. The housing is made of plastic or nickel-plated brass. The operating pressure range is -0.95 bar to 10 bar. The temperature range is between -20 °C and 80 °C. Suitable for compressed air. Quick assembly without tools - saves time during installation and conversion.
Field of application
Typical areas of application: Pneumatic installations, machine piping and automation technology.
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Medium | Compressed air |
| Series | Blue series |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Plug nipple | 12 mm |
| L1 | 43.5 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | EASY |
| Working pressure max. short-term | 15 bar |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

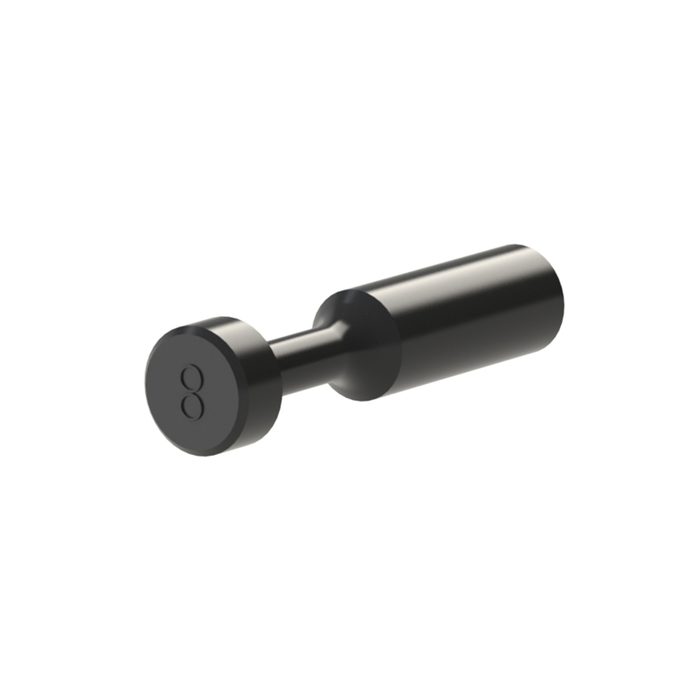

![[109929] RIEGLER Locking plug »Blue Series«, plug nipple 10 mm](/web/image/product.template/178842/image_128/%5B109929%5D%20RIEGLER%20Locking%20plug%20%C2%BBBlue%20Series%C2%AB%2C%20plug%20nipple%2010%20mm?unique=1414f3a)
|
Type number: 144.010 |
0.61 € | |
![[109926] RIEGLER Locking plug »Blue Series«, plug nipple 4 mm](/web/image/product.template/178839/image_128/%5B109926%5D%20RIEGLER%20Locking%20plug%20%C2%BBBlue%20Series%C2%AB%2C%20plug%20nipple%204%20mm?unique=cebaeaa)
|
Type number: 144.004 |
0.46 € | |
![[109927] RIEGLER Locking plug »Blue Series«, plug nipple 6 mm](/web/image/product.template/178840/image_128/%5B109927%5D%20RIEGLER%20Locking%20plug%20%C2%BBBlue%20Series%C2%AB%2C%20plug%20nipple%206%20mm?unique=5235ced)
|
Type number: 144.006 |
0.46 € | |
![[109928] RIEGLER Locking plug »Blue Series«, plug nipple 8 mm](/web/image/product.template/178841/image_128/%5B109928%5D%20RIEGLER%20Locking%20plug%20%C2%BBBlue%20Series%C2%AB%2C%20plug%20nipple%208%20mm?unique=a77794e)
|
Type number: 144.008 |
0.51 € | |

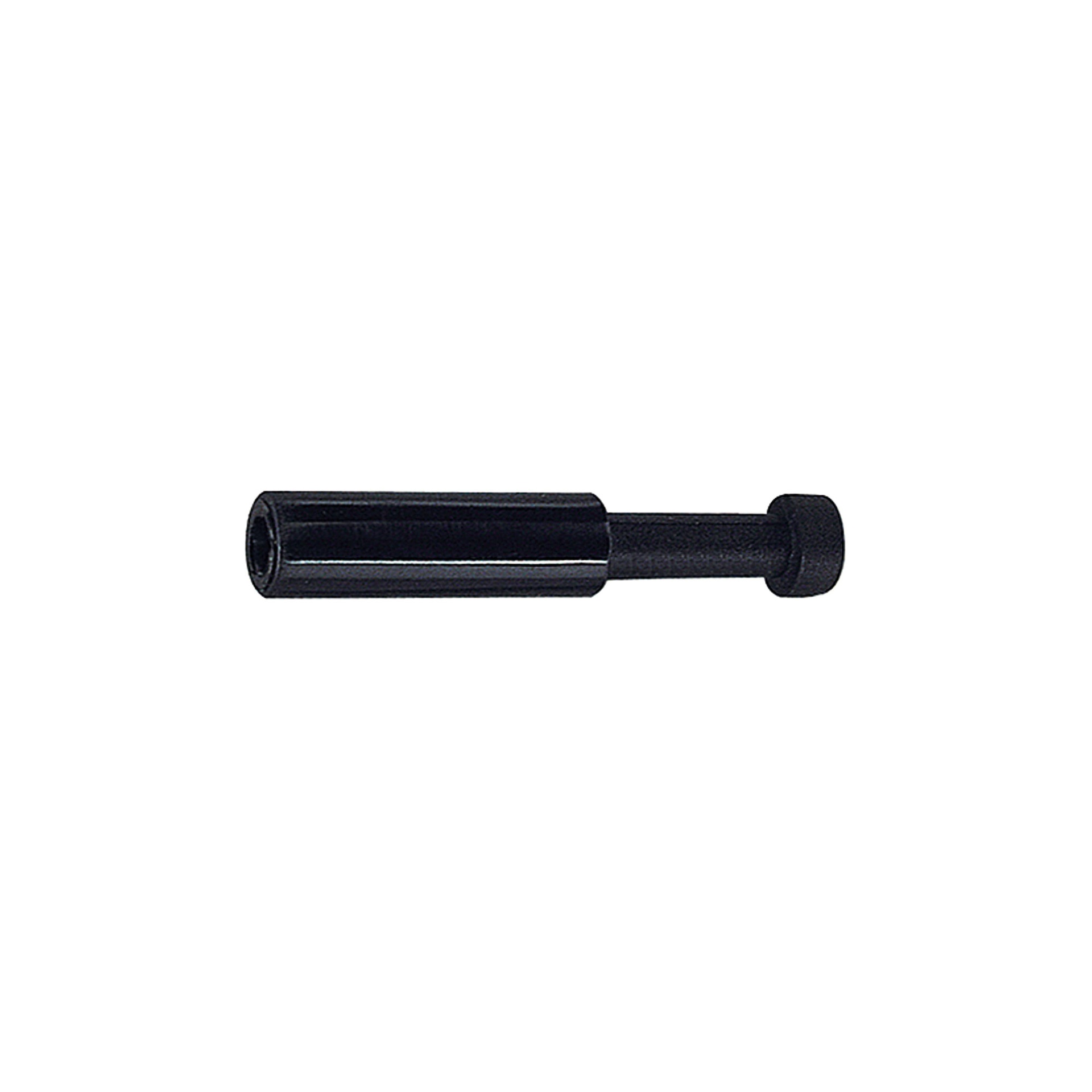

![[135835] RIEGLER Locking plug »Blue Series«, plug nipple 16 mm](/web/image/product.template/206207/image_128/%5B135835%5D%20RIEGLER%20Locking%20plug%20%C2%BBBlue%20Series%C2%AB%2C%20plug%20nipple%2016%20mm?unique=dd0d24c)
|
