RIEGLER Blocking valve »Blue Series«, Plug connector, G 1/2 o., hose Ø 10
Type number: 193.012-10
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Shut-off valve "Blue series" made of plastic or nickel-plated brass - Type 193.012-10
The RIEGLER "Blue Series" shut-off valve, push-fit connection, G 1/2 a., Ø 10, enables quick, tool-free connection of compressed air lines - securely sealing and immediately loadable. The housing is made of plastic or nickel-plated brass with NBR seals. The operating pressure range is 1.5 bar to 10 bar. The temperature range is between -20 °C and 80 °C. Connection thread G 1/2 - suitable for common industrial standards. Suitable for compressed air. Quick assembly without tools - saves time during installation and conversion.
Field of application
Typical areas of application: Pneumatic installations, machine piping and automation technology.
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | 1.5 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | G 1/2 |
| SW | 24 mm |
| for hose outer Ø | 10 mm |

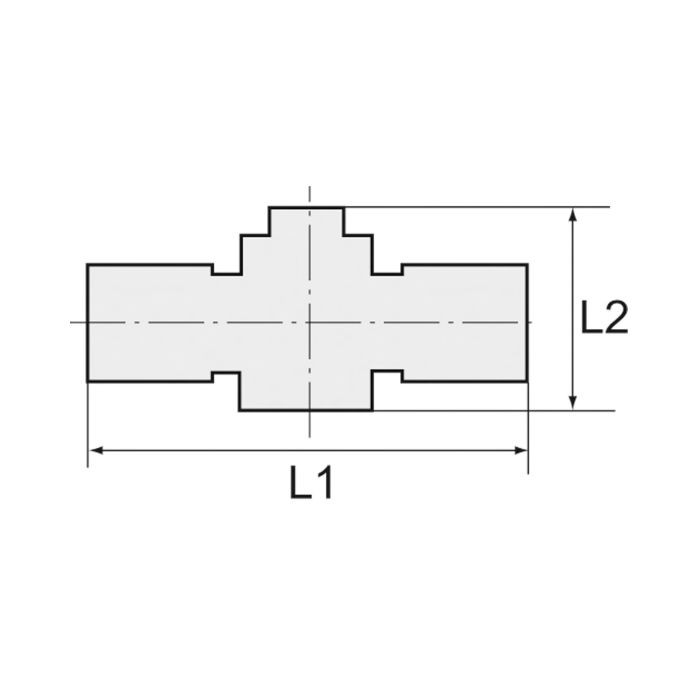

| L1 | 75.9 mm |
| L2 | 47 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | EASY |
| Working pressure max. short-term | 15 bar |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[110085] RIEGLER Blocking valve »Blue Series«, Plug connector, G 1/2 o., hose Ø 12](/web/image/product.template/178997/image_128/%5B110085%5D%20RIEGLER%20Blocking%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Plug%20connector%2C%20G%201-2%20o.%2C%20hose%20%C3%98%2012?unique=a54e669)
|
Type number: 193.012-12 |
12.90 € | |
![[110079] RIEGLER Blocking valve »Blue Series«, Plug connector, G 1/4 o., hose Ø 10](/web/image/product.template/178991/image_128/%5B110079%5D%20RIEGLER%20Blocking%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Plug%20connector%2C%20G%201-4%20o.%2C%20hose%20%C3%98%2010?unique=887d50c)
|
Type number: 193.014-10 |
10.48 € | |
![[110080] RIEGLER Blocking valve »Blue Series«, Plug connector, G 1/4 o., hose Ø 12](/web/image/product.template/178992/image_128/%5B110080%5D%20RIEGLER%20Blocking%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Plug%20connector%2C%20G%201-4%20o.%2C%20hose%20%C3%98%2012?unique=c5b4f45)
|
Type number: 193.014-12 |
12.90 € | |
![[110077] RIEGLER Blocking valve »Blue Series«, Plug connector, G 1/4 o., hose Ø 6](/web/image/product.template/178989/image_128/%5B110077%5D%20RIEGLER%20Blocking%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Plug%20connector%2C%20G%201-4%20o.%2C%20hose%20%C3%98%206?unique=a28e872)
|
Type number: 193.014-6 |
5.87 € | |
![[110078] RIEGLER Blocking valve »Blue Series«, Plug connector, G 1/4 o., hose Ø 8](/web/image/product.template/178990/image_128/%5B110078%5D%20RIEGLER%20Blocking%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Plug%20connector%2C%20G%201-4%20o.%2C%20hose%20%C3%98%208?unique=6b24d34)
|
Type number: 193.014-8 |
7.01 € | |
![[110075] RIEGLER Blocking valve »Blue Series«, Plug connector, G 1/8 o., hose Ø 6](/web/image/product.template/178987/image_128/%5B110075%5D%20RIEGLER%20Blocking%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Plug%20connector%2C%20G%201-8%20o.%2C%20hose%20%C3%98%206?unique=5487588)
|
Type number: 193.018-6 |
5.37 € | |
![[110076] RIEGLER Blocking valve »Blue Series«, Plug connector, G 1/8 o., hose Ø 8](/web/image/product.template/178988/image_128/%5B110076%5D%20RIEGLER%20Blocking%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Plug%20connector%2C%20G%201-8%20o.%2C%20hose%20%C3%98%208?unique=558e9f9)
|
Type number: 193.018-8 |
6.70 € | |
![[110082] RIEGLER Blocking valve »Blue Series«, Plug connector, G 3/8 o., hose Ø 10](/web/image/product.template/178994/image_128/%5B110082%5D%20RIEGLER%20Blocking%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Plug%20connector%2C%20G%203-8%20o.%2C%20hose%20%C3%98%2010?unique=5a0044a)
|
Type number: 193.038-10 |
10.81 € | |
![[110083] RIEGLER Blocking valve »Blue Series«, Plug connector, G 3/8 o., hose Ø 12](/web/image/product.template/178995/image_128/%5B110083%5D%20RIEGLER%20Blocking%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Plug%20connector%2C%20G%203-8%20o.%2C%20hose%20%C3%98%2012?unique=257443f)
|
Type number: 193.038-12 |
12.90 € | |

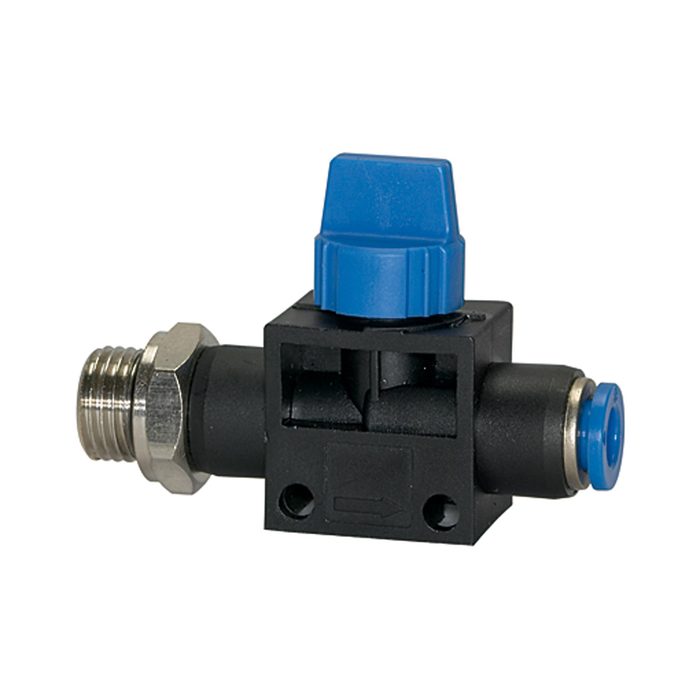

![[110081] RIEGLER Blocking valve »Blue Series«, Plug connector, G 3/8 o., hose Ø 8](/web/image/product.template/178993/image_128/%5B110081%5D%20RIEGLER%20Blocking%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Plug%20connector%2C%20G%203-8%20o.%2C%20hose%20%C3%98%208?unique=eb7eb23)
|
