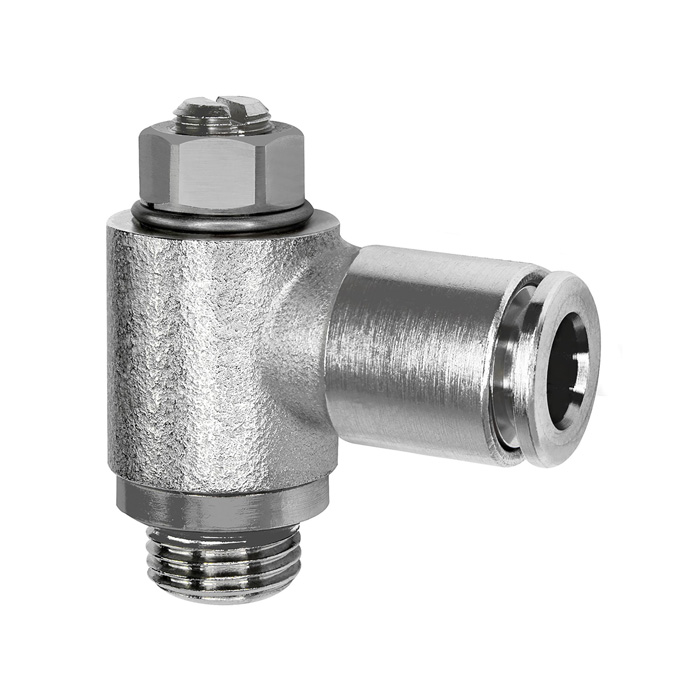

RIEGLER Throttle check valve, supply air, G 1/8, push-fit connection 8
Type number: 342.018-8-D
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
110107EAN :
4047322716055Category :
Unidirectional Flow Control ValvesWeight :
0.03 kgThrottle check valve, supply air (V), slotted screw, G 1/8, push-in connector 8, rotatable, 0 - 10 bar, -20 °C to 80 °C, MS nickel-plated.
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Sealing material | NBR |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 10 bar |
| Base body | Nickel-plated brass |
| Silicone-free | Yes |
| Thread | G 1/8 |
| SW | 9 mm |
| Function | Supply air throttling (V) |
| for hose | 8 mm |
| Connection type | Connection Plug connection |
| B | 31.8 mm |
| C | 23.5 mm |
| Execution | adjustable with slotted screw |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| SCIP message number Supplier | no SCIP No. available |
| Share of SVHC SCIP | no SVHC substance |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | PLUS |
| Construction method | rotatable |
| Stand Material Compliance | 45153 |
