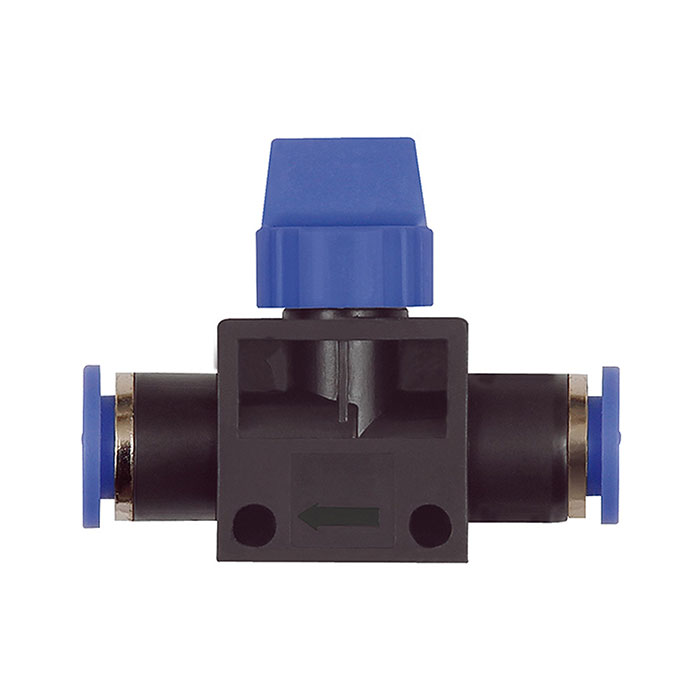

RIEGLER 3/2-way valve »Blue Series«, Plug connector, hose exterior Ø 6
Type number: 233.006
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

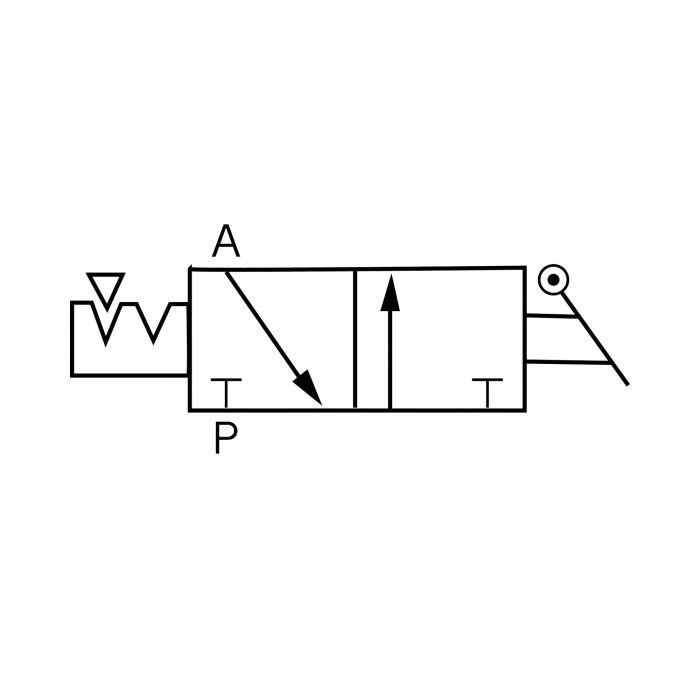

RIEGLER 3/2-way valve "Blue series" made of plastic or nickel-plated brass - Type 233.006
The RIEGLER 3/2-way valve "Blue Series", push-in connection, hose outer Ø 6 enables the quick, tool-free connection of compressed air lines - securely sealing and immediately loadable. The housing is made of plastic or nickel-plated brass with NBR seals. The operating pressure range is 1.5 bar to 10 bar. The temperature range is between -20 °C and 80 °C. Suitable for compressed air. Quick assembly without tools - saves time during installation and conversion.
Field of application
Typical areas of application: Pneumatic installations, machine piping and automation technology.
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | 1.5 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| for hose outer Ø | 6 mm |

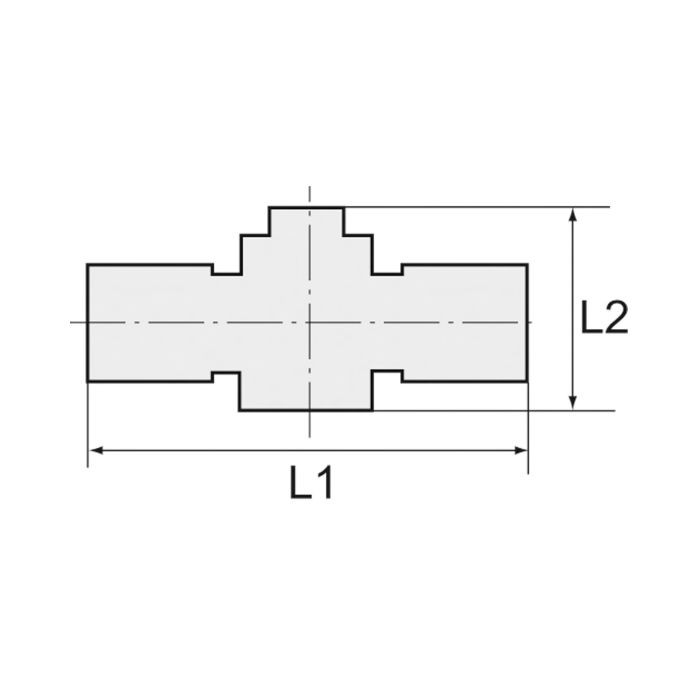

| L1 | 51.6 mm |
| L2 | 41.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | EASY |
| Working pressure max. short-term | 15 bar |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[110158] RIEGLER 3/2-way valve »Blue Series«, Plug connector, hose exterior Ø 10](/web/image/product.template/179069/image_128/%5B110158%5D%20RIEGLER%203-2-way%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Plug%20connector%2C%20hose%20exterior%20%C3%98%2010?unique=98b5a19)
|
Type number: 233.010 |
6.39 € | |
![[110159] RIEGLER 3/2-way valve »Blue Series«, Plug connector, hose exterior Ø 12](/web/image/product.template/179070/image_128/%5B110159%5D%20RIEGLER%203-2-way%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Plug%20connector%2C%20hose%20exterior%20%C3%98%2012?unique=939966d)
|
Type number: 233.012 |
7.27 € | |

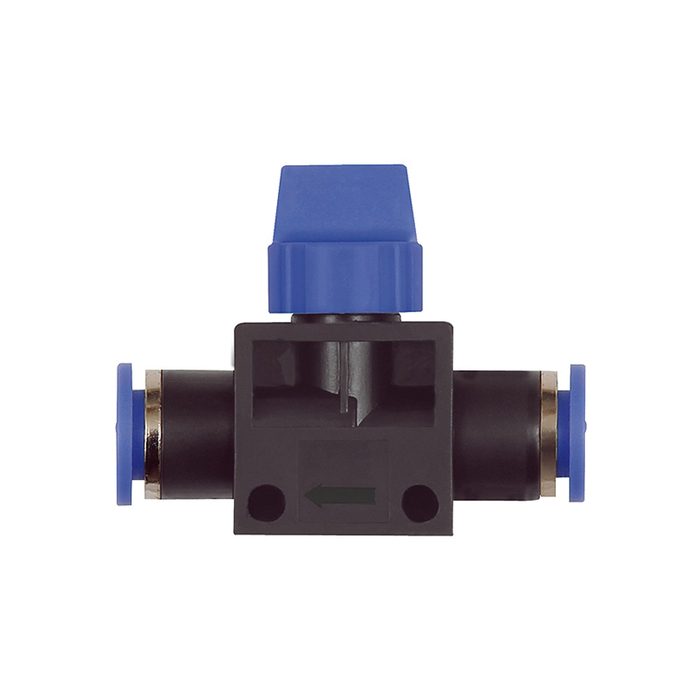

![[110157] RIEGLER 3/2-way valve »Blue Series«, Plug connector, hose exterior Ø 8](/web/image/product.template/179068/image_128/%5B110157%5D%20RIEGLER%203-2-way%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Plug%20connector%2C%20hose%20exterior%20%C3%98%208?unique=3f022e5)
|
