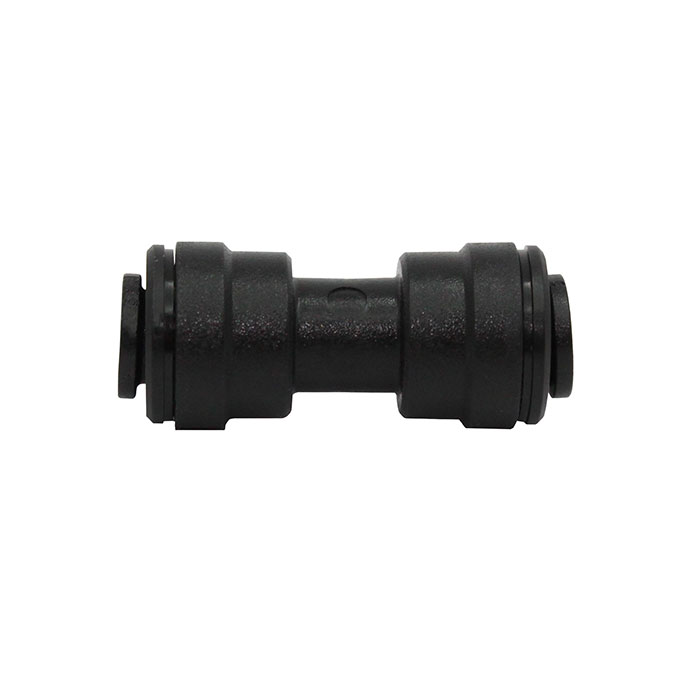

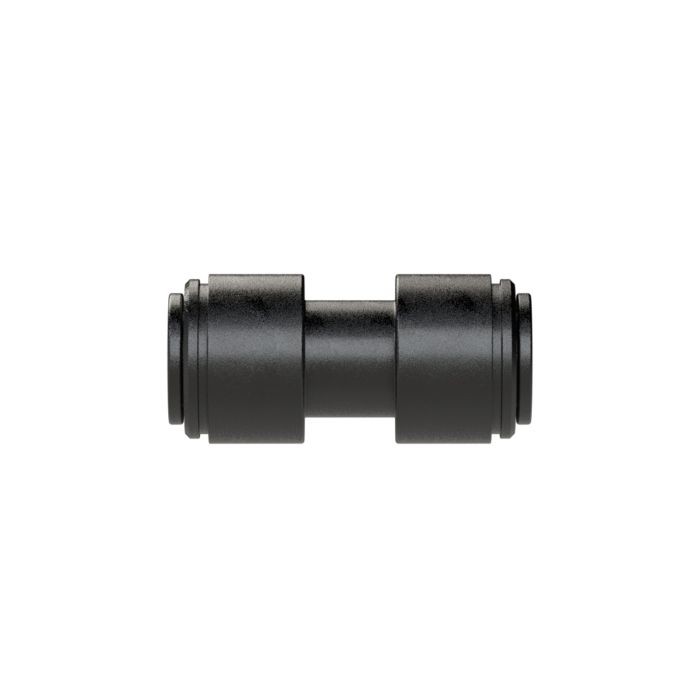

RIEGLER Straight connector POM, for hose exterior Ø 6 mm
Type number: 67.006
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Straight connector POM made of acetal polymer (POM), for compressed air distribution, max. 16 bar - Type 67.006
The RIEGLER straight connector POM, for hose outer Ø 6 mm forms the fixed line network for compressed air distribution. The housing is made of acetal polymer (POM). The operating pressure range is -0.95 bar to 16 bar. Durable and low-leakage.
Field of application
Typical areas of application: Stationary compressed air distribution.
| Working pressure min. | -0.95 bar |
| Working pressure max. | 16 bar |
| Material | Acetal polymer (POM) |
| Operating temperature min. with air | -20 °C |
| Max. operating temperature in air | 65 °C |
| Operating temperature min. with water | 1 °C |
| Max. operating temperature with water | 65 °C |
| for hose outer Ø | 6 mm |
| L1 | 35 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[110282] RIEGLER Straight connector POM, for hose exterior Ø 10 mm](/web/image/product.template/179193/image_128/%5B110282%5D%20RIEGLER%20Straight%20connector%20POM%2C%20for%20hose%20exterior%20%C3%98%2010%20mm?unique=abd30d5)
|
Type number: 67.010 |
3.22 € | |
![[110283] RIEGLER Straight connector POM, for hose exterior Ø 12 mm](/web/image/product.template/179194/image_128/%5B110283%5D%20RIEGLER%20Straight%20connector%20POM%2C%20for%20hose%20exterior%20%C3%98%2012%20mm?unique=9d84a4f)
|
Type number: 67.012 |
3.63 € | |
![[110284] RIEGLER Straight connector POM, for hose exterior Ø 15 mm](/web/image/product.template/179195/image_128/%5B110284%5D%20RIEGLER%20Straight%20connector%20POM%2C%20for%20hose%20exterior%20%C3%98%2015%20mm?unique=599dc91)
|
Type number: 67.015 |
4.27 € | |
![[110285] RIEGLER Straight connector POM, for hose exterior Ø 18 mm](/web/image/product.template/179196/image_128/%5B110285%5D%20RIEGLER%20Straight%20connector%20POM%2C%20for%20hose%20exterior%20%C3%98%2018%20mm?unique=90cd626)
|
Type number: 67.018 |
6.58 € | |
![[110286] RIEGLER Straight connector POM, for hose exterior Ø 22 mm](/web/image/product.template/179197/image_128/%5B110286%5D%20RIEGLER%20Straight%20connector%20POM%2C%20for%20hose%20exterior%20%C3%98%2022%20mm?unique=ec01a0f)
|
Type number: 67.022 |
7.57 € | |
![[110287] RIEGLER Straight connector POM, for hose exterior Ø 28 mm](/web/image/product.template/179198/image_128/%5B110287%5D%20RIEGLER%20Straight%20connector%20POM%2C%20for%20hose%20exterior%20%C3%98%2028%20mm?unique=c9899bc)
|
Type number: 67.028 |
15.18 € | |

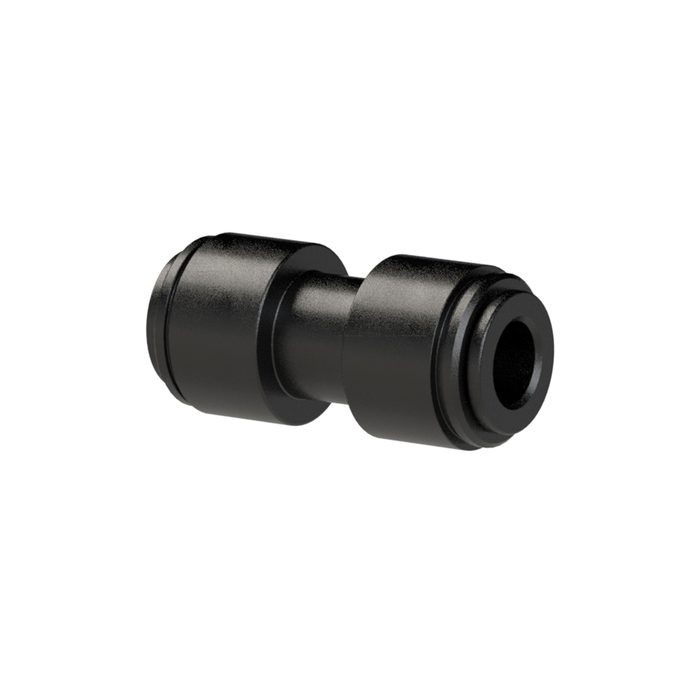

![[110278] RIEGLER Straight connector POM, for hose exterior Ø 4 mm](/web/image/product.template/179189/image_128/%5B110278%5D%20RIEGLER%20Straight%20connector%20POM%2C%20for%20hose%20exterior%20%C3%98%204%20mm?unique=500b655)
|
