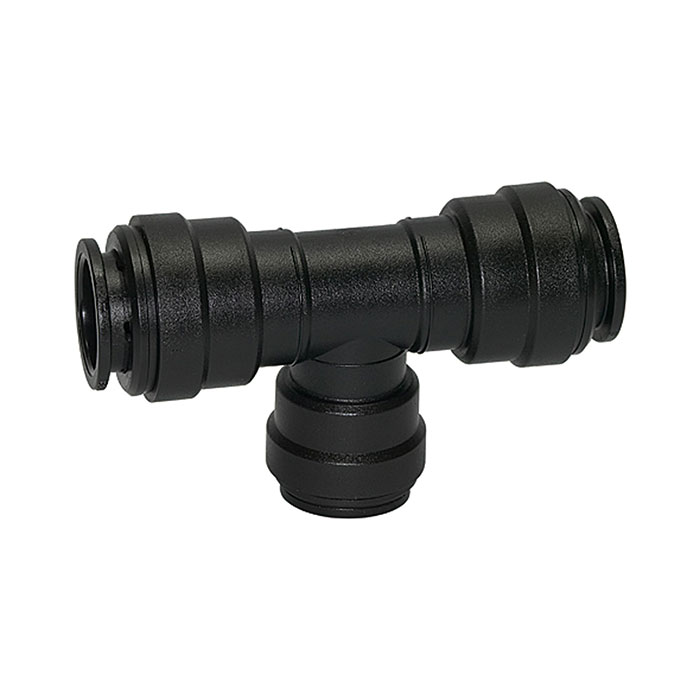

RIEGLER T-reducer connector POM, for hose exterior Ø1 18 mm / Ø2 15 mm
Type number: 70.018-15
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
T-Reduzierverbinder POM, für Schlauch-Außen-Ø1 18 mm, für Schlauch-Außen-Ø2 15 mm, Arbeitsdruck -0,95 bis 10 bar
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Acetal polymer (POM) |
| Operating temperature min. with air | -20 °C |
| Max. operating temperature in air | 65 °C |
| Operating temperature min. with water | 1 °C |
| Max. operating temperature with water | 65 °C |
| for hose outer Ø2 | 15 mm |

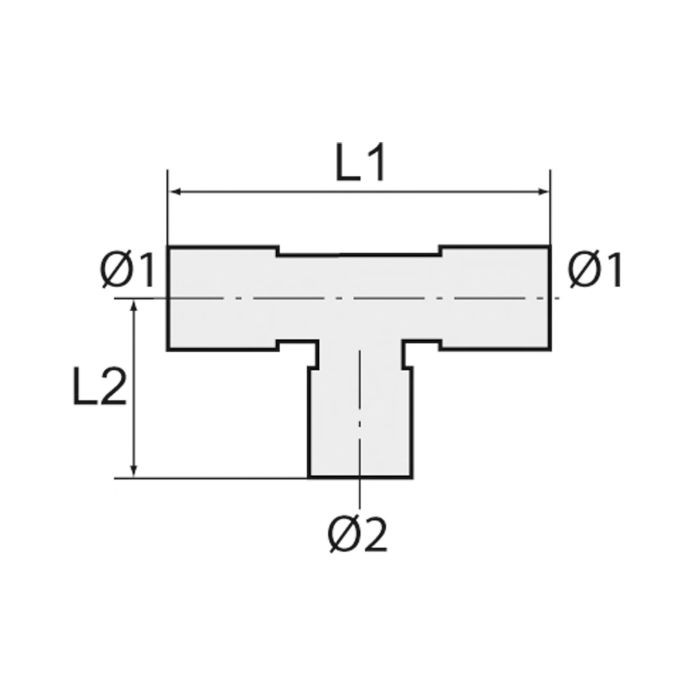

| L1 | 84.5 mm |
| L2 | 37.9 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| for hose outer Ø1 | 18 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

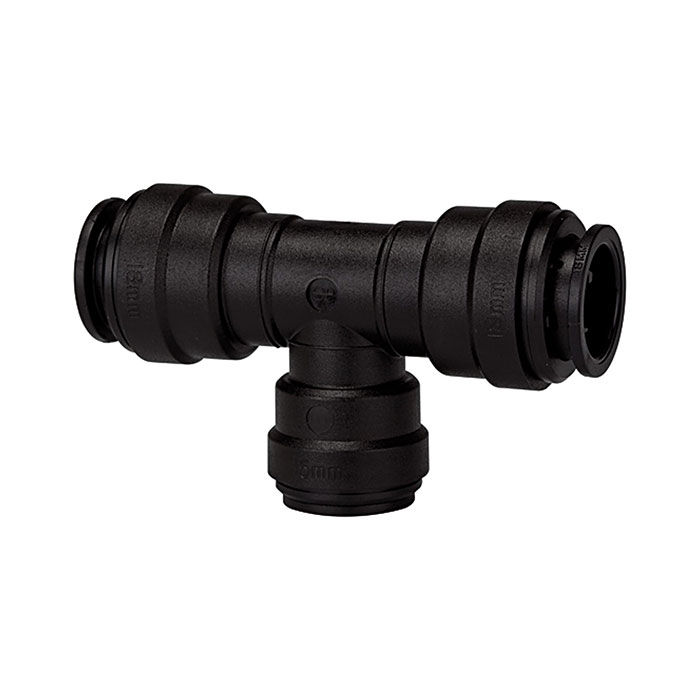

![[110327] RIEGLER T-reducer connector POM, for hose exterior Ø1 22 mm / Ø2 15 mm](/web/image/product.template/179238/image_128/%5B110327%5D%20RIEGLER%20T-reducer%20connector%20POM%2C%20for%20hose%20exterior%20%C3%981%2022%20mm%20-%20%C3%982%2015%20mm?unique=fc558dc)
|
