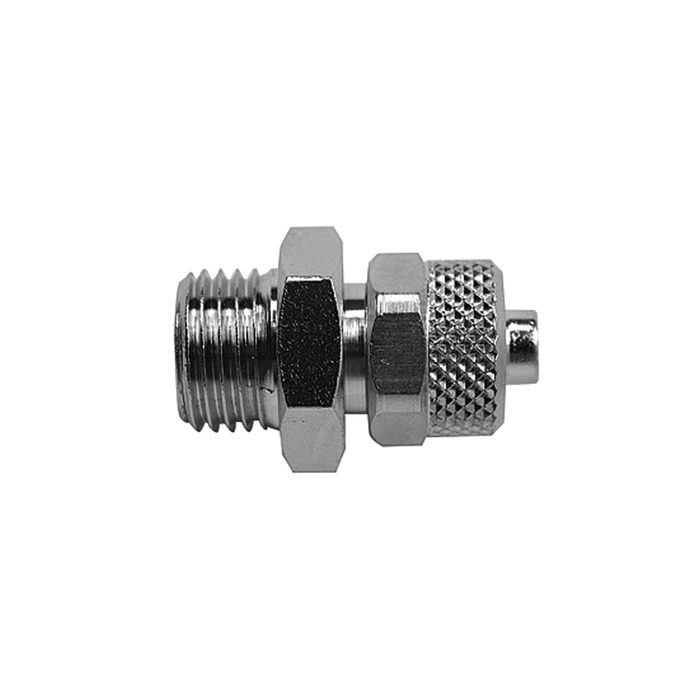

RIEGLER Straight screw-in fitting without O-ring, G 1/8 o., for hose 10/8
Type number: 11.118-10
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Straight screw-in fitting made of nickel-plated brass, for pneumatic installation - Type 11.118-10
The RIEGLER straight screw-in fitting, G 1/8 a., for hose 10/8 connects compressed air hoses and pipes quickly and securely by simply screwing them in. The housing is made of nickel-plated brass. Designed for a maximum operating pressure of 18 bar. The operating temperature is between -20 °C and 300 °C. G 1/8 connection thread - suitable for common industry standards. Simple assembly and disassembly for flexible pipe routing.
Field of application
Typical areas of application: Compressed air installations and pneumatic systems.
| Working pressure max. | 18 bar |
| Material | Nickel-plated brass |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 300 °C |
| Thread | G 1/8 |
| SW | 14 mm |
| for hose | 10/8 mm |
| L1 | 27 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| O-ring | without |
| Class name | EASY |
