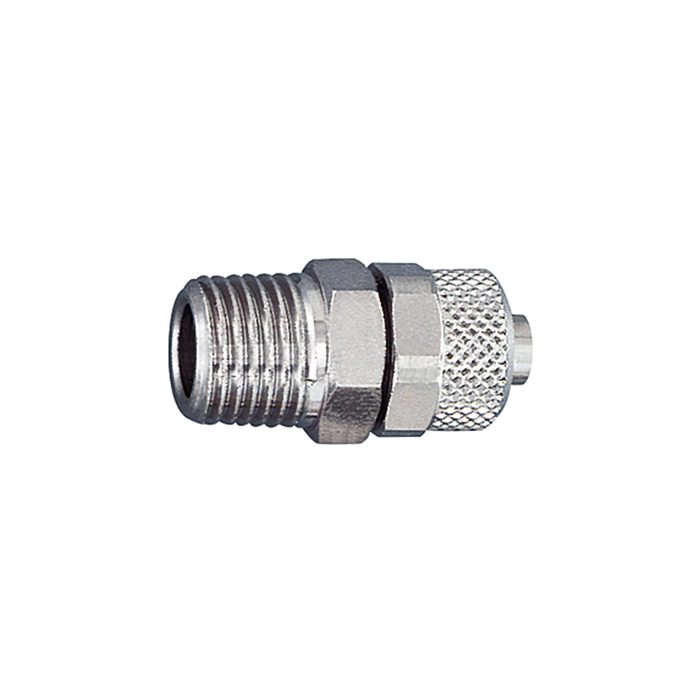

RIEGLER Straight screw-in fitting, ET conical, R 1/2, for hose 12/10
Type number: 11.612-12
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Straight screw-in fitting, ET conical, R 1/2, for hose 12/10 mm, AF 22, Working pressure max. 18 bar, nickel-plated brass
| Working pressure max. | 18 bar |
| Material | Nickel-plated brass |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 300 °C |
| Thread | R 1/2 |
| SW | 22 mm |
| for hose | 12/10 mm |
| L1 | 38 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| O-ring | without |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[110499] RIEGLER Straight screw-in fitting, ET conical, R 1/2, for hose 10/8](/web/image/product.template/181429/image_128/%5B110499%5D%20RIEGLER%20Straight%20screw-in%20fitting%2C%20ET%20conical%2C%20R%201-2%2C%20for%20hose%2010-8?unique=5923536)
|
Type number: 11.612-10 |
2.43 € | |

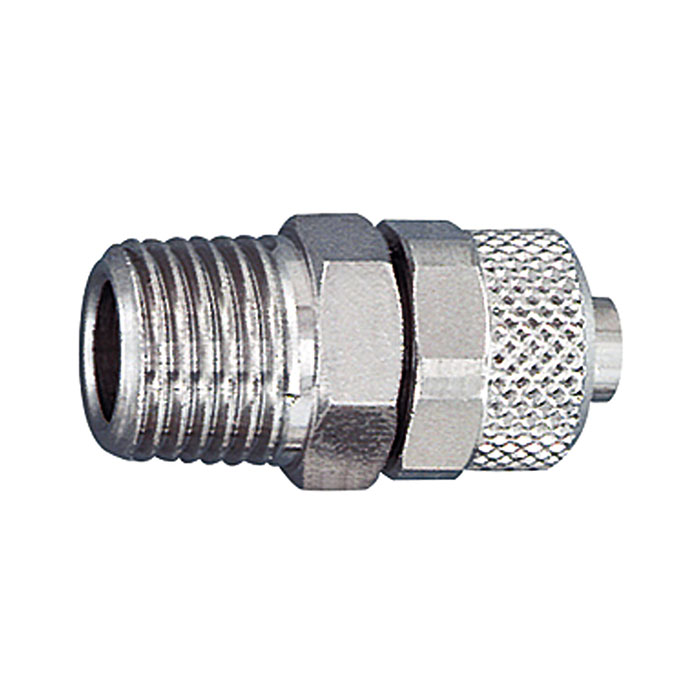

![[110498] RIEGLER Straight screw-in fitting, ET conical, R 1/2, for hose 8/6](/web/image/product.template/181428/image_128/%5B110498%5D%20RIEGLER%20Straight%20screw-in%20fitting%2C%20ET%20conical%2C%20R%201-2%2C%20for%20hose%208-6?unique=8e6450b)
|
Type number: 11.612-8 |
2.14 € | |
![[110493] RIEGLER Straight screw-in fitting, ET conical, R 1/4, for hose 10/8](/web/image/product.template/181423/image_128/%5B110493%5D%20RIEGLER%20Straight%20screw-in%20fitting%2C%20ET%20conical%2C%20R%201-4%2C%20for%20hose%2010-8?unique=8b336a4)
|
Type number: 11.614-10 |
1.46 € | |
![[110491] RIEGLER Straight screw-in fitting, ET conical, R 1/4, for hose 6/4](/web/image/product.template/181421/image_128/%5B110491%5D%20RIEGLER%20Straight%20screw-in%20fitting%2C%20ET%20conical%2C%20R%201-4%2C%20for%20hose%206-4?unique=9b9d4ca)
|
Type number: 11.614-6 |
1.20 € | |
![[110492] RIEGLER Straight screw-in fitting, ET conical, R 1/4, for hose 8/6](/web/image/product.template/181422/image_128/%5B110492%5D%20RIEGLER%20Straight%20screw-in%20fitting%2C%20ET%20conical%2C%20R%201-4%2C%20for%20hose%208-6?unique=2c3d496)
|
Type number: 11.614-8 |
1.30 € | |
![[110490] RIEGLER Straight screw-in fitting, ET conical, R 1/8, for hose 10/8](/web/image/product.template/181420/image_128/%5B110490%5D%20RIEGLER%20Straight%20screw-in%20fitting%2C%20ET%20conical%2C%20R%201-8%2C%20for%20hose%2010-8?unique=c92f2a5)
|
Type number: 11.618-10 |
1.48 € | |
![[110486] RIEGLER Straight screw-in fitting, ET conical, R 1/8, for hose 4/2](/web/image/product.template/181416/image_128/%5B110486%5D%20RIEGLER%20Straight%20screw-in%20fitting%2C%20ET%20conical%2C%20R%201-8%2C%20for%20hose%204-2?unique=c729018)
|
Type number: 11.618-4 |
1.37 € | |
![[110487] RIEGLER Straight screw-in fitting, ET conical, R 1/8, for hose 5/3](/web/image/product.template/181417/image_128/%5B110487%5D%20RIEGLER%20Straight%20screw-in%20fitting%2C%20ET%20conical%2C%20R%201-8%2C%20for%20hose%205-3?unique=9878439)
|
Type number: 11.618-5 |
1.13 € | |
![[110488] RIEGLER Straight screw-in fitting, ET conical, R 1/8, for hose 6/4](/web/image/product.template/181418/image_128/%5B110488%5D%20RIEGLER%20Straight%20screw-in%20fitting%2C%20ET%20conical%2C%20R%201-8%2C%20for%20hose%206-4?unique=1ad965e)
|
Type number: 11.618-6 |
1.07 € | |
![[110489] RIEGLER Straight screw-in fitting, ET conical, R 1/8, for hose 8/6](/web/image/product.template/181419/image_128/%5B110489%5D%20RIEGLER%20Straight%20screw-in%20fitting%2C%20ET%20conical%2C%20R%201-8%2C%20for%20hose%208-6?unique=f3f59d7)
|
Type number: 11.618-8 |
1.11 € | |
![[110496] RIEGLER Straight screw-in fitting, ET conical, R 3/8, for hose 10/8](/web/image/product.template/181426/image_128/%5B110496%5D%20RIEGLER%20Straight%20screw-in%20fitting%2C%20ET%20conical%2C%20R%203-8%2C%20for%20hose%2010-8?unique=ee501ce)
|
Type number: 11.638-10 |
1.89 € | |
![[110497] RIEGLER Straight screw-in fitting, ET conical, R 3/8, for hose 12/10](/web/image/product.template/181427/image_128/%5B110497%5D%20RIEGLER%20Straight%20screw-in%20fitting%2C%20ET%20conical%2C%20R%203-8%2C%20for%20hose%2012-10?unique=63aa73c)
|
Type number: 11.638-12 |
2.01 € | |
![[110494] RIEGLER Straight screw-in fitting, ET conical, R 3/8, for hose 6/4](/web/image/product.template/181424/image_128/%5B110494%5D%20RIEGLER%20Straight%20screw-in%20fitting%2C%20ET%20conical%2C%20R%203-8%2C%20for%20hose%206-4?unique=74f7601)
|
Type number: 11.638-6 |
1.52 € | |
![[110495] RIEGLER Straight screw-in fitting, ET conical, R 3/8, for hose 8/6](/web/image/product.template/181425/image_128/%5B110495%5D%20RIEGLER%20Straight%20screw-in%20fitting%2C%20ET%20conical%2C%20R%203-8%2C%20for%20hose%208-6?unique=d6f0a16)
|
Type number: 11.638-8 |
1.52 € | |
