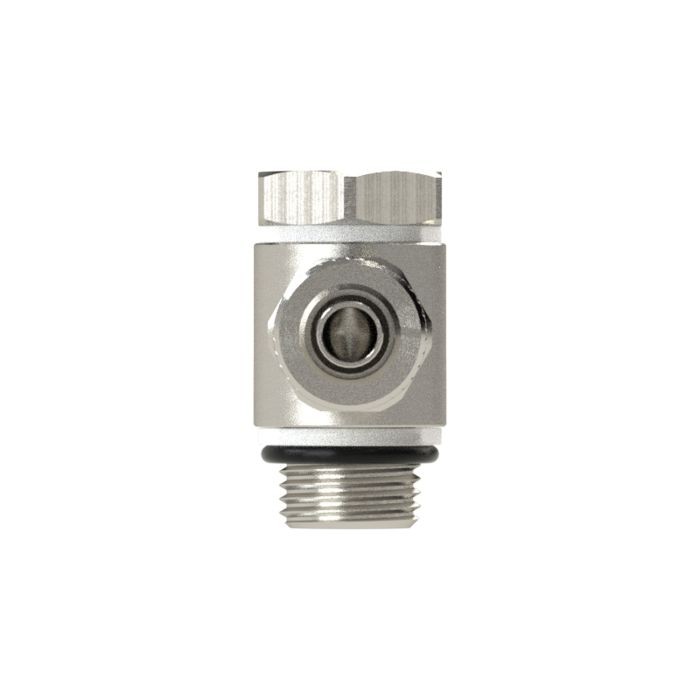

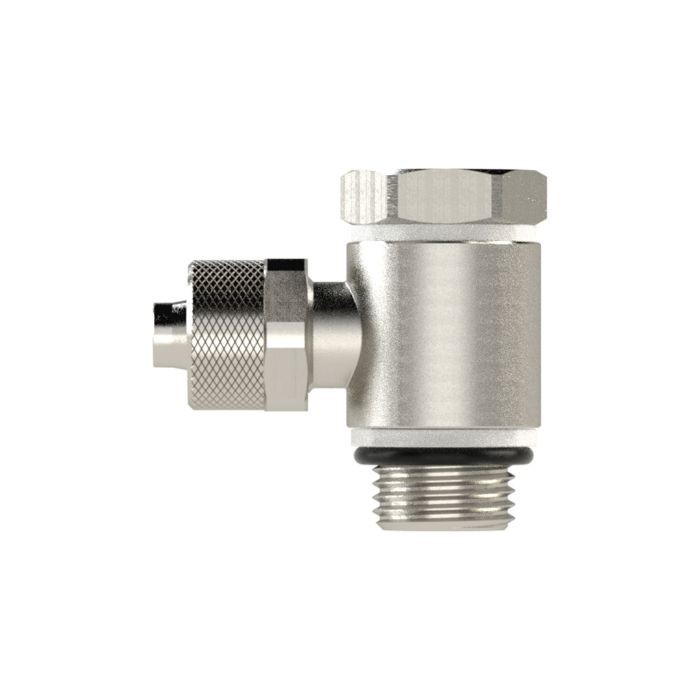

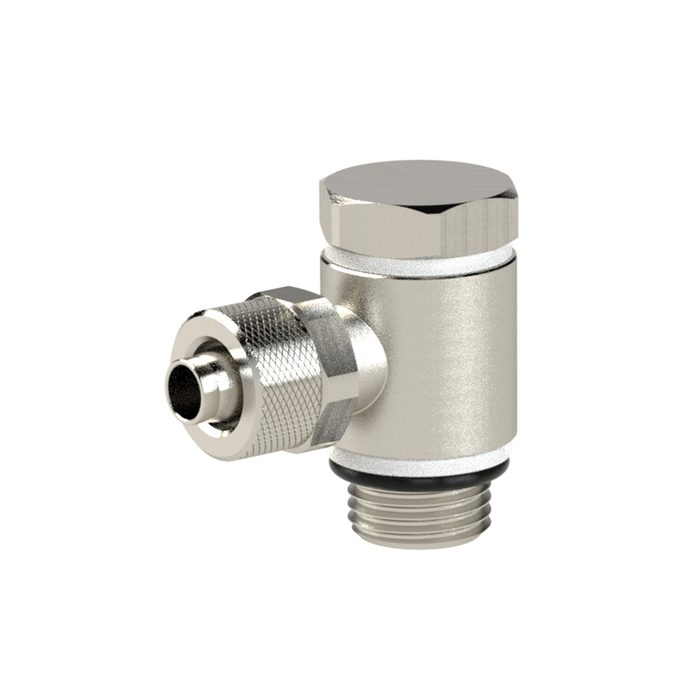

RIEGLER Angled pivot fitting with O-ring, G 3/8 o., for hose 6/4 mm
Type number: 13.638-6
EAN: 4047322024693
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Winkel-Schwenkverschraubung mit O-Ring, G 3/8 a., für Schlauch 6/4 mm, SW 19, Arbeitsdruck max. 18 bar, Messing vernickelt
| Working pressure max. | 18 bar |
| Material | Nickel-plated brass |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 80 °C |
| Thread | G 3/8 |
| SW | 19 mm |
| for hose | 6/4 mm |
| Hexagon | Exterior |

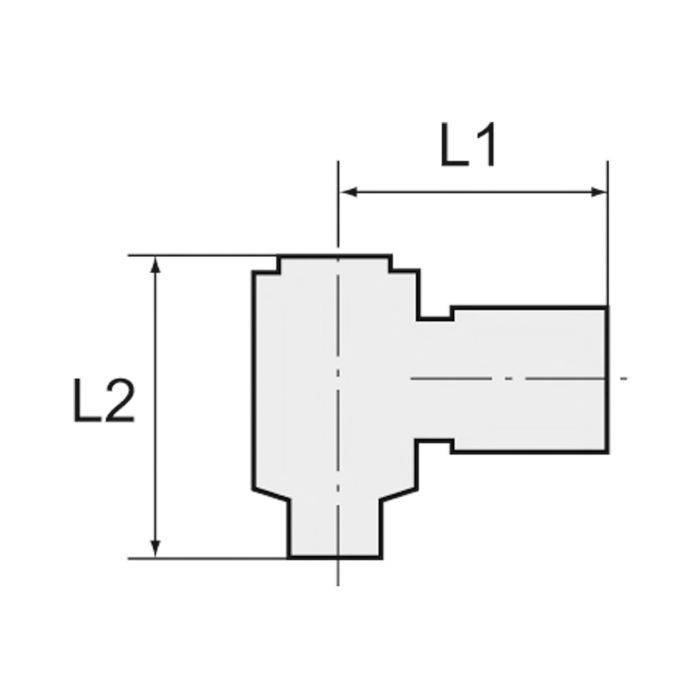

| L1 | 26 mm |
| L2 | 36 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| O-ring | NBR |
| Class name | EASY |
