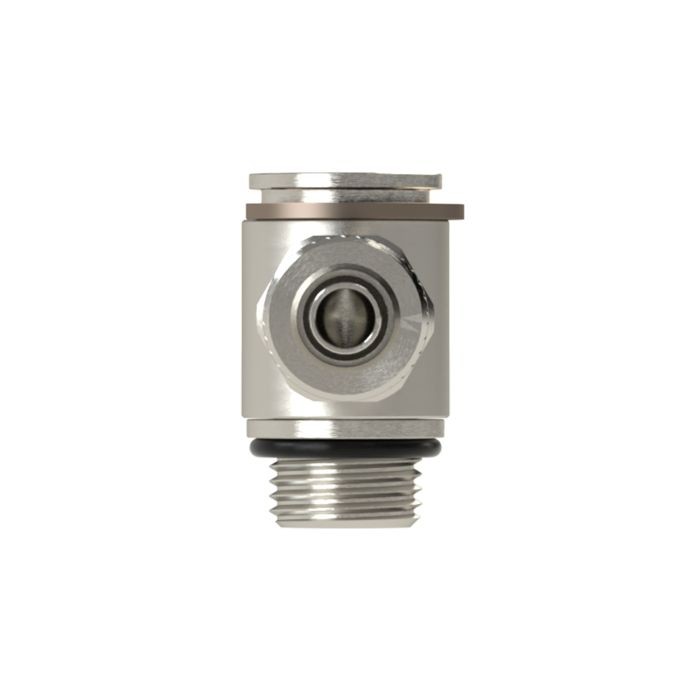

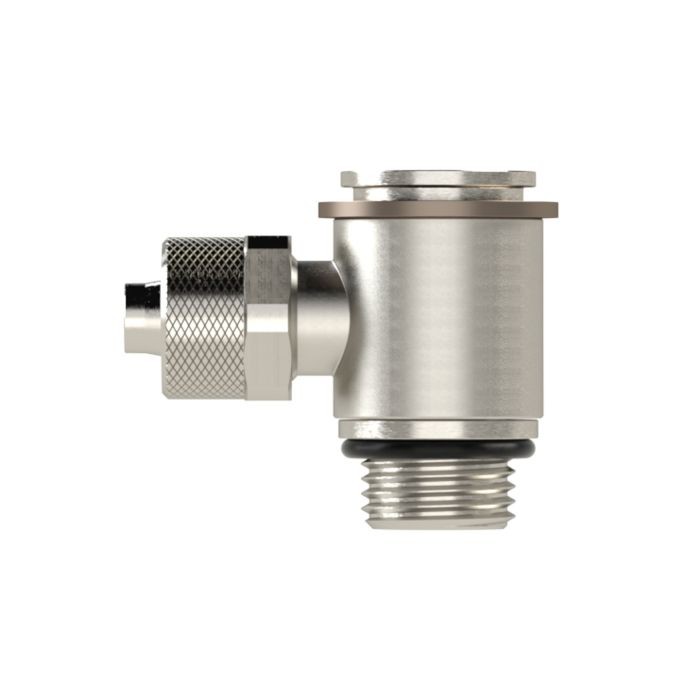

RIEGLER Angled pivot fitting with O-ring, G 3/8 o., for hose 5/10 mm
Type number: 13.638-12
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Winkel-Schwenkverschraubung mit O-Ring, G 3/8 a., für Schlauch 12/10 mm, SW 5, Arbeitsdruck max. 18 bar, Messing vernickelt
| Working pressure max. | 18 bar |
| Material | Nickel-plated brass |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 80 °C |
| Thread | G 3/8 |
| SW | 5 mm |
| for hose | 12/10 mm |
| Hexagon | Inside |

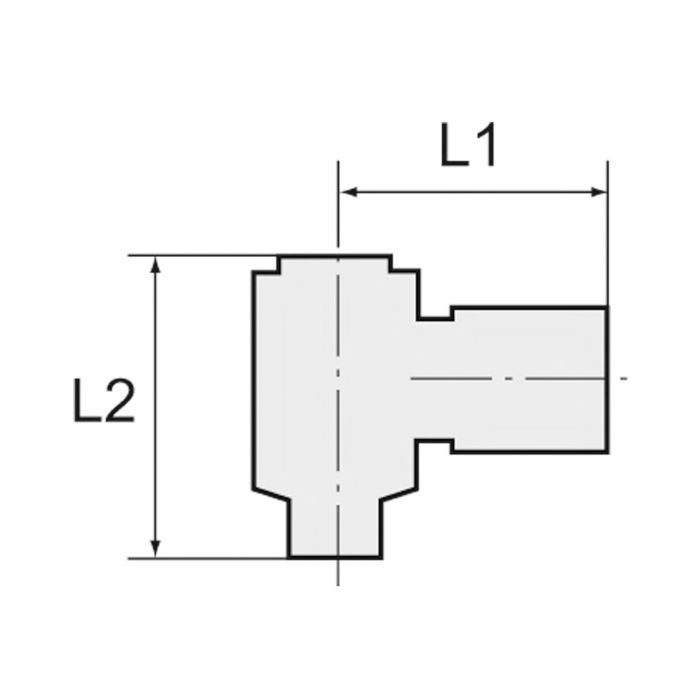

| L1 | 31.5 mm |
| L2 | 36 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| O-ring | NBR |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[110576] RIEGLER Angled pivot fitting with O-ring, G 1/2 o., for hose 10/8 mm](/web/image/product.template/181506/image_128/%5B110576%5D%20RIEGLER%20Angled%20pivot%20fitting%20with%20O-ring%2C%20G%201-2%20o.%2C%20for%20hose%2010-8%20mm?unique=d05a2e3)
|
Type number: 13.612-10 |
9.97 € | |

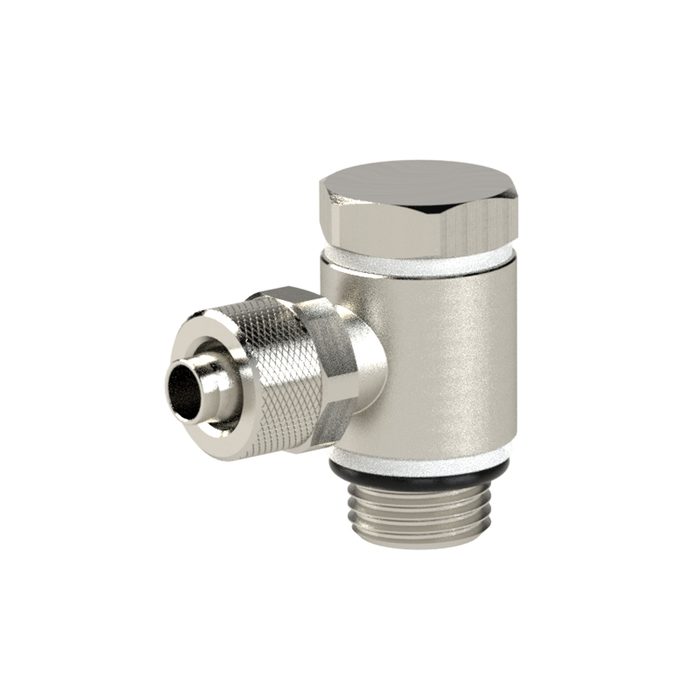

![[110577] RIEGLER Angled pivot fitting with O-ring, G 1/2 o., for hose 12/10 mm](/web/image/product.template/181507/image_128/%5B110577%5D%20RIEGLER%20Angled%20pivot%20fitting%20with%20O-ring%2C%20G%201-2%20o.%2C%20for%20hose%2012-10%20mm?unique=0901dae)
|
