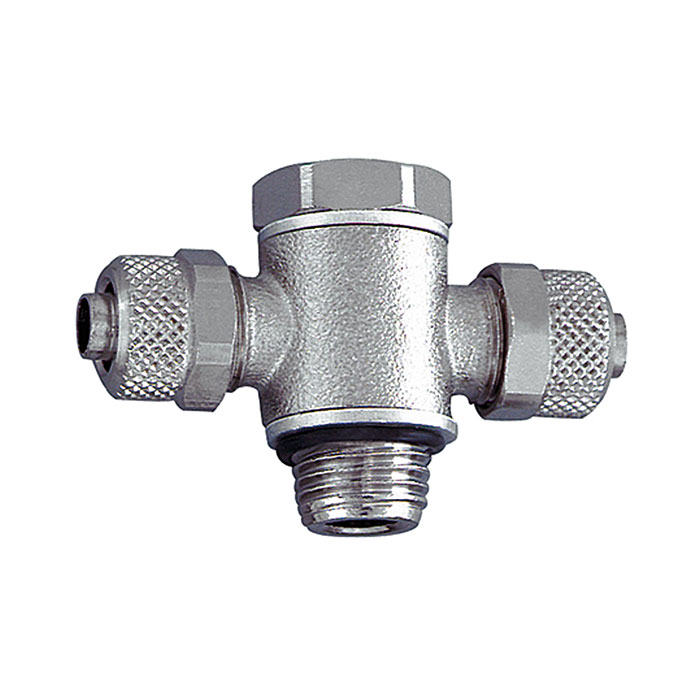

RIEGLER T-pivot fitting, O-ring, G 3/8 o., hose 12/10 nickel-plated brass
Type number: 14.238-12
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER T-swivel fitting made of nickel-plated brass, for pneumatic installation, max. 18 bar - Type 14.238-12
The RIEGLER T-swivel fitting, O-ring, G 3/8 a. Hose 12/10, MS nickel-plated connects compressed air hoses and pipes quickly and securely by simply screwing them in. The housing is made of nickel-plated brass. Designed for a maximum operating pressure of 18 bar. The operating temperature is between -20 °C and 80 °C. G 3/8 connection thread - suitable for common industry standards. Easy installation and removal for flexible pipe routing.
Field of application
Typical areas of application: Compressed air installations and pneumatic systems.
| Working pressure max. | 18 bar |
| Material | Nickel-plated brass |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 80 °C |
| Thread | G 3/8 |
| SW | 20 mm |
| for hose | 12/10 mm |
| L1 | 64 mm |
| L2 | 37 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| O-ring | NBR |
| Class name | EASY |
