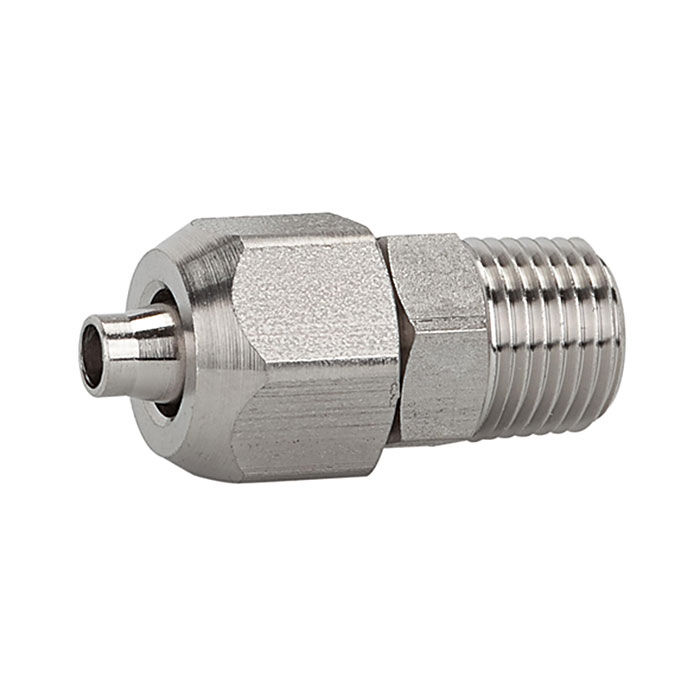

RIEGLER Straight screw-in fitting, R 3/8, for hose 10/8, Stainless steel
Type number: 11.138-10 ESH
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Straight screw-in fitting R 3/8 a. made of stainless steel 1.4404, for pneumatic installation - type 11.138-10 ESH
The RIEGLER straight screw-in fitting R 3/8 a., hose 10/8, ES 1.4404 connects compressed air hoses and pipes quickly and securely by simply screwing them in. The housing is made of stainless steel 1.4404 with purely metallic sealing gaskets. Designed for a maximum operating pressure of 25 bar. The temperature range is between -40 °C and 200 °C. Connection thread R 3/8 - suitable for common industry standards. Simple assembly and disassembly for flexible pipe routing.
Field of application
Typical areas of application: Compressed air installations and pneumatic systems.
| Temperature range min. | -40 °C |
| Temperature range max. | 200 °C |
| Sealing material | purely metallic sealing |
| Working pressure max. | 25 bar |
| Material | Stainless steel 1.4404 |
| Recommended hose | PTFE hose |
| Thread | R 3/8 |
| SW 1 | 16 mm |
| SW 2 | 17 mm |
| for hose | 10/8 mm |
| L1 | 33 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | STAINLESS STEEL |
