RIEGLER T-fitting, rigid, for hose 8/6 mm, POM
Type number: 14.912
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER T-connector for pneumatic installation, max. 10 bar - Type 14.912
The RIEGLER T-connector, rigid, for hose 8/6 mm, POM connects compressed air hoses and pipes quickly and securely by simply screwing them in. The operating pressure range is 0 bar to 10 bar. The temperature range is between -10 °C and 60 °C. Simple assembly and disassembly for flexible line routing.
Field of application
Typical areas of application: Compressed air installations and pneumatic systems.
| Temperature range min. | -10 °C |
| Temperature range max. | 60 °C |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 10 bar |
| for hose | 8/6 mm |

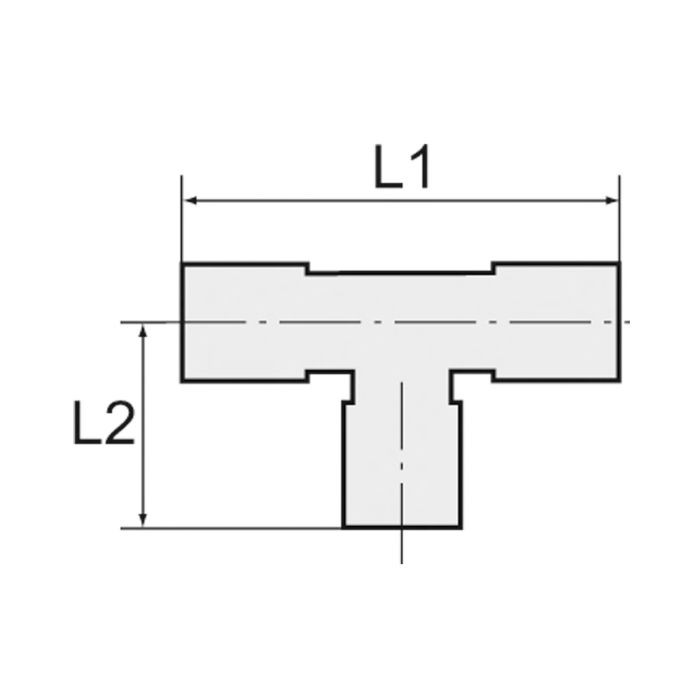

| L1 | 52 mm |
| L2 | 26 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[110746] RIEGLER T-fitting, rigid, for hose 12/9 mm, POM](/web/image/product.template/181676/image_128/%5B110746%5D%20RIEGLER%20T-fitting%2C%20rigid%2C%20for%20hose%2012-9%20mm%2C%20POM?unique=a0aba3a)
|
Type number: 14.913 |
1.42 € | |

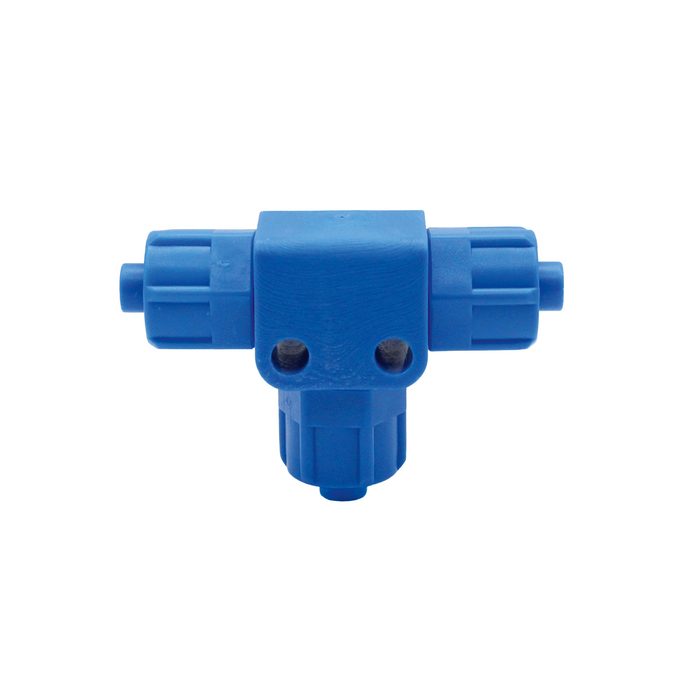

![[110744] RIEGLER T-fitting, rigid, for hose 6/4 mm, POM](/web/image/product.template/181674/image_128/%5B110744%5D%20RIEGLER%20T-fitting%2C%20rigid%2C%20for%20hose%206-4%20mm%2C%20POM?unique=1728f17)
|
